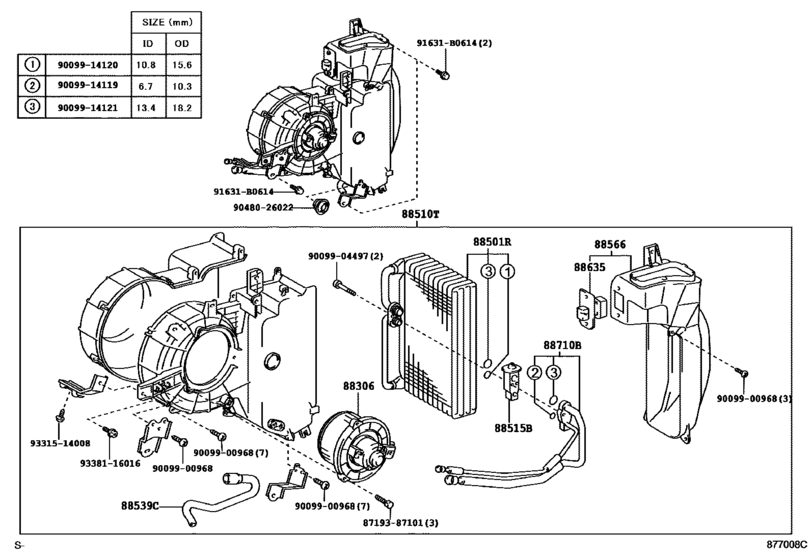

Heating & Air Conditioning - Cooler Unit ([08.2004 - ] ﾘﾔ (0408- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88306
|
88306
87103-58010
Motor Sub-Assy, Blower W/fan(For Rear)
[08.2004 -] AZR6# |
87103-58010 |
— | ||
| replacement | |||||
|
88306
|
88306
87103-58011 Motor Sub-Assy, Blower W/fan(For Rear)[08.2004 -] AZR6# |
87103-58011 |
US $234.12 |
||
|
88501R
|
88501R
88501-28340
Evaporator Sub-Assy (Rear)
[08.2004 -] AZR6# |
88501-28340 |
— | ||
|
88510T
|
88510T
88500-28030
Unit Assy, Cooling (Rear)
[08.2004 -] AZR6# |
88500-28030 |
— | ||
|
88515B
|
88515B
88515-28170 Valve, Rear Cooling Unit Expansion[08.2004 -] AZR6# |
88515-28170 |
US $139.78 |
||
| replacement | |||||
|
88515B
|
88515B
88515-28190 Valve, Rear Cooling Unit Expansion[08.2004 -] AZR6# |
88515-28190 |
US $113.57 |
||
|
88539C
|
88539C
88539-28260
Hose, Cooler Unit Drain, No.2
[08.2004 -] AZR6# |
88539-28260 |
— | ||
|
88566
|
88566
88566-28210
Duct, Cooler Air, No.1
[08.2004 -] AZR6# |
88566-28210 |
— | ||
|
88635
|
88635
87138-28240
Resistor, Cooler Unit Blower
[08.2004 -] AZR6# |
87138-28240 |
— | ||
|
88710B
|
88710B
88710-2R740 Tube Assy, Air Conditioner[08.2004 -] AZR6# |
88710-2R740 |
US $199.47 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.88 |
||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904497
|
9009904497
90099-04497 BOLT |
90099-04497 |
from US $2.57 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.77 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.16 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $2.72 |
||
