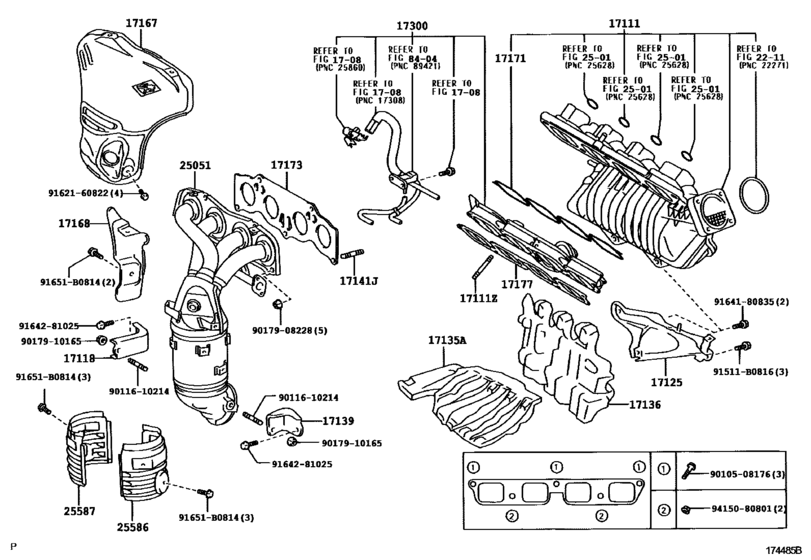

Manifold ([08.2005 - ] (0508- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-28031 Manifold, Intake[08.2004 -] 1AZFSE..AZR6# |
17101-28031 |
US $327.60 |
||
|
17111Z
|
17111Z
90126-08021 Bolt, Stud(For Intake Manifold To Cylinder Head)[08.2004 -] 1AZFSE..AZR6# |
90126-08021 |
US $16.57 |
||
|
17118
|
17118
17118-28030 Stay, Manifold[08.2004 -] 1AZFSE..AZR6# |
17118-28030 |
US $20.53 |
||
|
17125
|
17125
17125-28010 Stay, Surge Tank, No.1[08.2004 -] 1AZFSE..AZR6# |
17125-28010 |
US $55.33 |
||
|
17135A
|
17135A
17135-28020 Insulator, Intake Manifold, No.1[08.2004 -] 1AZFSE..AZR6# |
17135-28020 |
US $58.94 |
||
|
17136
|
17136
17136-28010 Insulator, Intake Manifold, No.2[08.2004 -] 1AZFSE..AZR6# |
17136-28010 |
US $89.51 |
||
|
17139
|
17139
17139-28020 Stay, Manifold, No.2[08.2004 -] 1AZFSE..AZR6# |
17139-28020 |
US $16.45 |
||
|
17141J
|
17141J
90126-08037 Bolt, Stud(For Oil Strainer)[08.2004 -] 1AZFSE..AZR6# |
90126-08037 |
from US $3.90 |
||
|
17167
|
17167
17167-28031 Insulator, Exhaust Manifold Heat, No.1[08.2004 - 08.2005] 1AZFSE..AZR6# |
17167-28031 |
US $120.85 |
||
|
17167
|
17167
17167-28070 Insulator, Exhaust Manifold Heat, No.1[08.2005 -] 1AZFSE..AZR6# |
17167-28070 |
US $112.11 |
||
|
17168
|
17168
17168-28011 Insulator, Exhaust Manifold Heat, No.2[08.2005 - 06.2007] 1AZFSE..AZR6# |
17168-28011 |
US $31.62 |
||
|
17168
|
17168
17168-28021 Insulator, Exhaust Manifold Heat, No.2[08.2004 - 08.2005] 1AZFSE..AZR6# |
17168-28021 |
US $44.26 |
||
|
17171
|
17171
17171-28010 Gasket, Intake To Exhaust Manifold[08.2004 -] 1AZFSE..AZR6# |
17171-28010 |
US $9.28 |
||
|
17173
|
17173
17173-28010 Gasket, Exhaust Manifold To Head[08.2004 -] 1AZFSE..AZR6# |
17173-28010 |
from US $20.24 |
||
|
17177
|
17177
17177-28020 Gasket, Intake Manifold To Head, No.1[08.2004 -] 1AZFSE..AZR6# |
17177-28020 |
US $13.12 |
||
|
17300
|
17300
17300-28040 Valve Assy, Intake Air Control[08.2004 -] 1AZFSE..AZR6# |
17300-28040 |
US $765.86 |
||
|
25051
|
25051
25051-28200 Converter Sub-Assy, Exhaust Manifold[08.2004 - 08.2005] 1AZFSE..AZR6# |
25051-28200 |
US $1,402.13 |
||
| replacements | |||||
|
25051
|
25051
25051-28203 Converter Sub-Assy, Exhaust Manifold[08.2004 - 08.2005] 1AZFSE..AZR6# |
25051-28203 |
US $1,400.67 |
||
|
25051
|
25051
91621-J0814 Bolt (For Transmission Control Cable Bracket)[08.2004 - 08.2005] 1AZFSE..AZR6# |
91621-J0814 |
from US $0.74 |
||
|
25051
|
25051
25051-28380 Converter Sub-Assy, Exhaust Manifold[08.2005 - 08.2006] 1AZFSE..AZR6# |
25051-28380 |
US $1,272.54 |
||
| replacements | |||||
|
25051
|
25051
25051-28382 Converter Sub-Assy, Exhaust Manifold[08.2005 - 08.2006] 1AZFSE..AZR6# |
25051-28382 |
US $1,061.42 |
||
|
25051
|
25051
91621-J0814 Bolt (For Transmission Control Cable Bracket)[08.2005 - 08.2006] 1AZFSE..AZR6# |
91621-J0814 |
from US $0.74 |
||
|
25051
|
25051
25051-28381 Converter Sub-Assy, Exhaust Manifold[08.2006 - 06.2007] 1AZFSE..AZR6# |
25051-28381 |
US $1,274 |
||
| replacements | |||||
|
25051
|
25051
25051-28382 Converter Sub-Assy, Exhaust Manifold[08.2006 - 06.2007] 1AZFSE..AZR6# |
25051-28382 |
US $1,061.42 |
||
|
25051
|
25051
91621-J0814 Bolt (For Transmission Control Cable Bracket)[08.2006 - 06.2007] 1AZFSE..AZR6# |
91621-J0814 |
from US $0.74 |
||
|
25586
|
25586
25586-28031 Insulator, Manifold Converter, No.1[08.2004 - 06.2007] 1AZFSE..AZR6# |
25586-28031 |
US $37.56 |
||
|
25587
|
25587
25587-28041 Insulator, Manifold Converter, No.2[08.2004 - 06.2007] 1AZFSE..AZR6# |
25587-28041 |
US $28.68 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9010508176
|
9010508176
90105-08176 BOLT |
90105-08176 |
US $2.56 |
||
|
9011610214
|
9011610214
90116-10214 BOLT STUD |
90116-10214 |
US $1.60 |
||
|
9017908228
|
9017908228
90179-08228 NUT |
90179-08228 |
from US $0.88 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $1.03 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.44 |
||
|
9164180835
|
9164180835
91641-80835 Bolt, Compressor, No.1 |
91641-80835 |
US $2.24 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.28 |
||
