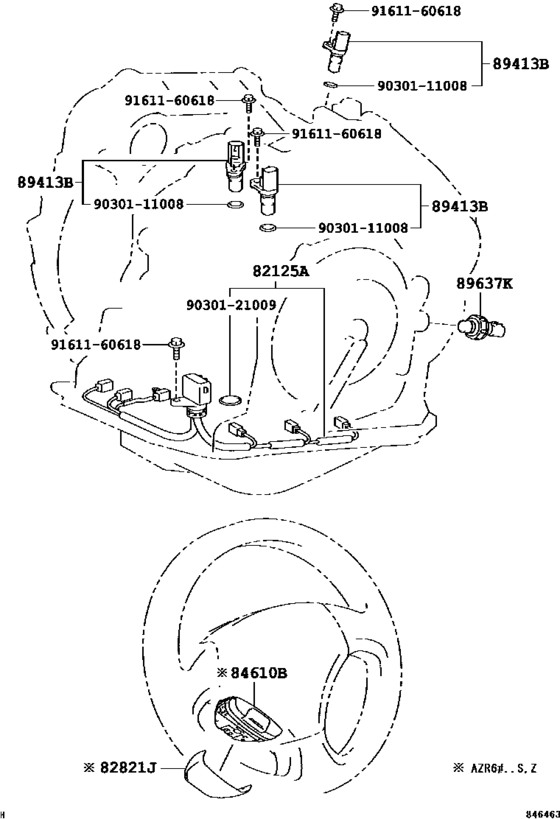

Overdrive & Electronic Controlled Transmission ([08.2004 - ] (0408- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-44020 Wire, Transmission[08.2004 - 06.2007] AZR6# |
82125-44020 |
US $18.92 |
||
|
82821J
|
82821J
82821-44020 Cover, Connector[08.2004 -] AZR6#..S,Z |
82821-44020 |
US $9.03 |
||
|
84610B
|
84610B
84610-44010 Switch Assy, Transmission Shift, Main[08.2004 - 06.2007] AZR6#..S,Z |
84610-44010 |
US $49.65 |
||
|
89413B
|
89413B
89413-60020
Sensor, Speed
[08.2004 - 06.2007] AZR6# |
89413-60020 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-60021 SENSOR TRANSMISSION[08.2004 - 06.2007] AZR6# |
89413-60021 |
from US $60.95 |
||
|
89637K
|
89637K
89637-63010 Sensor, Oil Pressure[08.2004 - 06.2007] AZR6# |
89637-63010 |
from US $84.36 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.96 |
||
|
9030121009
|
9030121009
90301-21009 Ring, O(For Transmission Wire) |
90301-21009 |
from US $2.72 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $1.92 |
||
