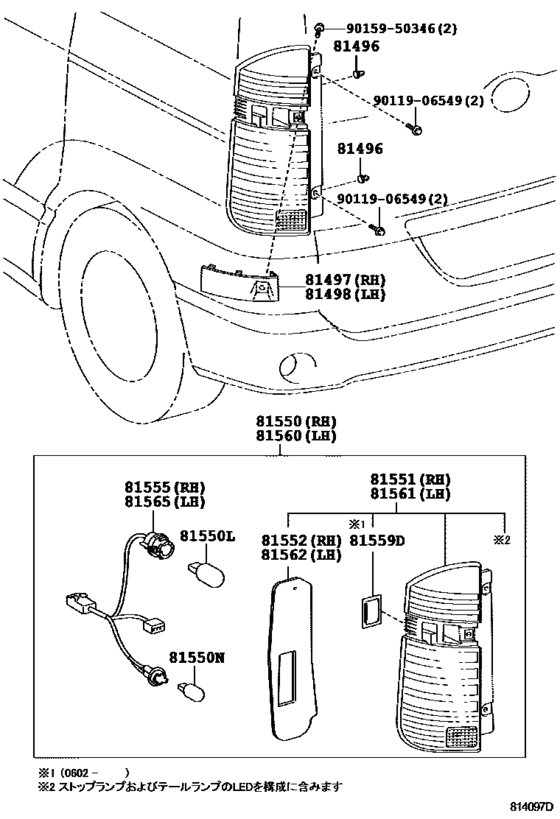

Rear Combination Lamp ([08.2004 - ] (0408- )VOXY) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-28010 Guide, Rear Combination Lamp[08.2004 -] AZR6# |
81496-28010 |
US $3.20 |
||
|
81497
|
81497
81497-28040-A1 Cover, Rear Combination Lamp, Rh[08.2004 - 06.2007] AZR6# WHITE PM.,042 |
81497-28040-A1 |
US $32.91 |
||
|
81497
|
81497
81497-28040-B0 Cover, Rear Combination Lamp, Rh[08.2004 - 06.2007] AZR6# SILVER ME.,1D4 |
81497-28040-B0 |
US $32.91 |
||
|
81497
|
81497
81497-28040-B1 Cover, Rear Combination Lamp, Rh[08.2004 - 06.2007] AZR6#..07S,08S DARK GRAY M.M.,1E2 |
81497-28040-B1 |
US $32.91 |
||
|
81497
|
81497
81497-28040-B2 Cover, Rear Combination Lamp, Rh[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A),GRAY.ME,1D2 |
81497-28040-B2 |
US $32.76 |
||
|
81497
|
81497
81497-28040-C0 Cover, Rear Combination Lamp, Rh[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A),BLACK,202; AZR6#..NOAH..08S..X LIMITED *(P),BLACK,202 |
81497-28040-C0 |
US $32.76 |
||
|
81497
|
81497
81497-28040-J2 Cover, Rear Combination Lamp, Rh[08.2004 - 06.2007] AZR6#..S,TRASX,X,Z DARK BLUE MC.,8P8 |
81497-28040-J2 |
US $32.91 |
||
|
81498
|
81498
81498-28040-A1 Cover, Rear Combination Lamp, Lh[08.2004 - 06.2007] AZR6# WHITE PM.,042 |
81498-28040-A1 |
US $32.91 |
||
|
81498
|
81498
81498-28040-B0 Cover, Rear Combination Lamp, Lh[08.2004 - 06.2007] AZR6# SILVER ME.,1D4 |
81498-28040-B0 |
US $32.91 |
||
|
81498
|
81498
81498-28040-B1 Cover, Rear Combination Lamp, Lh[08.2004 - 06.2007] AZR6#..07S,08S DARK GRAY M.M.,1E2 |
81498-28040-B1 |
US $32.91 |
||
|
81498
|
81498
81498-28040-B2 Cover, Rear Combination Lamp, Lh[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A),GRAY.ME,1D2 |
81498-28040-B2 |
US $32.76 |
||
|
81498
|
81498
81498-28040-C0 Cover, Rear Combination Lamp, Lh[04.2005 -] AZR6#..Z ｷﾗﾒｷ *(A),BLACK,202; AZR6#..NOAH..08S..X LIMITED *(P),BLACK,202 |
81498-28040-C0 |
US $32.76 |
||
|
81498
|
81498
81498-28040-J2 Cover, Rear Combination Lamp, Lh[08.2004 - 06.2007] AZR6#..S,TRASX,X,Z DARK BLUE MC.,8P8 |
81498-28040-J2 |
US $32.91 |
||
|
81550
|
81550
81550-28350 Lamp Assy, Rear Combination, Rh[08.2004 - 02.2006] AZR6#..VOXY |
81550-28350 |
US $435.34 |
||
| replacement | |||||
|
81550
|
81550
81550-28460 Lamp Assy, Rear Combination, Rh[08.2004 - 02.2006] AZR6#..VOXY |
81550-28460 |
US $435.34 |
||
|
81550
|
81550
81550-28460 Lamp Assy, Rear Combination, Rh[02.2006 - 06.2007] AZR6#..VOXY |
81550-28460 |
US $435.34 |
||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[08.2004 - 06.2007] AZR6# １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.60 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.2004 - 06.2007] AZR6# １２Ｖ １６Ｗ |
90981-11059 |
from US $3.20 |
||
|
81551
|
81551
81551-28350 Lens, Rear Combination Lamp, Rh[08.2004 - 02.2006] AZR6#..VOXY |
81551-28350 |
US $374.19 |
||
| replacement | |||||
|
81551
|
81551
81551-28460 Lens, Rear Combination Lamp, Rh[08.2004 - 02.2006] AZR6#..VOXY |
81551-28460 |
US $382.20 |
||
|
81551
|
81551
81551-28460 Lens, Rear Combination Lamp, Rh[02.2006 -] AZR6#..VOXY |
81551-28460 |
US $382.20 |
||
|
81552
|
81552
81554-28350 Gasket, Rear Combination Lamp Lens, Rh[08.2004 -] AZR6#..VOXY |
81554-28350 |
US $19.31 |
||
|
81555
|
81555
81555-28350 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2004 -] AZR6#..VOXY |
81555-28350 |
US $33.20 |
||
|
81559D
|
81559D
81559-28450 Desiccant, Rear Combination Lamp[02.2006 -] AZR6# |
81559-28450 |
US $6.55 |
||
|
81560
|
81560
81560-28350 Lamp Assy, Rear Combination, Lh[08.2004 - 02.2006] AZR6#..VOXY |
81560-28350 |
US $435.34 |
||
| replacement | |||||
|
81560
|
81560
81560-28460 Lamp Assy, Rear Combination, Lh[08.2004 - 02.2006] AZR6#..VOXY |
81560-28460 |
US $435.34 |
||
|
81560
|
81560
81560-28460 Lamp Assy, Rear Combination, Lh[02.2006 - 06.2007] AZR6#..VOXY |
81560-28460 |
US $435.34 |
||
|
81561
|
81561
81561-28350 Lens, Rear Combination Lamp, Lh[08.2004 - 02.2006] AZR6#..VOXY |
81561-28350 |
US $374.19 |
||
| replacement | |||||
|
81561
|
81561
81561-28460 Lens, Rear Combination Lamp, Lh[08.2004 - 02.2006] AZR6#..VOXY |
81561-28460 |
US $382.20 |
||
|
81561
|
81561
81561-28460 Lens, Rear Combination Lamp, Lh[02.2006 -] AZR6#..VOXY |
81561-28460 |
US $382.20 |
||
|
81562
|
81562
81564-28350 Gasket, Rear Combination Lamp Lens, Lh[08.2004 -] AZR6#..VOXY |
81564-28350 |
US $19.31 |
||
|
81565
|
81565
81555-28350 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2004 -] AZR6#..VOXY |
81555-28350 |
US $33.20 |
||
|
9011906549
|
9011906549
90119-06549 BOLT WWASHER |
90119-06549 |
US $1.92 |
||
|
9015950346
|
9015950346
90159-50346 SCREW |
90159-50346 |
from US $0.70 |
||
