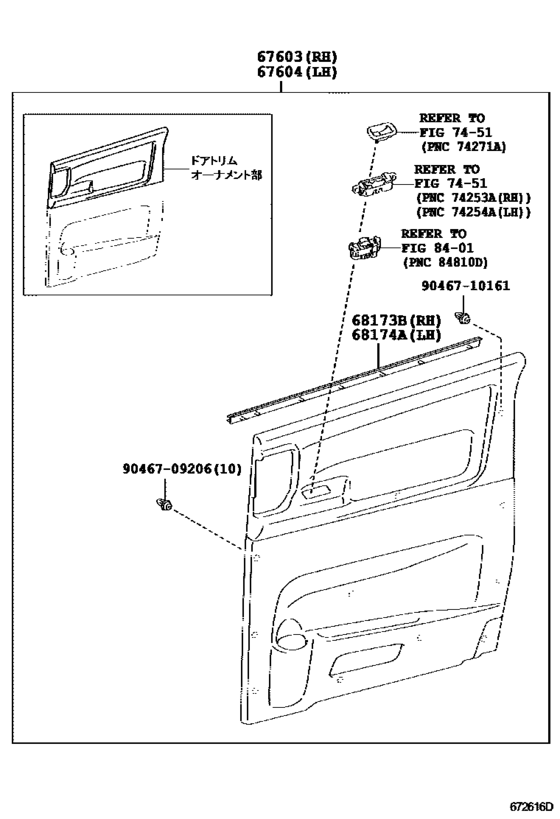

Rear Door Panel & Glass ([11.2001 - ] (0111- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-28310-B0 Board Sub-Assy, Rear Door Trim, Rh[08.2004 - 06.2007] AZR6#..S,TRASX,YY,Z DK.GRAY,TRIM1# |
67630-28310-B0 |
US $439.71 |
||
|
67604
|
67604
67640-28280-B0 Board Sub-Assy, Rear Door Trim, Lh[08.2004 - 06.2007] AZR6#..S,TRASX,YY,Z DK.GRAY,TRIM1# |
67640-28280-B0 |
US $439.71 |
||
|
68173B
|
68173B
68173-28020 Weatherstrip, Rear Door Glass, Inner Rh[08.2004 - 06.2007] AZR6# |
68173-28020 |
US $53.14 |
||
|
68174A
|
68174A
68174-28030 Weatherstrip, Rear Door Glass, Inner Lh[08.2004 - 06.2007] AZR6# |
68174-28030 |
US $53.14 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.49 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
