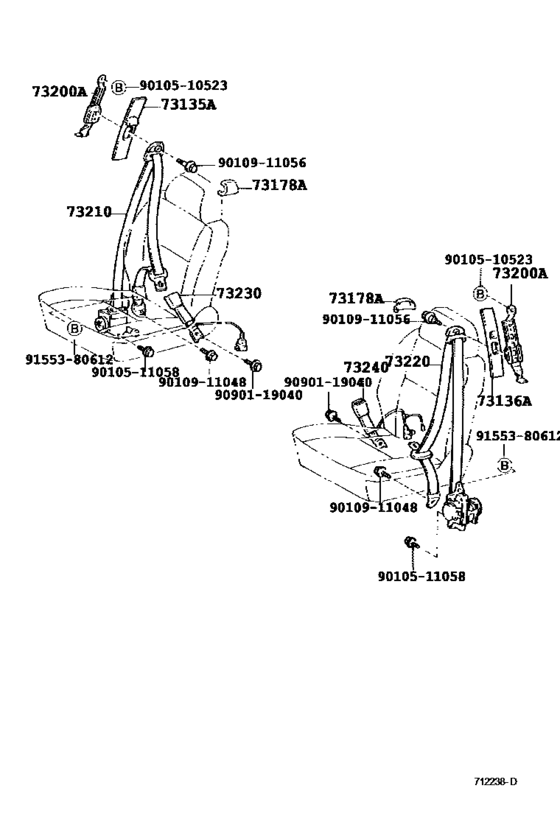

Seat Belt ([11.2001 - ] ﾌﾛﾝﾄ ｼｰﾄ (0111- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135A
|
73135A
73135-28020-B0 Cover, Shoulder Belt Anchorage Plate[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
73135-28020-B0 |
US $15.43 |
||
|
73135A
|
73135A
73237-28010-B0 Cover, Shoulder Belt Anchor, Rh[08.2004 - 06.2007] AZR6# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1# |
73237-28010-B0 |
US $16.89 |
||
|
73136A
|
73136A
73135-28020-B0 Cover, Shoulder Belt Anchorage Plate[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
73135-28020-B0 |
US $15.43 |
||
|
73136A
|
73136A
73237-28010-B0 Cover, Shoulder Belt Anchor, Rh[08.2004 - 06.2007] AZR6# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1# |
73237-28010-B0 |
US $16.89 |
||
|
73178A
|
73178A
73178-33020-B3 Cap, Seat Belt Anchor Cover[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
73178-33020-B3 |
from US $4.78 |
||
|
73200A
|
73200A
73200-52010-B0 Adjuster Assy, Front Shoulder Belt Anchor[08.2004 - 06.2007] AZR6# LT.GRAY,TRIM1# |
73200-52010-B0 |
US $44.99 |
||
|
73210
|
73210
73210-28740-C0 Belt Assy, Front Seat Outer, Rh[08.2004 - 06.2007] AZR6# BLACK,TRIM1# |
73210-28740-C0 |
US $521.25 |
||
|
73220
|
73220
73220-28700-C0 Belt Assy, Front Seat Outer, Lh[08.2004 - 06.2007] AZR6# BLACK,TRIM1# |
73220-28700-C0 |
US $521.25 |
||
|
73230
|
73230
73230-28320-B0 Belt Assy, Front Seat Inner, Rh[08.2004 - 06.2007] AZR6# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),DK.GRAY,TRIM1# |
73230-28320-B0 |
US $82.12 |
||
|
73230
|
73230
73230-28340-B0 Belt Assy, Front Seat Inner, Rh[08.2004 - 06.2007] AZR6# DK.GRAY,TRIM1# |
73230-28340-B0 |
US $85.84 |
||
|
73240
|
73240
73230-28410-B0 Belt Assy, Front Seat Inner, Lh[08.2004 - 06.2007] AZR6# DK.GRAY,TRIM1# |
73230-28410-B0 |
US $77.17 |
||
|
9010510523
|
9010510523
90105-10523 BOLT FLANGE |
90105-10523 |
US $1.60 |
||
| replacement | |||||
|
9010510523
|
9010510523
90105-A0186 New Genuine Part |
90105-A0186 |
US $2.97 |
||
|
9010511058
|
9010511058
90105-11058 BOLT FLANGE |
90105-11058 |
from US $0.99 |
||
|
9010911048
|
9010911048
90109-11048 New Genuine Part |
90109-11048 |
US $4.80 |
||
|
9010911056
|
9010911056
90109-11056 New Genuine Part |
90109-11056 |
US $2.33 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $1.92 |
||
| replacement | |||||
|
9090119040
|
9090119040
90084-11055 New Genuine Part |
90084-11055 |
US $6.96 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
||
