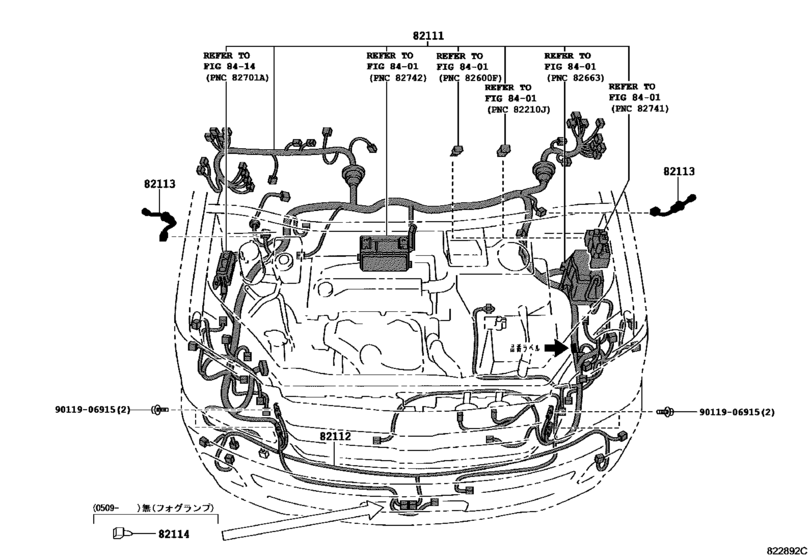

Wiring & Clamp ([11.2001 - ] ｴﾝｼﾞﾝ ﾙ-ﾑ (0111- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- AZR65
- grade
- Z
- ENGINE
- 1AZFSE
- Model
- VOXY
- From
- 08.2004
- To
- 06.2007
- Gear Shift Type
- CVHC
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-28D40 Wire, Engine Room Main[08.2004 - 08.2005] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D40 |
82111-28D40 |
US $2,256.80 |
||
|
82111
|
82111
82111-28D41 Wire, Engine Room Main[08.2005 -] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D41 |
82111-28D41 |
US $2,256.80 |
||
|
82111
|
82111
82111-28D60 Wire, Engine Room Main[08.2004 - 08.2005] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D60 |
82111-28D60 |
US $2,504.32 |
||
|
82111
|
82111
82111-28D61 Wire, Engine Room Main[08.2005 -] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D61 |
82111-28D61 |
US $2,504.32 |
||
|
82111
|
82111
82111-28D70 Wire, Engine Room Main[08.2004 - 08.2005] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D70 |
82111-28D70 |
US $2,504.32 |
||
|
82111
|
82111
82111-28D71 Wire, Engine Room Main[08.2005 -] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D71 |
82111-28D71 |
US $2,504.32 |
||
|
82111
|
82111
82111-28D80 Wire, Engine Room Main[08.2004 - 08.2005] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D80 |
82111-28D80 |
US $2,737.28 |
||
|
82111
|
82111
82111-28D81 Wire, Engine Room Main[08.2005 -] AZR65..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-28D81 |
82111-28D81 |
US $2,737.28 |
||
|
82112
|
82112
82112-28320 Wire, Engine Room, No.2[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
82112-28320 |
US $57.51 |
||
|
82112
|
82112
82112-28330 Wire, Engine Room, No.2[08.2004 - 06.2007] AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
82112-28330 |
US $68.72 |
||
|
82113
|
82113
82113-28040 Wire, Engine Room, No.3[08.2004 -] AZR6#..S,Z |
82113-28040 |
US $11.79 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
