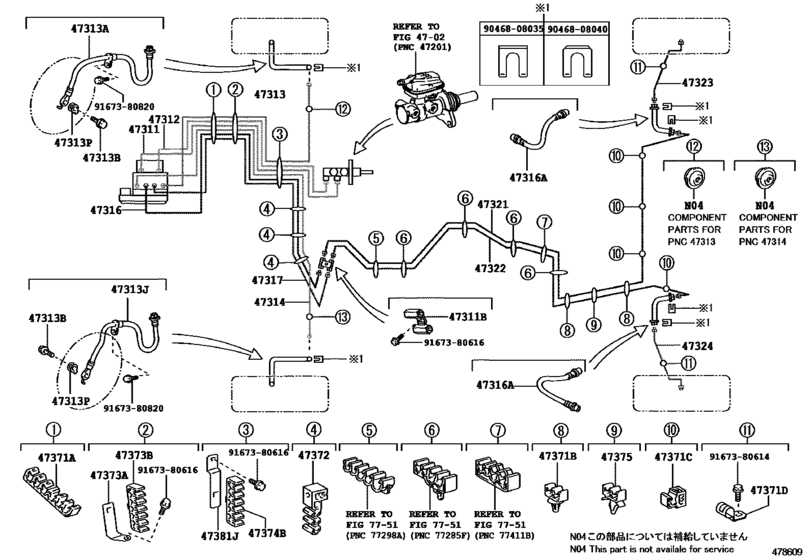

Brake Tube & Clamp ([12.2012 - ] (1212- )IDN) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2012 - 2016
- Sales region
- General
- Frame
- ZRR70
- grade
- E
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- IDN
- Model
- NOAH
- From
- 12.2012
- To
- 12.2016
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-28730 Tube, Front Brake, No.1[12.2012 -] ZRR70..IDN |
47311-28730 |
US $12.08 |
||
|
47311B
|
47311B
90412-10260 Way, No.1(For Front Brake Tube)[04.2010 -] ZRR70..IDN |
90412-10260 |
US $14.52 |
||
|
47312
|
47312
47312-28530 Tube, Front Brake, No.2[12.2012 -] ZRR70..IDN |
47312-28530 |
US $12.08 |
||
|
47313
|
47313
47313-28480 Tube, Front Brake, No.3[12.2012 -] ZRR70..IDN |
47313-28480 |
US $10.19 |
||
|
47313A
|
47313A
90947-02E82 Hose, Flexible, No.1(For Front)[04.2010 -] ZRR70..IDN |
90947-02E82 |
US $34.61 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[04.2010 -] ZRR70..IDN |
90401-10058 |
from US $3.94 |
||
|
47313J
|
47313J
90947-02E83 Hose, Flexible, No.2(For Front)[04.2010 -] ZRR70..IDN |
90947-02E83 |
US $34.61 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[04.2010 -] ZRR70..IDN |
47389-50020 |
from US $4.91 |
||
|
47314
|
47314
47314-28400 Tube, Front Brake, No.4[12.2012 -] ZRR70..IDN |
47314-28400 |
US $20.24 |
||
|
47316
|
47316
47316-28240 Tube, Front Brake, No.6[12.2012 -] ZRR70..IDN |
47316-28240 |
US $18.64 |
||
|
47316A
|
47316A
90947-02E81 Hose, Flexible(For Rear Brake Tube)[04.2010 -] ZRR70..IDN |
90947-02E81 |
US $19.66 |
||
|
47317
|
47317
47317-28280 Tube, Front Brake, No.7[12.2012 -] ZRR70..IDN |
47317-28280 |
US $18.64 |
||
|
47321
|
47321
47321-28570 Tube, Rear Brake, No.1[04.2010 - 12.2016] ZRR70 |
47321-28570 |
US $77.11 |
||
|
47322
|
47322
47322-28360 Tube, Rear Brake, No.2[04.2010 - 12.2016] ZRR70 |
47322-28360 |
US $63.34 |
||
|
47323
|
47323
47323-28370 Tube, Rear Brake, No.3[12.2012 -] ZRR70..IDN |
47323-28370 |
US $16.84 |
||
|
47324
|
47324
47324-28270 Tube, Rear Brake, No.4[12.2012 -] ZRR70..IDN |
47324-28270 |
US $16.84 |
||
|
47371A
|
47371A
90464-00890 Clamp, Brake Tube, No.1[04.2010 -] ZRR70..IDN |
90464-00890 |
US $4.08 |
||
|
47371B
|
47371B
90469-07020 Clamp, Brake Tube, No.6[04.2010 - 12.2016] ZRR70 |
90469-07020 |
US $3.58 |
||
|
47371C
|
47371C
90949-01C82 Clamp(For Clutch Master Cylinder Tube)[04.2010 - 12.2016] ZRR70 |
90949-01C82 |
from US $1.79 |
||
|
47371D
|
47371D
90461-08694 Clamp, Brake Tube, No.1[04.2010 -] ZRR70..IDN |
90461-08694 |
US $3.40 |
||
|
47372
|
47372
90949-01D02 Clamp, Brake Tube, No.2[04.2010 -] ZRR70..IDN |
90949-01D02 |
from US $2.73 |
||
|
47373A
|
47373A
90949-01C65 Bracket, Tube Clamp[04.2010 -] ZRR70..IDN |
90949-01C65 |
US $2.18 |
||
|
47373B
|
47373B
90464-00902 Clamp, Brake Tube, No.3[04.2010 -] ZRR70..IDN |
90464-00902 |
US $2.89 |
||
|
47374B
|
47374B
90464-00902 Clamp, Brake Tube, No.3[04.2010 -] ZRR70..IDN |
90464-00902 |
US $2.89 |
||
|
47375
|
47375
90469-07019 Clamp, Brake Tube, No.1[04.2010 - 12.2016] ZRR70 |
90469-07019 |
US $3.58 |
||
|
47381J
|
47381J
90949-02008 Bracket, Brake Tube Clamp, No.2[04.2010 -] ZRR70..IDN |
90949-02008 |
US $2.48 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
||
|
9167380614
|
9167380614
91673-80614 BOLT, FLANGE W/WASER |
91673-80614 |
US $1.08 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
