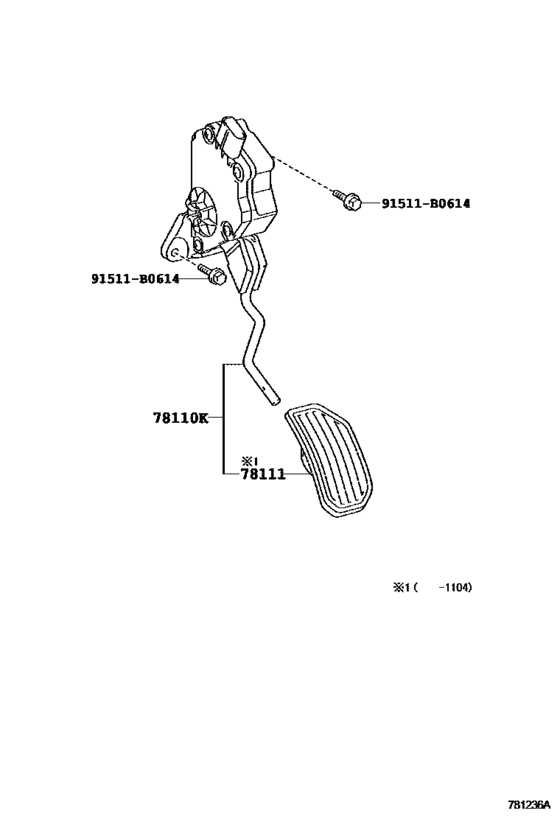

Accelerator Link ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110K
|
78110K
78110-28030 Sensor Assy, Accelerator Pedal[04.2010 - 04.2011] ZRR70 |
78110-28030 |
from US $96.88 |
||
| replacement | |||||
|
78110K
|
78110K
78110-28032 Sensor Assy, Accelerator Pedal[04.2010 - 04.2011] ZRR70 |
78110-28032 |
US $158.70 |
||
|
78110K
|
78110K
78110-28031 Sensor Assy, Accelerator Pedal[05.2011 - 07.2014] ZRR70 |
78110-28031 |
US $101.92 |
||
| replacement | |||||
|
78110K
|
78110K
78110-28032 Sensor Assy, Accelerator Pedal[05.2011 - 07.2014] ZRR70 |
78110-28032 |
US $158.70 |
||
|
78111
|
78111
78111-42010 Pedal, Accelerator[04.2010 - 04.2011] ZRR70 |
78111-42010 |
US $10.05 |
||
| replacement | |||||
|
78111
|
78111
78111-12150 Pedal, Accelerator[04.2010 - 04.2011] ZRR70 |
78111-12150 |
US $11.36 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
