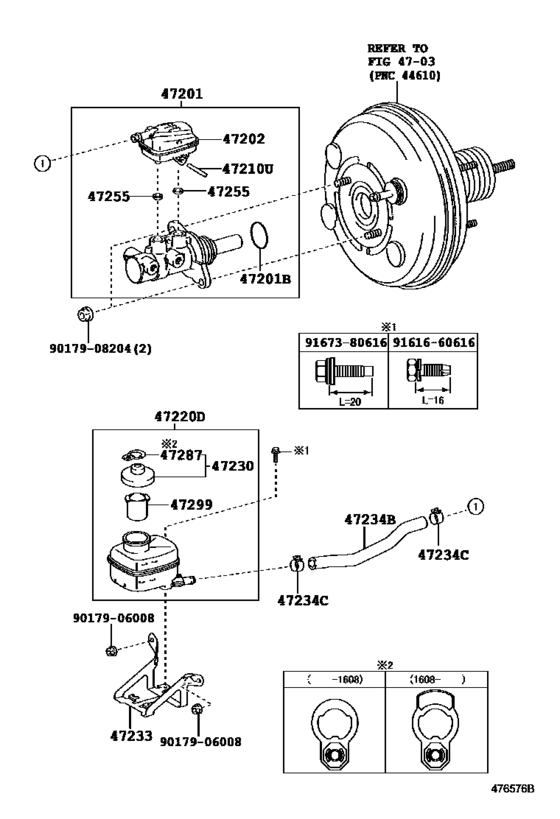

Brake Master Cylinder ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-28710
Cylinder Sub-Assy, Brake Master
[04.2010 - 02.2012] ZRR70 |
47201-28710 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-28712 Cylinder Sub-Assy, Brake Master[04.2010 - 02.2012] ZRR70 |
47201-28712 |
US $503.88 |
||
|
47201
|
47201
47201-28711
Cylinder Sub-Assy, Brake Master
[03.2012 - 04.2012] ZRR70 |
47201-28711 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-28712 Cylinder Sub-Assy, Brake Master[03.2012 - 04.2012] ZRR70 |
47201-28712 |
US $503.88 |
||
|
47201
|
47201
47201-28712 Cylinder Sub-Assy, Brake Master[05.2012 -] ZRR70 |
47201-28712 |
US $503.88 |
||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[05.2012 - 01.2014] ZRR70..GEN |
90015-AH002 |
US $3.58 |
||
|
47202
|
47202
47220-28330 Reservoir Sub-Assy, Brake Master Cylinder[04.2010 - 01.2014] ZRR70..GEN |
47220-28330 |
US $12.23 |
||
|
47210U
|
47210U
90029-15803 Ring Pin, Brake Master Cylinder[05.2012 - 01.2014] ZRR70..GEN |
90029-15803 |
US $1.05 |
||
|
47220D
|
47220D
47220-28320 Reservoir Assy, Brake Master Cylinder[04.2010 - 01.2014] ZRR70..GEN |
47220-28320 |
US $96.10 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[04.2010 - 01.2014] ZRR70..GEN |
47230-20140 |
from US $6.60 |
||
|
47233
|
47233
47233-28160 Bracket, Reservoir[04.2010 - 01.2014] ZRR70..GEN |
47233-28160 |
US $11.21 |
||
|
47234B
|
47234B
47234-28200 Tube, Reservoir, No.1[04.2010 - 01.2014] ZRR70..GEN |
47234-28200 |
US $5.10 |
||
|
47234C
|
47234C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[04.2010 - 04.2013] ZRR70 |
96133-41500 |
from US $2.32 |
||
|
47234C
|
47234C
96136-41801 Clip(For Fuel Vapor Feed Hose, No.2)[05.2013 - 01.2014] ZRR70..GEN |
96136-41801 |
from US $2.87 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[05.2012 - 01.2014] ZRR70..GEN |
90029-48001 |
US $6.45 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[04.2010 - 08.2016] ZRR70 |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-24010 Strainer, Brake Master Cylinder Reservoir[04.2010 - 01.2014] ZRR70..GEN |
47299-24010 |
US $9.68 |
||
|
9017906008
|
9017906008
90179-06008 Nut, Rear Wiper Link Pivot, No.1 |
90179-06008 |
US $0.73 |
||
| replacement | |||||
|
9017906008
|
9017906008
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.61 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
