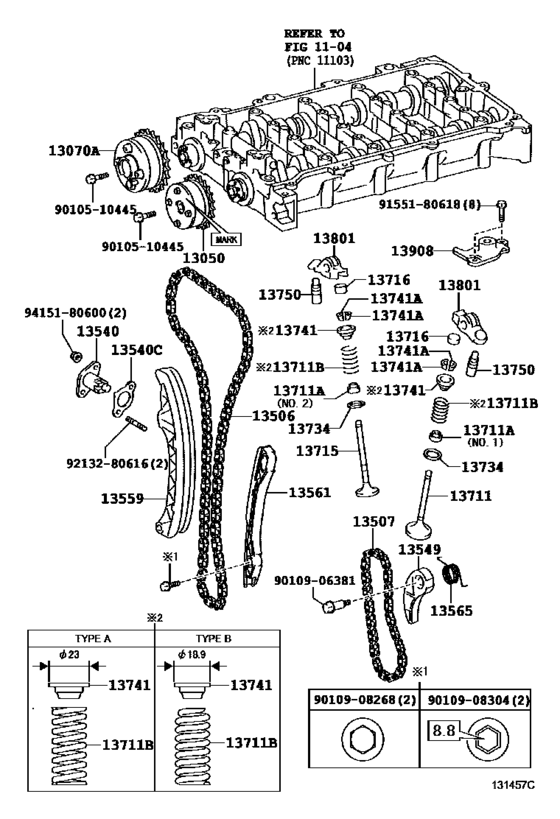

Camshaft & Valve ([04.2010 - ] (1004- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13050
|
13050
13050-0T011
Gear Assy, Camshaft Timing
[04.2010 - 06.2012] 3ZRFAE..ZRR70 MARK 13050-0T011 |
13050-0T011 |
— | ||
| replacement | |||||
|
13050
|
13050
13050-0T050 Gear Assy, Camshaft Timing[04.2010 - 06.2012] 3ZRFAE..ZRR70 MARK 13050-0T011 |
13050-0T050 |
US $344.76 |
||
|
13050
|
13050
13050-0T022 Gear Assy, Camshaft TimingCAMSHAFT TIMING [04.2010 - 04.2013] 3ZRFAE..ZRR70 MARK 13050-0T022 |
13050-0T022 |
US $297.02 |
||
| replacements | |||||
|
13050
|
13050
13050-0T060
Gear Assy, Camshaft Timing
[04.2010 - 04.2013] 3ZRFAE..ZRR70 MARK 13050-0T022 |
13050-0T060 |
— | ||
|
13050
|
13050
13050-0T070 Gear Assy, Camshaft Timing[04.2010 - 04.2013] 3ZRFAE..ZRR70 MARK 13050-0T022 |
13050-0T070 |
US $224.22 |
||
|
13050
|
13050
13050-37040 Gear Assy, Camshaft Timing[04.2010 - 04.2013] 3ZRFAE..ZRR70 MARK 13050-0T022 |
13050-37040 |
from US $159.28 |
||
|
13050
|
13050
13050-37012 Gear Assy, Camshaft Timing[04.2010 - 02.2013] 3ZRFAE..ZRR70 W/O PART NO. MARK |
13050-37012 |
US $247.52 |
||
| replacements | |||||
|
13050
|
13050
13050-37040 Gear Assy, Camshaft Timing[04.2010 - 02.2013] 3ZRFAE..ZRR70 W/O PART NO. MARK |
13050-37040 |
from US $159.28 |
||
|
13050
|
13050
13050-37060 Gear Assy, Camshaft Timing[04.2010 - 02.2013] 3ZRFAE..ZRR70 W/O PART NO. MARK |
13050-37060 |
from US $158.36 |
||
|
13050
|
13050
13050-37040 Gear Assy, Camshaft Timing[02.2013 - 01.2014] 3ZRFAE..ZRR70..GEN W/O PART NO. MARK |
13050-37040 |
from US $159.28 |
||
|
13070A
|
13070A
13070-37010 Gear Assy, Camshaft Timing Exhaust[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13070-37010 |
from US $179.05 |
||
|
13506
|
13506
13506-37030
Chain Sub-Assy
[04.2010 - 01.2012] 3ZRFAE..ZRR70 |
13506-37030 |
— | ||
| replacement | |||||
|
13506
|
13506
13506-37060 Chain Sub-Assy[04.2010 - 01.2012] 3ZRFAE..ZRR70 |
13506-37060 |
from US $104.60 |
||
|
13506
|
13506
13506-37060 Chain Sub-Assy[01.2012 - 01.2014] 3ZRFAE..ZRR70..GEN |
13506-37060 |
from US $104.60 |
||
|
13507
|
13507
13507-28010 Chain Sub-Assy, No.2[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13507-28010 |
from US $29.58 |
||
|
13540
|
13540
13540-37030 Tensioner Assy, Chain, No.1[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13540-37030 |
from US $24.02 |
||
|
13540C
|
13540C
13552-37010 Gasket(For Chain Tensioner)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13552-37010 |
from US $2.61 |
||
|
13549
|
13549
13549-37010
Plate, Chain Tensioner
[04.2010 - 03.2015] 3ZRFAE..ZRR70 |
13549-37010 |
— | ||
| replacement | |||||
|
13549
|
13549
13549-37020 Plate, Chain Tensioner[04.2010 - 03.2015] 3ZRFAE..ZRR70 |
13549-37020 |
from US $7.64 |
||
|
13559
|
13559
13559-37020 Slipper, Chain Tensioner[04.2010 - 06.2013] 3ZRFAE..ZRR70 |
13559-37020 |
from US $23.22 |
||
|
13559
|
13559
13559-37030 Slipper, Chain Tensioner[06.2013 - 01.2014] 3ZRFAE..ZRR70..GEN |
13559-37030 |
from US $30.07 |
||
|
13561
|
13561
13561-37010
Damper, Chain Vibration, No.1
[04.2010 - 06.2013] 3ZRFAE..ZRR70 |
13561-37010 |
— | ||
| replacements | |||||
|
13561
|
13561
13561-37040 Damper, Chain Vibration, No.1[04.2010 - 06.2013] 3ZRFAE..ZRR70 |
13561-37040 |
US $17.47 |
||
|
13561
|
13561
13561-37060 DAMPER CHAIN[04.2010 - 06.2013] 3ZRFAE..ZRR70 |
13561-37060 |
from US $21.84 |
||
|
13561
|
13561
13561-37040 Damper, Chain Vibration, No.1[06.2013 - 01.2014] 3ZRFAE..ZRR70..GEN |
13561-37040 |
US $17.47 |
||
|
13565
|
13565
13565-37010 Spring, Chain Damper[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13565-37010 |
from US $2.16 |
||
|
13711
|
13711
13711-37020 Valve, Intake[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13711-37020 |
from US $14.16 |
||
|
13711A
|
13711A
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN NO.1 |
90913-02101 |
from US $4.84 |
||
|
13711A
|
13711A
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN NO.2 |
90913-02112 |
from US $4.84 |
||
|
13711B
|
13711B
90501-31024 Spring, Compression(For Inner)[04.2010 - 10.2011] 3ZRFAE..ZRR70 |
90501-31024 |
US $3.49 |
||
| replacement | |||||
|
13711B
|
13711B
90501-31027 Spring, Compression(For Inner)[04.2010 - 10.2011] 3ZRFAE..ZRR70 |
90501-31027 |
US $2.91 |
||
|
13711B
|
13711B
90501-31027 Spring, Compression(For Inner)[10.2011 - 05.2014] 3ZRFAE..ZRR70 |
90501-31027 |
US $2.91 |
||
|
13715
|
13715
13715-37030 Valve, Exhaust[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13715-37030 |
from US $20.28 |
||
|
13716
|
13716
13716-75020 Cap, Valve Stem[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13716-75020 |
from US $0.64 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13734-62020 |
from US $0.57 |
||
|
13741
|
13741
13741-20021 Retainer, Valve Spring[04.2010 - 05.2014] 3ZRFAE..ZRR70 |
13741-20021 |
from US $1.91 |
||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
90913-03028 |
from US $1.29 |
||
|
13750
|
13750
13750-75020 Adjuster Assy, Valve Lash[04.2010 - 08.2014] 3ZRFAE..ZRR70 |
13750-75020 |
from US $16.67 |
||
|
13801
|
13801
13801-23011 Arm Sub-Assy, Valve Rocker, No.1[04.2010 - 04.2014] 3ZRFAE..ZRR70 |
13801-23011 |
from US $25.63 |
||
|
13908
|
13908
13908-37012 Damper Sub-Assy, Valve Rocker Arm Lost Motion[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
13908-37012 |
US $14.27 |
||
|
9010510445
|
9010510445
90105-10445 BOLT WASHER BASED |
90105-10445 |
from US $1.13 |
||
|
9010906381
|
9010906381
90109-06381 BOLT |
90109-06381 |
from US $0.82 |
||
|
9010908268
|
9010908268
90109-08268 BOLT |
90109-08268 |
US $2.87 |
||
|
9010908304
|
9010908304
90109-08304 BOLT |
90109-08304 |
from US $1.29 |
||
|
9155180618
|
9155180618
91551-80618 Bolt, W/washer(For Repair Actuator Set) |
91551-80618 |
US $1.08 |
||
|
9213280616
|
9213280616
92132-80616 BOLTSTUD |
92132-80616 |
US $1.43 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
