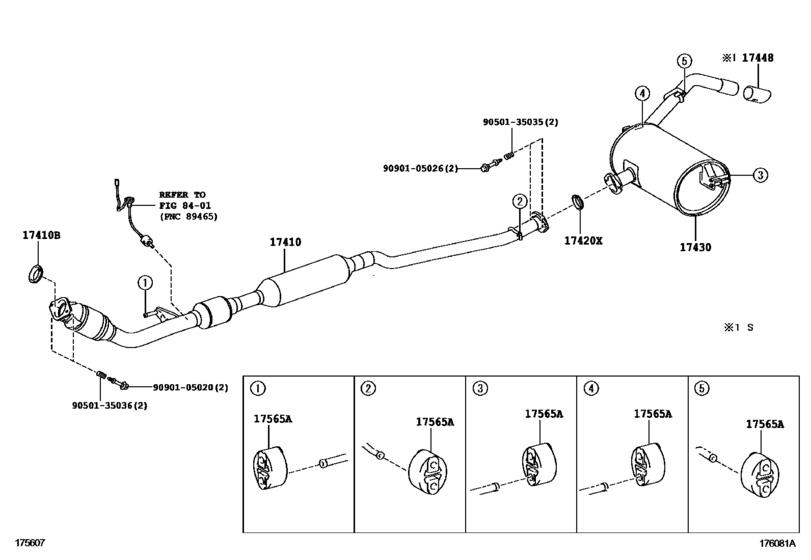

Exhaust Pipe ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-37450 Pipe Assy, Exhaust, Front[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
17410-37450 |
US $2,886 |
||
|
17410B
|
17410B
17451-28040
Gasket, Exhaust Pipe
[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
17451-28040 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-28041 Gasket, Exhaust Pipe[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
17451-28041 |
from US $19.36 |
||
|
17420X
|
17420X
17451-28021 Gasket, Exhaust Pipe, Center[04.2010 - 02.2011] 3ZRFAE..ZRR70 |
17451-28021 |
US $24.32 |
||
| replacement | |||||
|
17420X
|
17420X
17451-28022 Gasket, Exhaust Pipe[04.2010 - 02.2011] 3ZRFAE..ZRR70 |
17451-28022 |
from US $19.68 |
||
|
17420X
|
17420X
17451-28022 Gasket, Exhaust Pipe[03.2011 - 01.2014] 3ZRFAE..ZRR70..GEN |
17451-28022 |
from US $19.68 |
||
|
17430
|
17430
17430-37190 Pipe Assy, Exhaust, Tail[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
17430-37190 |
US $669.24 |
||
|
17448
|
17448
17448-74080 Baffle, Tail Pipe[04.2010 - 01.2014] 3ZRFAE..ZRR70..S |
17448-74080 |
US $62.66 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
17565-22040 |
from US $9.48 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.45 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.41 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $5.56 |
||
