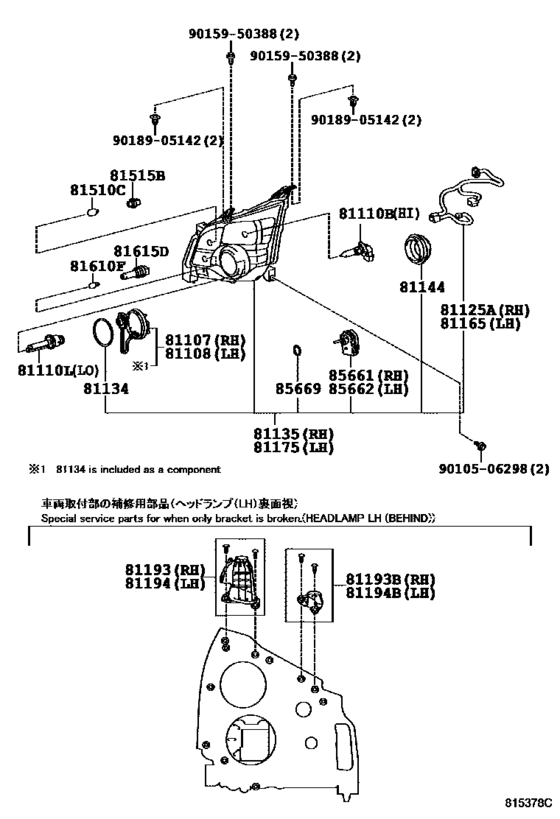

Headlamp ([04.2010 - ] (1004- )S) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81107
|
81107
81107-60F10 Computer Sub-Assy, Headlamp Light Control, Rh[06.2012 - 01.2014] ZRR70..S |
81107-60F10 |
from US $223.51 |
||
|
81107
|
81107
81107-75020 Computer Sub-Assy, Headlamp Light ControlHEADLAMP LIGHT CONTROL [04.2010 - 06.2012] ZRR70..S |
81107-75020 |
from US $225.15 |
||
|
81108
|
81108
81107-60F10 Computer Sub-Assy, Headlamp Light Control, Rh[06.2012 - 01.2014] ZRR70..S |
81107-60F10 |
from US $223.51 |
||
|
81108
|
81108
81107-75020 Computer Sub-Assy, Headlamp Light ControlHEADLAMP LIGHT CONTROL [04.2010 - 06.2012] ZRR70..S |
81107-75020 |
from US $225.15 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[04.2010 - 01.2014] ZRR70..GEN 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $16.34 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[04.2010 - 01.2014] ZRR70..S 42V 35W |
90981-20024 |
from US $164.74 |
||
|
81125A
|
81125A
81125-28E70 Cord, Headlamp, Rh[04.2010 - 01.2014] ZRR70..S |
81125-28E70 |
US $14.85 |
||
|
81134
|
81134
90075-23002 Gasket, HeadlampHEADLAMP HOUSING [04.2010 - 01.2014] ZRR70..S |
90075-23002 |
from US $2.75 |
||
|
81135
|
81135
81145-28E90 Unit Assy, Headlamp, Rh[04.2010 - 01.2014] ZRR70..S |
81145-28E90 |
US $892.32 |
||
|
81144
|
81144
90075-65006 Cover, Headlamp Back, No.1[04.2010 - 01.2014] ZRR70..GEN |
90075-65006 |
from US $4.89 |
||
|
81165
|
81165
81165-28E70 Cord, Headlamp, Lh[04.2010 - 01.2014] ZRR70..S |
81165-28E70 |
US $14.85 |
||
|
81175
|
81175
81185-28E90 Unit Assy, Headlamp, Lh[04.2010 - 01.2014] ZRR70..S |
81185-28E90 |
US $892.32 |
||
|
81193
|
81193
81193-28080 Retainer, Headlamp Protector, Upper Rh[04.2010 - 01.2014] ZRR70..GEN |
81193-28080 |
US $22.16 |
||
|
81193B
|
81193B
81193-28090 Retainer, Headlamp Protector, Upper Rh No.2[04.2010 - 01.2014] ZRR70..GEN |
81193-28090 |
US $8.26 |
||
|
81194
|
81194
81194-28080 Retainer, Headlamp Protector, Upper Lh[04.2010 - 01.2014] ZRR70..GEN |
81194-28080 |
US $37.30 |
||
|
81194B
|
81194B
81194-28090 Retainer, Headlamp Protector, Upper Lh No.2[04.2010 - 01.2014] ZRR70..GEN |
81194-28090 |
US $7.28 |
||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[04.2010 - 01.2014] ZRR70..GEN 12V 21W,AMBER |
90981-15021 |
from US $3.22 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[04.2010 - 01.2014] ZRR70..GEN |
90075-60028 |
from US $6.40 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[04.2010 - 01.2014] ZRR70..GEN 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[04.2010 - 01.2014] ZRR70..GEN 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[04.2010 - 01.2014] ZRR70..GEN |
90075-60077 |
from US $6.22 |
||
|
85661
|
85661
85661-12020 Motor, Headlamp Leveling, Rh[04.2010 - 01.2014] ZRR70..S |
85661-12020 |
US $62.33 |
||
|
85662
|
85662
85661-12020 Motor, Headlamp Leveling, Rh[04.2010 - 01.2014] ZRR70..S |
85661-12020 |
US $62.33 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[04.2010 - 01.2014] ZRR70..GEN |
90075-99120 |
from US $2.38 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.60 |
||
|
9015950388
|
9015950388
90159-50388 SCREW, W/WASHER |
90159-50388 |
from US $0.62 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.76 |
||
