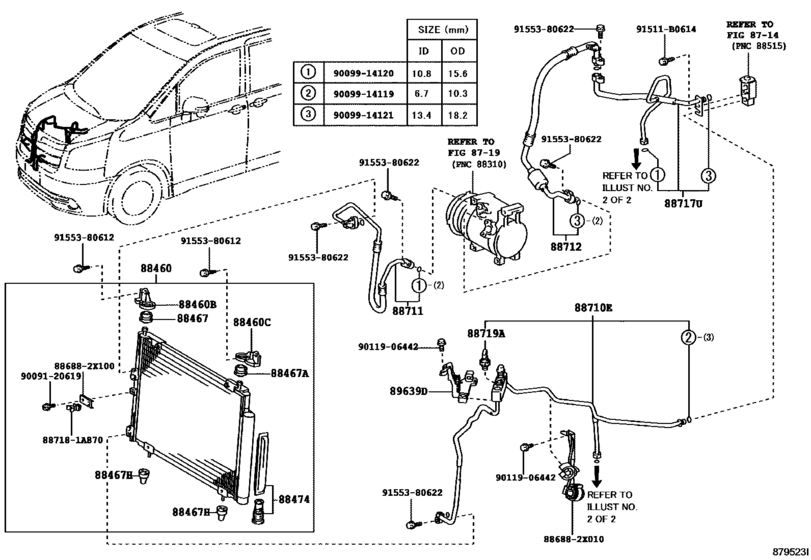

Heating & Air Conditioning - Cooler Piping ([08.2008 - ] FRONT (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-28640 Condenser Assy, Cooler[04.2010 - 01.2014] ZRR70..GEN |
88460-28640 |
US $942.24 |
||
|
88460B
|
88460B
88688-2X130
Bracket, Cooler Condenser, No.1
[04.2010 - 01.2014] ZRR70..GEN |
88688-2X130 |
— | ||
|
88460C
|
88460C
88688-2X140
Bracket, Cooler Condenser, No.2
[04.2010 - 01.2014] ZRR70..GEN |
88688-2X140 |
— | ||
|
88467
|
88467
88467-33030
Cushion, Cooler Condenser, No.1
[04.2010 - 01.2014] ZRR70..GEN |
88467-33030 |
— | ||
|
88467A
|
88467A
88467-33030
Cushion, Cooler Condenser, No.1
[04.2010 - 01.2014] ZRR70..GEN |
88467-33030 |
— | ||
|
88467H
|
88467H
88467-20190 Cushion, Cooler Condenser, No.1[04.2010 -] ZRR70 |
88467-20190 |
US $4.06 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[04.2010 - 01.2014] ZRR70..GEN |
88474-17010 |
from US $58.54 |
||
|
88710E
|
88710E
88710-2X282 Tube & Accessory Assy, Air Conditioner[04.2010 - 01.2014] ZRR70..GEN |
88710-2X282 |
US $393.12 |
||
|
88711
|
88711
88711-2J330 Hose, Cooler Refrigerant Discharge, No.1[04.2010 - 01.2014] ZRR70..GEN |
88711-2J330 |
US $225.60 |
||
|
88712
|
88712
88712-2J010 Hose, Cooler Refrigerant Suction, No.1[04.2010 - 01.2014] ZRR70..GEN |
88712-2J010 |
US $307.20 |
||
|
88717U
|
88717U
88717-2X120 Tube, Suction, No.1[04.2010 - 01.2014] ZRR70..GEN |
88717-2X120 |
US $198.02 |
||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[04.2010 - 01.2014] ZRR70..GEN |
88719-33020 |
from US $124.05 |
||
|
89639D
|
89639D
89639-28190 Clamp, Airconditioner Tube[04.2010 -] ZRR70 |
89639-28190 |
US $17.98 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
886882X010
|
886882X010
88688-2X010
Bracket, Cooler Diaphragm
|
88688-2X010 |
— | ||
|
886882X100
|
886882X100
88688-2X100
Bracket, Cooler Diaphragm
|
88688-2X100 |
— | ||
|
887181A870
|
887181A870
88718-1A870
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A870 |
— | ||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.92 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
||
|
9155380622
|
9155380622
91553-80622 BOLT FLANGE |
91553-80622 |
US $1.08 |
||
