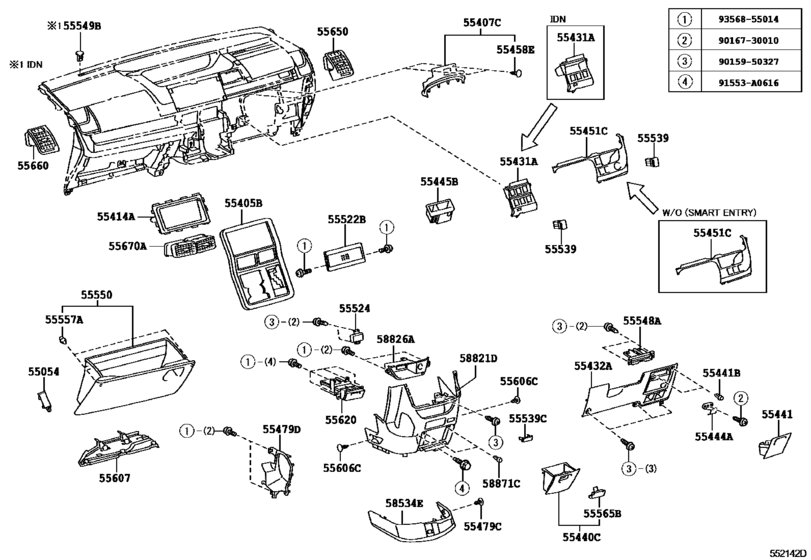

Instrument Panel & Glove Compartment ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-12020 Stopper Sub-Assy, Glove Compartment Door[08.2012 - 01.2014] ZRR70..GEN |
55054-12020 |
US $13.98 |
||
|
55054
|
55054
55054-33060 Stopper Sub-Assy, Glove Compartment Door[04.2010 - 07.2012] ZRR70 |
55054-33060 |
from US $15.25 |
||
|
55405B
|
55405B
55405-28760 Panel Sub-Assy, Instrument Cluster Finish, Center[04.2010 -] ZRR70 |
55405-28760 |
US $109.20 |
||
|
55407C
|
55407C
55407-28090 Cover Sub-Assy, Instrument, Lower[04.2010 -] ZRR70 |
55407-28090 |
US $6.12 |
||
|
55414A
|
55414A
55414-28100 Panel, Instrument Cluster Finish, End[04.2010 - 01.2014] ZRR70..GEN |
55414-28100 |
US $72.58 |
||
|
55431A
|
55431A
55431-28110-E0 Panel, Instrument Panel Finish[04.2010 - 01.2014] ZRR70..GEN GREGE,TRIM4# |
55431-28110-E0 |
US $29.27 |
||
|
55432A
|
55432A
55432-28240-E0 Panel, Instrument Panel Finish, Lower Rh[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55432-28240-E0 |
US $80.08 |
||
|
55440C
|
55440C
55440-28070-E0 Box Assy, Instrument Panel[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55440-28070-E0 |
US $45.86 |
||
|
55441
|
55441
55441-28150-E0 Box, Instrument Panel[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55441-28150-E0 |
US $48.89 |
||
|
55441B
|
55441B
58959-60060 Cushion, Instrument Panel[04.2010 - 01.2014] ZRR70..GEN |
58959-60060 |
from US $1.29 |
||
|
55444A
|
55444A
55444-28100 Spring, Instrument Panel Box[12.2010 - 01.2014] ZRR70..GEN |
55444-28100 |
US $1.31 |
||
|
55444A
|
55444A
55444-28180 Spring, Instrument Panel Box[04.2010 - 11.2010] ZRR70 |
55444-28180 |
US $1.60 |
||
| replacement | |||||
|
55444A
|
55444A
55444-28100 Spring, Instrument Panel Box[04.2010 - 11.2010] ZRR70 |
55444-28100 |
US $1.31 |
||
|
55445B
|
55445B
55445-28100-E0 Plate, Instrument Panel Finish[04.2010 - 01.2014] ZRR70 ASH BROWN,TRIM4# |
55445-28100-E0 |
US $20.09 |
||
|
55451C
|
55451C
55451-28100-E0 Box, Instrument Panel, No.1[04.2010 - 01.2014] ZRR70..GEN GREGE,TRIM4# |
55451-28100-E0 |
US $39.02 |
||
|
55458E
|
55458E
90467-08186-C0 Clip(For Front Bumper), No.1[04.2010 - 10.2016] ZRR70 BLACK |
90467-08186-C0 |
from US $0.90 |
||
|
55479C
|
55479C
90467-08186-E3 Clip(For Instrument Lower Cover)[04.2010 - 01.2014] ZRR70 ASH BROWN,TRIM4# |
90467-08186-E3 |
US $2.15 |
||
|
55479D
|
55479D
58827-28010-E0 Garnish, Instrument Cluster Finish Panel, Lower[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
58827-28010-E0 |
US $27.08 |
||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[04.2010 - 01.2014] ZRR70..GEN |
55522-52020 |
from US $14.14 |
||
|
55524
|
55524
55524-28050-C0 Cover, Switch Bace Hole[04.2010 - 12.2016] ZRR70 BLACK |
55524-28050-C0 |
US $4.51 |
||
|
55539
|
55539
55539-28160-E0 Cover, Spare Switch Hole[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55539-28160-E0 |
US $4.68 |
||
|
55539C
|
55539C
55539-28190-E0 Cover, Spare Switch Hole[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55539-28190-E0 |
US $4.08 |
||
|
55548A
|
55548A
55548-52030-C0 Cover, Instrument Panel Hole[04.2010 - 01.2014] ZRR70..GEN BLACK,TRIM4# |
55548-52030-C0 |
US $10.93 |
||
|
55550
|
55550
55550-28120-E0 Door Assy, Glove Compartment[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55550-28120-E0 |
US $187.82 |
||
|
55557A
|
55557A
55557-53030 Cushion(For Glove Compartment Door)[04.2010 - 01.2014] ZRR70..GEN |
55557-53030 |
US $1.85 |
||
|
55565B
|
55565B
55565-28090-E0 Knob, Glove Compartment Door Lock[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55565-28090-E0 |
US $6.99 |
||
|
55606C
|
55606C
90467-08186-E4 Clip(For Instrument Panel Under Cover)[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
90467-08186-E4 |
US $2.15 |
||
|
55607
|
55607
55607-28030 Cover Sub-Assy, Instrument Panel Under, No.2[04.2010 - 01.2014] ZRR70..GEN |
55607-28030 |
US $45.72 |
||
|
55620
|
55620
55620-28100-E0 Holder Assy, Instrument Panel Cup[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
55620-28100-E0 |
US $134.48 |
||
|
55650
|
55650
55650-28270-E0 Register Assy, Instrument Panel, No.1[04.2010 - 01.2014] ZRR70 ASH BROWN,TRIM4# |
55650-28270-E0 |
US $80.08 |
||
|
55660
|
55660
55660-28290-E0 Register Assy, Instrument Panel, No.2[04.2010 - 01.2014] ZRR70 ASH BROWN,TRIM4# |
55660-28290-E0 |
US $80.08 |
||
|
55670A
|
55670A
55670-28160 Register Assy, Instrument Panel, Center[04.2010 - 12.2016] ZRR70 |
55670-28160 |
US $127.92 |
||
|
58534E
|
58534E
58534-28050-E0 Cover, Floor Carpet, Center Lh[04.2010 - 01.2014] ZRR70 ASH BROWN,TRIM4# |
58534-28050-E0 |
US $46.01 |
||
|
58821D
|
58821D
58821-28040-E0 Panel, Console, Upper Front[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
58821-28040-E0 |
US $148.51 |
||
|
58826A
|
58826A
58825-28040 Pocket, Console Box, Lower[04.2010 -] ZRR70 |
58825-28040 |
US $28.68 |
||
|
58871C
|
58871C
58959-60060 Cushion, Instrument Panel[04.2010 -] ZRR70 |
58959-60060 |
from US $1.29 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
