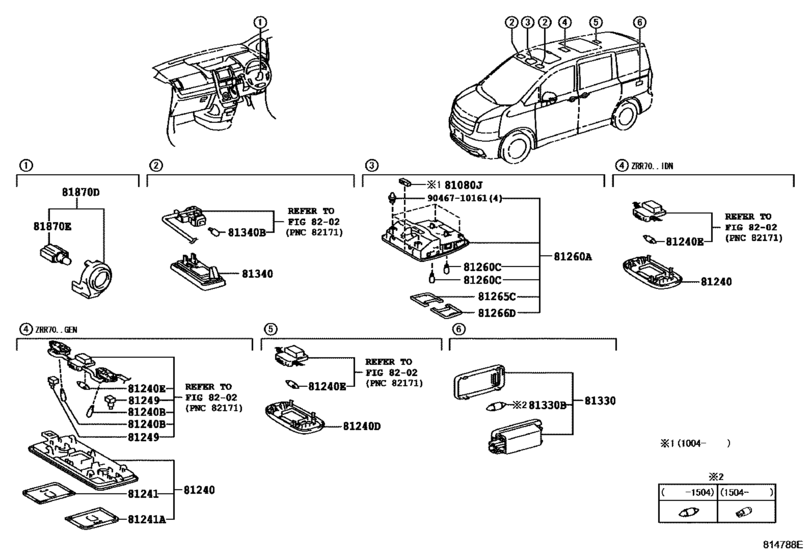

Interior Lamp ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81080J
|
81080J
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[04.2010 - 01.2014] ZRR70..GEN |
81080-22040 |
from US $10.41 |
||
|
81240
|
81240
81260-28130-E0 Lamp Assy, Room, No.1[04.2010 - 01.2014] ZRR70..GEN GREGE,TRIM4# |
81260-28130-E0 |
US $90.20 |
||
|
81240B
|
81240B
90981-11062 Bulb, Room Lamp, No.1[04.2010 - 01.2014] ZRR70..GEN 12V 8W |
90981-11062 |
from US $2.26 |
||
|
81240D
|
81240D
81240-60060-E1 Lamp Assy, Room, No.1[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
81240-60060-E1 |
US $42.81 |
||
|
81240E
|
81240E
90981-14011 Bulb, Room Lamp, No.1[04.2010 -] ZRR70 12V 8W |
90981-14011 |
from US $1.89 |
||
|
81241
|
81241
81265-28130 Lens, Room Lamp, No.1[04.2010 - 01.2014] ZRR70..GEN |
81265-28130 |
US $7.71 |
||
|
81241A
|
81241A
81266-28130 Lens, Room Lamp, No.2[04.2010 - 01.2014] ZRR70..GEN |
81266-28130 |
US $8.18 |
||
|
81249
|
81249
84532-58010 Switch, Room Lamp[04.2010 - 01.2014] ZRR70..GEN |
84532-58010 |
from US $9.36 |
||
|
81260A
|
81260A
81260-28050-E0 Lamp Assy, Map[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
81260-28050-E0 |
US $88.82 |
||
|
81260C
|
81260C
90981-11062 Bulb, Room Lamp, No.1[04.2010 - 01.2014] ZRR70..GEN 12V 8W |
90981-11062 |
from US $2.26 |
||
|
81265C
|
81265C
81265-28110 Lens, Map Lamp, No.1[04.2010 - 01.2014] ZRR70..GEN |
81265-28110 |
US $11.47 |
||
|
81266D
|
81266D
81266-28110 Lens, Map Lamp, No.2[04.2010 - 01.2014] ZRR70..GEN |
81266-28110 |
US $11.47 |
||
|
81330
|
81330
81250-48010 Lamp Assy, Room, No.2[04.2010 - 03.2015] ZRR70 |
81250-48010 |
from US $23.93 |
||
|
81330B
|
81330B
99132-13050 Bulb(For Courtesy Lamp)[04.2010 - 04.2015] ZRR70 12V 5W |
99132-13050 |
from US $2.57 |
||
| replacement | |||||
|
81330B
|
81330B
00234-13050 Bulb,Room Lamp[04.2010 - 04.2015] ZRR70 12V 5W |
00234-13050 |
US $2.82 |
||
|
81340
|
81340
81340-30100-E1 Lamp Assy, Vanity[04.2010 - 10.2012] ZRR70 GREGE,TRIM4# |
81340-30100-E1 |
US $24.90 |
||
|
81340
|
81340
81340-30110 Lamp Assy, Vanity[10.2012 - 01.2014] ZRR70..GEN |
81340-30110 |
from US $22.07 |
||
|
81340B
|
81340B
90981-11062 Bulb, Room Lamp, No.1[04.2010 -] ZRR70 12V 8W |
90981-11062 |
from US $2.26 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.76 |
||
