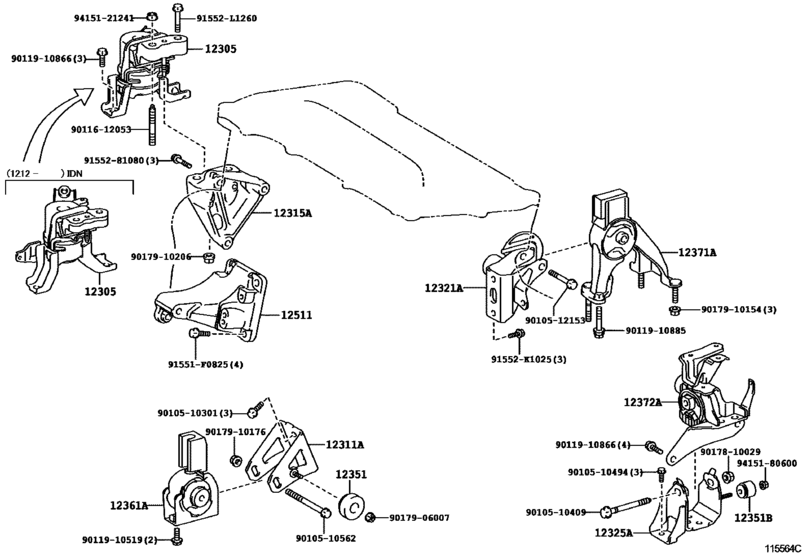

Mounting ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-37050 Insulator Sub-Assy, Engine Mounting, Rh[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12305-37050 |
from US $162.36 |
||
|
12311A
|
12311A
12311-37040 Bracket, Engine Mounting, Front(For Transverse Engine)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12311-37040 |
US $22.16 |
||
|
12315A
|
12315A
12315-37030 Bracket, Engine Mounting, Rh(For Transverse Engine)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12315-37030 |
US $46.30 |
||
|
12321A
|
12321A
12321-37130 Bracket, Engine Mounting, Rear(For Transverse Engine)ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) [04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12321-37130 |
US $49.27 |
||
|
12325A
|
12325A
12325-37041 Bracket, Engine Mounting, Lh(For Transverse Engine)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12325-37041 |
US $25.77 |
||
|
12351
|
12351
12351-28010 Damper, Engine Mounting[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12351-28010 |
US $36.29 |
||
|
12351B
|
12351B
12351-37040 Damper, Engine Mounting(For Insulator)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12351-37040 |
US $16.77 |
||
|
12361A
|
12361A
12361-37040
Insulator, Engine Mounting, Front(For Transverse Engine)
[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12361-37040 |
— | ||
| replacement | |||||
|
12361A
|
12361A
12361-37140 Insulator, Engine Mounting, Front(For Transverse Engine)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12361-37140 |
from US $95.12 |
||
|
12371A
|
12371A
12371-37120 Insulator, Engine Mounting, Rear[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12371-37120 |
from US $115.56 |
||
|
12372A
|
12372A
12372-37030
Insulator, Engine Mounting, Lh(For Transverse Engine)
[04.2010 - 12.2012] 3ZRFAE..ZRR70 |
12372-37030 |
— | ||
| replacement | |||||
|
12372A
|
12372A
12372-37031 Insulator, Engine Mounting, Lh(For Transverse Engine)[04.2010 - 12.2012] 3ZRFAE..ZRR70 |
12372-37031 |
from US $131.74 |
||
|
12372A
|
12372A
12372-37031 Insulator, Engine Mounting, Lh(For Transverse Engine)[01.2013 - 01.2014] 3ZRFAE..ZRR70..GEN |
12372-37031 |
from US $131.74 |
||
|
12511
|
12511
12511-37010 Bracket, Alternator, No.1[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
12511-37010 |
US $29.85 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.43 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.79 |
||
|
91552L1260
|
91552L1260
91552-L1260 BOLT FLANGE |
91552-L1260 |
US $4.84 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.97 |
||
|
9010510409
|
9010510409
90105-10409 New Genuine Part |
90105-10409 |
US $4.84 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.79 |
||
|
9010510562
|
9010510562
90105-10562 Bolt, No.2(For Alternator) |
90105-10562 |
US $4.30 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.91 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $5.56 |
||
|
9011910519
|
9011910519
90119-10519 New Genuine Part |
90119-10519 |
US $3.58 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.92 |
||
|
9011910885
|
9011910885
90119-10885 New Genuine Part |
90119-10885 |
US $4.66 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $1.19 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9017910154
|
9017910154
90179-10154 NUT |
90179-10154 |
US $1.97 |
||
|
9017910176
|
9017910176
90179-10176 NUT |
90179-10176 |
US $2.69 |
||
|
9017910206
|
9017910206
90179-10206 New Genuine Part |
90179-10206 |
US $1.35 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.50 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
