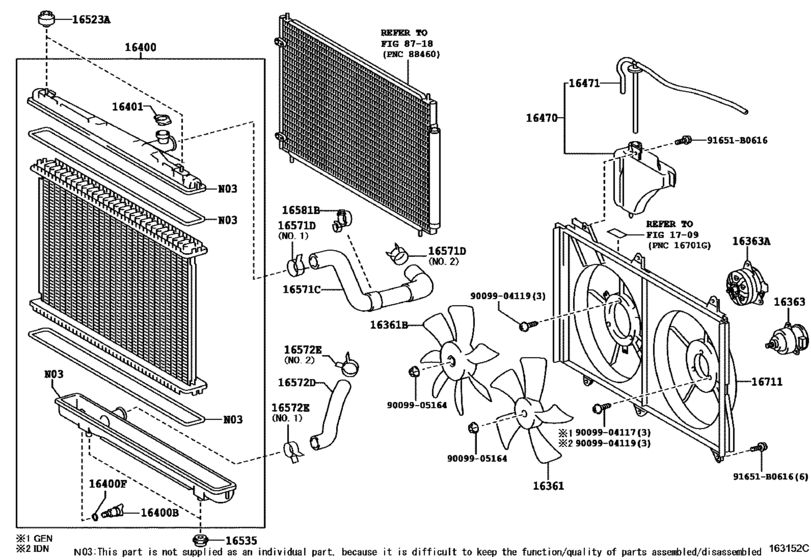

Radiator & Water Outlet ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-28021 Fan[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16361-28021 |
US $75.26 |
||
|
16361B
|
16361B
16361-28030 Fan, No.2[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16361-28030 |
US $103.32 |
||
|
16363
|
16363
16363-23010 Motor, Cooling Fan[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16363-23010 |
from US $87.01 |
||
|
16363A
|
16363A
16363-21030 Motor, Cooling Fan[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16363-21030 |
US $278.40 |
||
|
16400
|
16400
16400-37220 Radiator Assy[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16400-37220 |
US $549.12 |
||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16492-21050 |
from US $2.16 |
||
|
16401
|
16401
16401-31480 Cap Sub-Assy, Radiator[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16401-31480 |
from US $16.31 |
||
|
16470
|
16470
16470-28070 Tank Assy, Radiator Reserve[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16470-28070 |
US $65.02 |
||
|
16471
|
16471
16405-28040
Cap Sub-Assy, Reserve Tank
[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16405-28040 |
— | ||
|
16523A
|
16523A
16523-28010 Cushion, Sub-Radiator Support[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16523-28010 |
from US $7.14 |
||
|
16535
|
16535
16535-74150 Support, Radiator, Lower[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16535-74150 |
US $35.28 |
||
|
16571C
|
16571C
16571-37081 Hose, Radiator, No.1[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16571-37081 |
from US $23.54 |
||
|
16571D
|
16571D
90466-37002 Clamp Or Clip, Hose(For Radiator Inlet)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN NO.1 |
90466-37002 |
from US $6.12 |
||
|
16571D
|
16571D
96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN NO.2 |
96136-43901 |
from US $4.30 |
||
|
16572D
|
16572D
16572-37070 Hose, Radiator, No.2[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16572-37070 |
from US $22.13 |
||
|
16572E
|
16572E
90466-37002 Clamp Or Clip, Hose(For Radiator Inlet)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN NO.1 |
90466-37002 |
from US $6.12 |
||
|
16572E
|
16572E
90467-37005 Clip(For Water Inlet Hose)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN NO.2 |
90467-37005 |
from US $3.96 |
||
|
16581B
|
16581B
16581-37031 Clamp, Hose(For Radiator Hose)[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16581-37031 |
US $15.05 |
||
|
16711
|
16711
16711-28210 Shroud Sub-Assy, Fan[04.2010 - 01.2014] 3ZRFAE..ZRR70..GEN |
16711-28210 |
US $177.60 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.62 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
