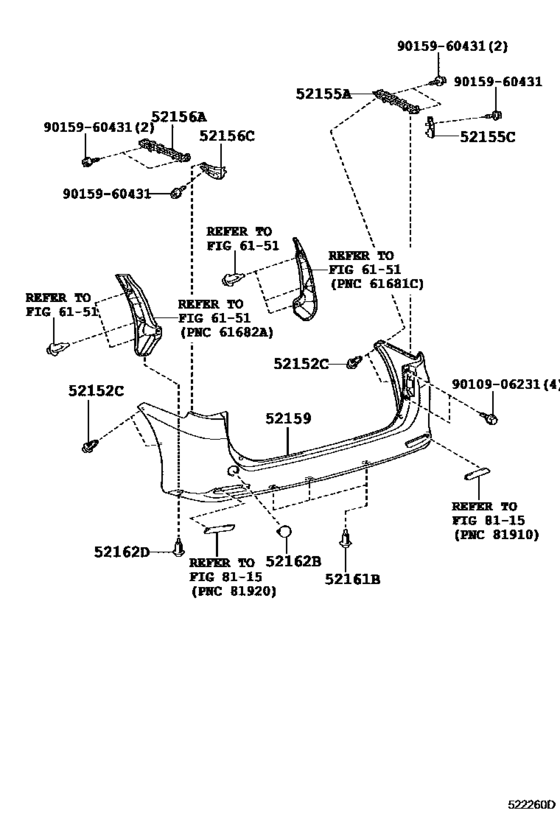

Rear Bumper & Bumper Stay ([04.2010 - ] (1004- )S) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52152C
|
52152C
90467-05090-B1 Clip, Rear Bumper Side[04.2010 - 01.2013] ZRR70 DK.GRAY |
90467-05090-B1 |
from US $1.23 |
||
|
52152C
|
52152C
90467-05170 Clip, Rear Bumper Side[02.2013 - 01.2014] ZRR70..GEN |
90467-05170 |
from US $0.80 |
||
|
52155A
|
52155A
52155-28100 Support, Rear Bumper Side, Rh[04.2010 -] ZRR70 |
52155-28100 |
US $40.99 |
||
|
52155C
|
52155C
52155-28110 Support, Rear Bumper Side, No.1 Rh[04.2010 - 01.2014] ZRR70..GEN |
52155-28110 |
US $17.14 |
||
|
52156A
|
52156A
52156-28070 Support, Rear Bumper Side, Lh[04.2010 - 01.2014] ZRR70..GEN |
52156-28070 |
US $40.99 |
||
|
52156C
|
52156C
52156-28080 Support, Rear Bumper Side, No.1 Lh[04.2010 - 01.2014] ZRR70..GEN |
52156-28080 |
US $17.14 |
||
|
52159
|
52159
52159-28943 Cover, Rear Bumper[04.2010 - 01.2014] ZRR70..S |
52159-28943 |
US $678.60 |
||
|
52161B
|
52161B
52161-16010 Clip[04.2010 -] ZRR70 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[04.2010 -] ZRR70 |
52161-0K040 |
from US $1.50 |
||
|
52161B
|
52161B
52161-02020 Clip[04.2010 -] ZRR70 |
52161-02020 |
US $5.27 |
||
|
52162B
|
52162B
52162-28080-A0 Plate, Rear Bumper, No.1[04.2010 - 01.2014] ZRR70..S WHITE PEARL CS.,070 |
52162-28080-A0 |
US $9.86 |
||
|
52162B
|
52162B
52162-28080-B0 Plate, Rear Bumper, No.1[04.2010 - 01.2014] ZRR70..S SILVER ME.,1F7 |
52162-28080-B0 |
US $9.86 |
||
|
52162B
|
52162B
52162-28080-B1 Plate, Rear Bumper, No.1[04.2010 - 01.2014] ZRR70..S GRAY ME.,1G3 |
52162-28080-B1 |
US $9.86 |
||
|
52162B
|
52162B
52162-28080-C0 Plate, Rear Bumper, No.1[04.2010 - 01.2014] ZRR70..S BLACK,202 |
52162-28080-C0 |
US $9.86 |
||
|
52162D
|
52162D
52161-16010 Clip[04.2010 - 01.2014] ZRR70..GEN |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52162D
|
52162D
52161-0K040 Clip[04.2010 - 01.2014] ZRR70..GEN |
52161-0K040 |
from US $1.50 |
||
|
52162D
|
52162D
52161-02020 Clip[04.2010 - 01.2014] ZRR70..GEN |
52161-02020 |
US $5.27 |
||
|
9010906231
|
9010906231
90109-06231 BOLT |
90109-06231 |
from US $0.82 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
