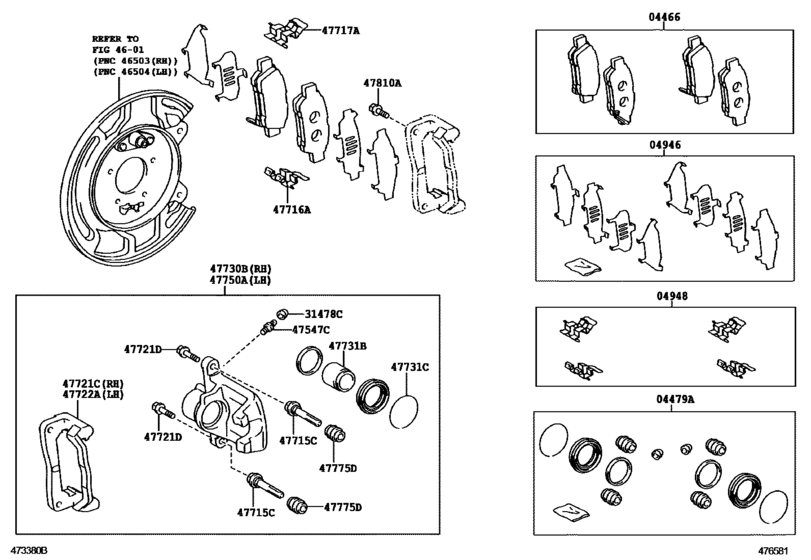

Rear Disc Brake Caliper & Dust Cover ([08.2008 - ] (0808- )GEN) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-44010 Pad Kit, Disc Brake, RearDISC BRAKE, REAR [04.2010 - 01.2014] ZRR70..GEN MARK AK PA561 |
04466-44010 |
from US $75.43 |
||
|
04479A
|
04479A
04479-28090 Cylinder Kit, Disc Brake, Rear[04.2013 - 01.2014] ZRR70..GEN |
04479-28090 |
US $43.85 |
||
|
04479A
|
04479A
04479-28170
Cylinder Kit, Disc Brake, Rear
[04.2010 - 04.2013] ZRR70..GEN |
04479-28170 |
— | ||
| replacement | |||||
|
04479A
|
04479A
04479-28090 Cylinder Kit, Disc Brake, Rear[04.2010 - 04.2013] ZRR70..GEN |
04479-28090 |
US $43.85 |
||
|
04946
|
04946
04946-28020 Shim Kit, Anti Squeal(For Rear Disc Brake)[04.2010 - 01.2014] ZRR70..GEN |
04946-28020 |
US $29.40 |
||
|
04948
|
04948
04948-28010 Fitting Kit, Disc Brake, Rear[04.2010 - 01.2014] ZRR70..GEN |
04948-28010 |
from US $18 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[04.2010 - 01.2014] ZRR70..GEN |
31478-30010 |
from US $1.60 |
||
|
47547C
|
47547C
47547-20010 Plug, Bleeder(For Release Cylinder)[04.2010 - 01.2014] ZRR70..GEN |
47547-20010 |
from US $3.58 |
||
|
47715C
|
47715C
47715-52010 Pin, Front Disc Brake Cylinder Slide[04.2010 - 01.2014] ZRR70..GEN |
47715-52010 |
from US $5.73 |
||
|
47716A
|
47716A
47716-28030 Plate, Pad Support, No.1(For Rear Disc Brake)[04.2010 - 01.2014] ZRR70..GEN |
47716-28030 |
US $7.88 |
||
|
47717A
|
47717A
47717-28010 Plate, Pad Support, No.2(For Rear Disc Brake)[04.2010 - 01.2014] ZRR70..GEN |
47717-28010 |
US $4.30 |
||
|
47721C
|
47721C
47721-28020 Mounting, Rear Disc Brake Cylinder, Rh[04.2010 - 01.2014] ZRR70..GEN |
47721-28020 |
US $79.80 |
||
|
47721D
|
47721D
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[04.2010 - 01.2014] ZRR70..GEN *8-1.00PX23-15 |
90105-08164 |
from US $0.92 |
||
|
47722A
|
47722A
47722-28010 Mounting, Rear Disc Brake Cylinder, Lh[04.2010 - 01.2014] ZRR70..GEN |
47722-28010 |
US $79.80 |
||
|
47730B
|
47730B
47730-28270 Cylinder Assy, Rear Disc Brake, Rh[04.2010 - 01.2014] ZRR70..GEN |
47730-28270 |
US $647.40 |
||
|
47731B
|
47731B
47731-28090 Piston, Rear Disc Brake[04.2010 - 01.2014] ZRR70..GEN |
47731-28090 |
US $16.49 |
||
|
47731C
|
47731C
90522-53001 Ring, Set(For Rear Disc Brake Piston)[04.2010 - 01.2014] ZRR70..GEN |
90522-53001 |
US $2.04 |
||
|
47750A
|
47750A
47750-28270 Cylinder Assy, Disc Brake, Rear Lh[04.2010 - 01.2014] ZRR70..GEN |
47750-28270 |
US $647.40 |
||
|
47775D
|
47775D
47775-02130 Boot, Bush Dust(For Front Disc Brake)[04.2013 - 01.2014] ZRR70..GEN |
47775-02130 |
from US $1.97 |
||
|
47775D
|
47775D
47775-52010 Boot, Bush Dust(For Front Disc Brake)[04.2010 - 04.2013] ZRR70..GEN |
47775-52010 |
US $3.32 |
||
| replacement | |||||
|
47775D
|
47775D
47775-02130 Boot, Bush Dust(For Front Disc Brake)[04.2010 - 04.2013] ZRR70..GEN |
47775-02130 |
from US $1.97 |
||
|
47810A
|
47810A
90119-12185 Bolt, Hexagon(For Rear Caliper)[04.2010 - 01.2014] ZRR70..GEN |
90119-12185 |
US $2.87 |
||
