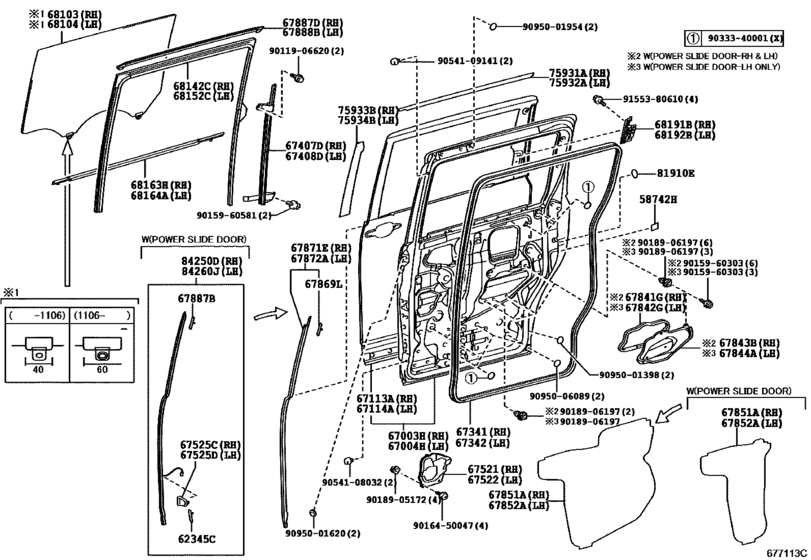

Rear Door Panel & Glass ([02.2010 - ] DOOR PANEL (1002- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58742H
|
58742H
58743-28020 Protector, Slide Door, Lh[04.2010 - 01.2014] ZRR70..GEN |
58743-28020 |
US $8.78 |
||
|
62345C
|
62345C
67869-28030 Clip(For Weatherstrip, Slide Door)SLIDE DOOR) [04.2010 - 01.2014] ZRR70..S RH |
67869-28030 |
US $2.87 |
||
|
62345C
|
62345C
67869-28040 Clip(For Weatherstrip, Slide Door)SLIDE DOOR) [04.2010 - 01.2014] ZRR70..E..GEN; ZRR70..S LH |
67869-28040 |
US $2.87 |
||
|
67003H
|
67003H
67003-28540 Door Sub-Assy, Slide, Rh[04.2010 - 01.2014] ZRR70..S |
67003-28540 |
US $716.35 |
||
|
67004H
|
67004H
67004-28520 Door Sub-Assy, Slide, Lh[04.2010 - 01.2014] ZRR70..S |
67004-28520 |
US $716.35 |
||
|
67113A
|
67113A
67113-28160
Panel, Slide Door, Outer Rh
[04.2010 - 01.2014] ZRR70..S |
67113-28160 |
— | ||
|
67341
|
67341
67871-28072-E0 Weatherstrip, Slide Door, Rh[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
67871-28072-E0 |
US $243.20 |
||
|
67342
|
67342
67872-28122-E0 Weatherstrip, Slide Door, LhSLIDE DOOR, LH [04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
67872-28122-E0 |
US $243.20 |
||
|
67407D
|
67407D
67407-28040 Guide Sub-Assy, Rear Door Window, Rear Rh[04.2010 - 01.2014] ZRR70..GEN |
67407-28040 |
US $29.56 |
||
|
67408D
|
67408D
67408-28070 Guide Sub-Assy, Rear Door Window, Rear Lh[04.2010 - 01.2014] ZRR70..GEN |
67408-28070 |
US $29.56 |
||
|
67521
|
67521
67521-28050 Cover Sub-Assy, Slide Door Panel, Rh[04.2010 - 01.2014] ZRR70..GEN |
67521-28050 |
US $28.38 |
||
|
67522
|
67522
67522-28040 Cover Sub-Assy, Slide Door Panel, Lh[04.2010 - 01.2014] ZRR70..GEN |
67522-28040 |
US $47.88 |
||
|
67525C
|
67525C
67525-28030 Cover, Slide Door Panel, Lower Rh[04.2010 - 01.2014] ZRR70..S |
67525-28030 |
US $8.96 |
||
|
67525D
|
67525D
67526-28010 Cover, Slide Door Panel, Lower Lh[04.2010 -] ZRR70 |
67526-28010 |
US $8.96 |
||
|
67841G
|
67841G
67846-28010 Cover, Slide Door Service Hole, Rh[04.2010 - 01.2014] ZRR70..S |
67846-28010 |
US $10.39 |
||
|
67842G
|
67842G
67846-28010 Cover, Slide Door Service Hole, Rh[04.2010 - 01.2014] ZRR70..GEN |
67846-28010 |
US $10.39 |
||
|
67843B
|
67843B
67843-28020 Cover, Rear Door Service Hole, No.2 Rh[04.2010 - 01.2014] ZRR70..S |
67843-28020 |
US $42.67 |
||
|
67844A
|
67844A
67844-28020 Cover, Rear Door Service Hole, No.2 Lh[04.2010 - 01.2014] ZRR70..GEN |
67844-28020 |
US $42.67 |
||
|
67851A
|
67851A
67851-28120 Cover, Slide Door Service Hole, No.1[04.2010 - 01.2014] ZRR70..S |
67851-28120 |
US $12.54 |
||
|
67852A
|
67852A
67852-28140 Cover, Slide Door Service Hole, No.2[04.2010 - 01.2014] ZRR70..GEN |
67852-28140 |
US $12.54 |
||
|
67887B
|
67887B
67869-28010 Retainer, Rear Door Weatherstrip, Rh[04.2010 - 01.2014] ZRR70..S |
67869-28010 |
US $2.33 |
||
|
67887D
|
67887D
67887-28102 Weatherstrip, Slide Door, No.2 Rh[04.2010 - 01.2014] ZRR70..GEN |
67887-28102 |
US $103.32 |
||
|
67888B
|
67888B
67888-28112 Weatherstrip, Slide Door, No.2 Lh[04.2010 - 01.2014] ZRR70..GEN |
67888-28112 |
US $103.32 |
||
|
68103
|
68103
68103-28240
Glass Sub-Assy, Rear Door, Rh
[04.2010 - 06.2011] ZRR70 *UVCT,T=3.5,GREEN |
68103-28240 |
— | ||
| replacements | |||||
|
68103
|
68103
68103-28242
Glass Sub-Assy, Rear Door, Rh
[04.2010 - 06.2011] ZRR70 *UVCT,T=3.5,GREEN |
68103-28242 |
— | ||
|
68103
|
68103
91673-80618 BOLT FLANGE WWASER[04.2010 - 06.2011] ZRR70 *UVCT,T=3.5,GREEN |
91673-80618 |
US $1.08 |
||
|
68103
|
68103
68103-28241
Glass Sub-Assy, Rear Door, Rh
[06.2011 - 03.2012] ZRR70 *UVCT,T=3.5,GREEN |
68103-28241 |
— | ||
| replacement | |||||
|
68103
|
68103
68103-28242
Glass Sub-Assy, Rear Door, Rh
[06.2011 - 03.2012] ZRR70 *UVCT,T=3.5,GREEN |
68103-28242 |
— | ||
|
68103
|
68103
68103-28242
Glass Sub-Assy, Rear Door, Rh
[04.2012 -] ZRR70 *UVCT,T=3.5,GREEN |
68103-28242 |
— | ||
|
68104
|
68104
68104-28260
Glass Sub-Assy, Rear Door, Lh
[04.2010 - 06.2011] ZRR70 *UVCT,T=3.5,GREEN |
68104-28260 |
— | ||
| replacements | |||||
|
68104
|
68104
68104-28262
Glass Sub-Assy, Rear Door, Lh
[04.2010 - 06.2011] ZRR70 *UVCT,T=3.5,GREEN |
68104-28262 |
— | ||
|
68104
|
68104
91673-80618 BOLT FLANGE WWASER[04.2010 - 06.2011] ZRR70 *UVCT,T=3.5,GREEN |
91673-80618 |
US $1.08 |
||
|
68104
|
68104
68104-28261
Glass Sub-Assy, Rear Door, Lh
[06.2011 - 03.2012] ZRR70 *UVCT,T=3.5,GREEN |
68104-28261 |
— | ||
| replacement | |||||
|
68104
|
68104
68104-28262
Glass Sub-Assy, Rear Door, Lh
[06.2011 - 03.2012] ZRR70 *UVCT,T=3.5,GREEN |
68104-28262 |
— | ||
|
68104
|
68104
68104-28262
Glass Sub-Assy, Rear Door, Lh
[04.2012 -] ZRR70 *UVCT,T=3.5,GREEN |
68104-28262 |
— | ||
|
68142C
|
68142C
68142-28120 Run, Rear Door Glass, Rh[04.2010 - 01.2014] ZRR70..GEN |
68142-28120 |
US $83.16 |
||
|
68152C
|
68152C
68152-28090 Run, Rear Door Glass, Lh[04.2010 - 01.2014] ZRR70..GEN |
68152-28090 |
US $83.16 |
||
|
68163H
|
68163H
68163-28050 Weatherstrip, Rear Door Glass, Outer Rh[04.2010 - 01.2014] ZRR70..GEN |
68163-28050 |
US $66.19 |
||
|
68164A
|
68164A
68164-28050 Weatherstrip, Rear Door Glass, Outer Lh[04.2010 - 01.2014] ZRR70..GEN |
68164-28050 |
US $66.19 |
||
|
68191B
|
68191B
68191-28010 Run, Rear Door Glass, No.2 Rh[04.2010 - 01.2014] ZRR70..GEN |
68191-28010 |
US $8.26 |
||
|
68192B
|
68192B
68192-28010 Run, Rear Door Glass, No.2 Lh[04.2010 - 01.2014] ZRR70..GEN |
68192-28010 |
US $13.80 |
||
|
75931A
|
75931A
75931-28040 Tape, Black Out, Outer Upper Rh[04.2010 - 01.2014] ZRR70..GEN |
75931-28040 |
US $27.05 |
||
|
75932A
|
75932A
75932-28040 Tape, Black Out, Outer Upper Lh[04.2010 - 01.2014] ZRR70..GEN |
75932-28040 |
US $27.05 |
||
|
75933B
|
75933B
75933-28040 Tape, Black Out, Outer Front Rh[04.2010 - 01.2014] ZRR70..GEN |
75933-28040 |
US $33.26 |
||
|
75934B
|
75934B
75934-28040 Tape, Black Out, Outer Front Lh[04.2010 - 01.2014] ZRR70..GEN |
75934-28040 |
US $33.26 |
||
|
81910E
|
81910E
81910-21030 Reflector Assy, Reflex, Rh[04.2010 - 01.2014] ZRR70..GEN |
81910-21030 |
from US $12.83 |
||
|
84250D
|
84250D
84250-28270 Sensor Assy, Power Slide Door, RhPOWER SLIDE DOOR, RH [04.2010 -] ZRR70..S;ZRR70..IDN |
84250-28270 |
US $530.40 |
||
|
84260J
|
84260J
84260-28080 Sensor Assy, Power Slide Door, LhPOWER SLIDE DOOR, LH [04.2010 -] ZRR70 |
84260-28080 |
US $530.40 |
||
|
9011906620
|
9011906620
90119-06620 BOLT WWASHER |
90119-06620 |
US $2.15 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015960581
|
9015960581
90159-60581 New Genuine Part |
90159-60581 |
US $1.61 |
||
|
9016450047
|
9016450047
90164-50047 SCREW |
90164-50047 |
US $2.15 |
||
|
9018905172
|
9018905172
90189-05172 GROMMET SCREW |
90189-05172 |
US $1.43 |
||
|
9018906197
|
9018906197
90189-06197 GROMMET SCREW |
90189-06197 |
from US $0.74 |
||
|
9033340001
|
9033340001
90333-40001 Plate, Noise Control, No.1 |
90333-40001 |
from US $1.79 |
||
|
9054108032
|
9054108032
90541-08032 Cushion, Rear Door Panel |
90541-08032 |
US $2.87 |
||
|
9054109141
|
9054109141
90541-09141 Cushion, Rear Door |
90541-09141 |
US $1.79 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.92 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.97 |
||
|
9095001954
|
9095001954
90950-01954 PLUG HOLE |
90950-01954 |
from US $1.79 |
||
|
9095006089
|
9095006089
90950-06089 Protector, Rear Body, No.1 |
90950-06089 |
US $2.87 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $1.08 |
||
