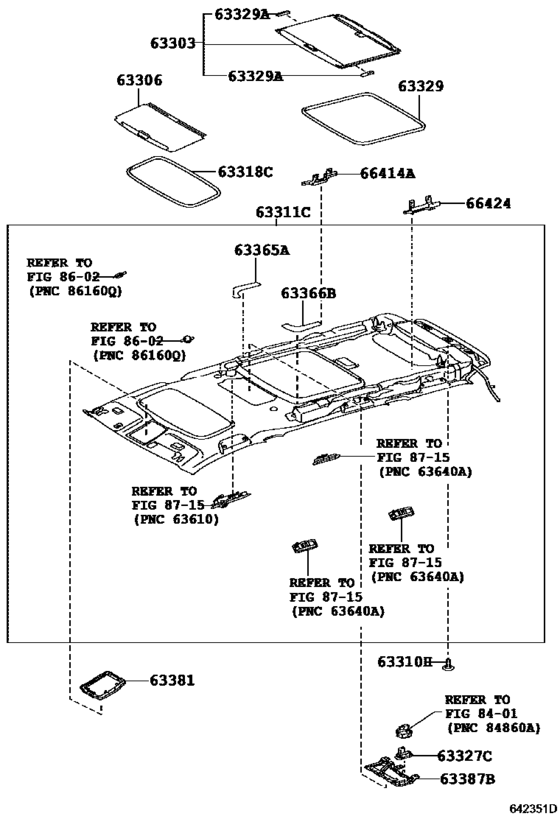

Roof Headlining & Silencer Pad ([08.2008 - ] W(TWIN MOON ROOF) (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63303
|
63303
63303-28071-E0 Trim Sub-Assy, Sunshade, No.2[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
63303-28071-E0 |
US $288.29 |
||
|
63306
|
63306
63306-28081-E0 Trim Sub-Assy, Sunshade[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
63306-28081-E0 |
US $187.82 |
||
|
63310H
|
63310H
90467-05021-E9 Clip, Roof Headlining[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
90467-05021-E9 |
US $1.93 |
||
|
63311C
|
63311C
63310-28X70-E0 Headlining, Roof[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
63310-28X70-E0 |
US $1,193.92 |
||
|
63318C
|
63318C
63318-28050-E0 Moulding, Sun Roof Opening Trim[04.2010 - 01.2014] ZRR70..S L=2520,GREGE,TRIM4# |
63318-28050-E0 |
US $25.48 |
||
|
63327C
|
63327C
63327-52010-E0 Garnish, Sun Roof Switch[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
63327-52010-E0 |
US $7.28 |
||
|
63329
|
63329
63329-28100-E0 Moulding, Sun Roof Opening Trim, No.2[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
63329-28100-E0 |
US $31.74 |
||
|
63329A
|
63329A
63329-35010 Stopper, Sunshade Lock[04.2010 - 01.2014] ZRR70..S |
63329-35010 |
US $94.64 |
||
|
63365A
|
63365A
63365-28040 Plate, Roof Headlining Set[04.2010 - 01.2014] ZRR70..S |
63365-28040 |
US $10.92 |
||
|
63366B
|
63366B
63366-28010 Plate, Roof Headlining Set, Lh[04.2010 - 01.2014] ZRR70..S |
63366-28010 |
US $15.29 |
||
|
63381
|
63381
63381-28090 Retainer, Headlining, Front[04.2010 - 01.2014] ZRR70..GEN |
63381-28090 |
US $30.28 |
||
|
63387B
|
63387B
63387-28050 Bracket, Roof Headlining Retainer[04.2010 - 01.2014] ZRR70..S |
63387-28050 |
US $29.41 |
||
|
66414A
|
66414A
66414-28040 Spacer, Side Rail, Rear Rh[04.2010 - 01.2014] ZRR70..GEN |
66414-28040 |
US $13.83 |
||
|
66424
|
66424
66424-28040 Spacer, Side Rail, Rear Lh[04.2010 - 01.2014] ZRR70..GEN |
66424-28040 |
US $13.83 |
