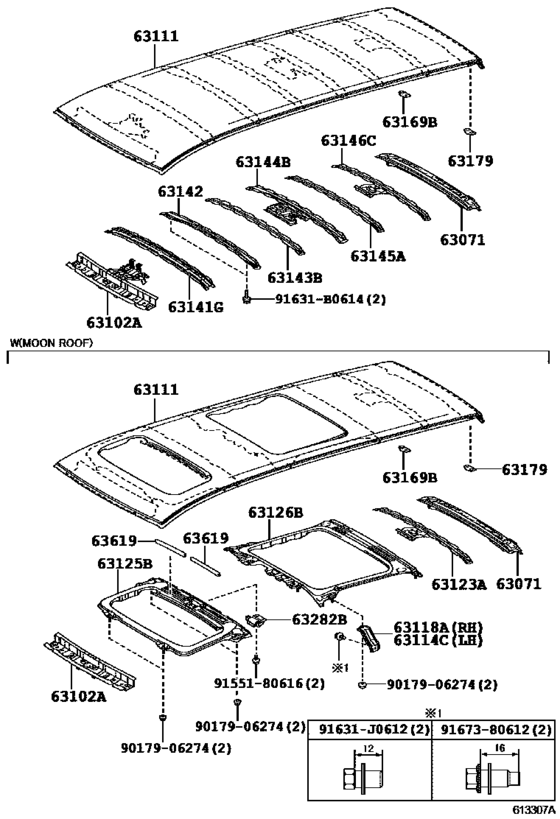

Roof Panel & Back Panel ([08.2008 - ] ROOF PANEL (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63071
|
63071
63071-28070 Frame Sub-Assy, Back Door Opening, Upper[04.2010 - 01.2014] ZRR70..GEN |
63071-28070 |
US $107.74 |
||
|
63102A
|
63102A
63102-28080 Panel Sub-Assy, Windshield HeaderWINDSHIELD HEADER [04.2010 - 01.2014] ZRR70..S |
63102-28080 |
US $47.76 |
||
|
63111
|
63111
63111-28290 Panel, Roof[04.2010 - 01.2014] ZRR70..S |
63111-28290 |
US $990.08 |
||
|
63114C
|
63114C
63118-28010 Support, Roof Panel, Front Lh[04.2010 - 01.2014] ZRR70..S |
63118-28010 |
US $7.13 |
||
|
63118A
|
63118A
63118-28010 Support, Roof Panel, Front Lh[04.2010 - 01.2014] ZRR70..S |
63118-28010 |
US $7.13 |
||
|
63123A
|
63123A
63128-28020 Reinforcement, Roof Panel, Rear No.1[04.2010 - 01.2014] ZRR70..S |
63128-28020 |
US $35.53 |
||
|
63125B
|
63125B
63125-28090 Reinforcement, Roof Panel, Front[04.2010 - 01.2014] ZRR70..S |
63125-28090 |
US $107.74 |
||
|
63126B
|
63126B
63126-28010 Reinforcement, Roof Panel, Rear No.2[04.2010 - 01.2014] ZRR70..S |
63126-28010 |
US $132.50 |
||
|
63169B
|
63169B
63169-35020 Plate, Roof Panel Reinforcement, Rh[04.2010 - 01.2014] ZRR70..GEN |
63169-35020 |
US $2.91 |
||
|
63179
|
63179
63179-35020 Plate, Roof Panel Reinforcement, Lh[04.2010 - 01.2014] ZRR70..GEN |
63179-35020 |
US $2.91 |
||
|
63282B
|
63282B
63282-44021 Striker, Tilt Roof Lock[04.2010 - 01.2014] ZRR70..S |
63282-44021 |
US $8.30 |
||
|
63619
|
63619
63619-28050 Cover, Tilt Roof Panel[04.2010 - 01.2014] ZRR70..S |
63619-28050 |
US $5.68 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
