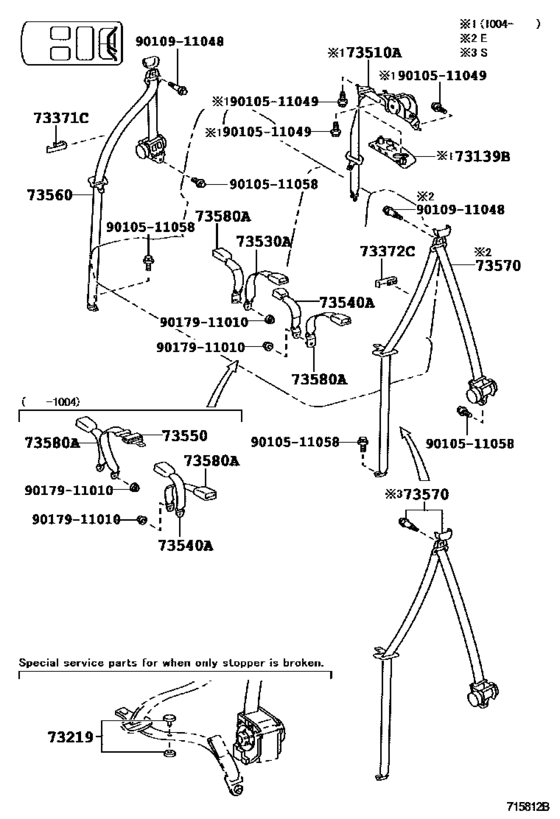

Seat Belt ([08.2008 - ] REAR NO.2 SEAT (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73139B
|
73139B
73139-28050-E0 Cover, Seat Belt Anchor[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73139-28050-E0 |
US $28.10 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[04.2010 - 01.2014] ZRR70..GEN BLACK |
73219-33010 |
from US $0.90 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[04.2010 - 01.2014] ZRR70..GEN GRAY |
73219-33020 |
from US $0.94 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[04.2010 - 01.2014] ZRR70..GEN BEIGE |
73219-33030 |
from US $0.92 |
||
|
73371C
|
73371C
73371-16050-E3 Hanger, Rear Seat Shoulder Belt, Rh[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73371-16050-E3 |
US $8.24 |
||
|
73372C
|
73372C
73371-16050-E3 Hanger, Rear Seat Shoulder Belt, Rh[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73371-16050-E3 |
US $8.24 |
||
|
73510A
|
73510A
73510-28130-E0 Belt Assy, Rear No.2 Seat, 3 Point Type[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73510-28130-E0 |
US $221.31 |
||
|
73530A
|
73530A
73530-28110-E0 Belt Assy, Rear No.2 Seat Lap Type, Rh[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73530-28110-E0 |
US $35.53 |
||
|
73540A
|
73540A
73540-28110-E0 Belt Assy, Rear No.2 Seat Lap Type, Lh[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73540-28110-E0 |
US $35.53 |
||
|
73560
|
73560
73560-28420-E0 Belt Assy, Rear No.2 Seat, Outer Rh[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73560-28420-E0 |
US $221.31 |
||
|
73570
|
73570
73570-28470-E0 Belt Assy, Rear No.2 Seat, Outer Lh[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
73570-28470-E0 |
US $221.31 |
||
|
73580A
|
73580A
73580-28230-E0 Belt Sub Assy, Rear No.2 Seat, Inner[04.2010 - 01.2014] ZRR70 GREGE,TRIM4# |
73580-28230-E0 |
US $35.53 |
||
|
9010511049
|
9010511049
90105-11049 New Genuine Part |
90105-11049 |
US $2.62 |
||
|
9010511058
|
9010511058
90105-11058 BOLT FLANGE |
90105-11058 |
from US $0.92 |
||
|
9010911048
|
9010911048
90109-11048 New Genuine Part |
90109-11048 |
US $5.38 |
||
|
9017911010
|
9017911010
90179-11010 NUT |
90179-11010 |
US $1.97 |
