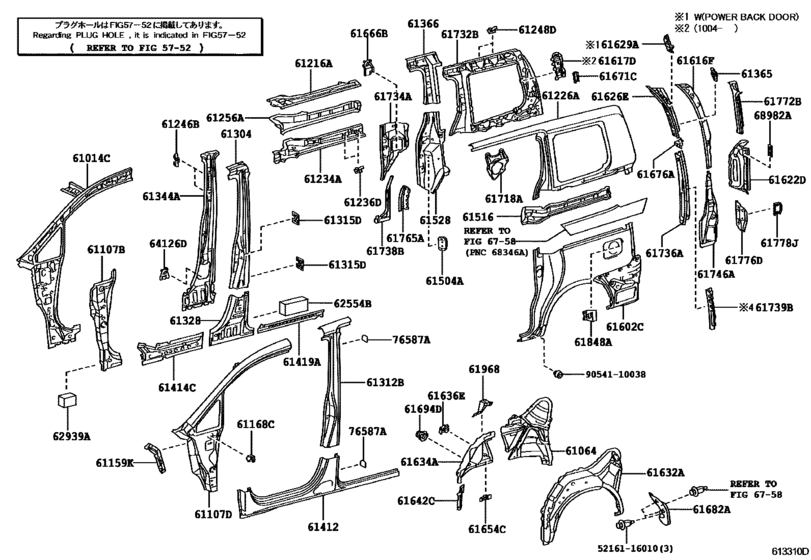

Side Member ([08.2008 - ] LH (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61014C
|
61014C
61014-28030 Panel Sub-Assy, Side, Inner Lh[04.2010 - 12.2016] ZRR70 |
61014-28030 |
US $246.06 |
||
|
61064
|
61064
61064-28120 Bracket, Sub-Assy, Rear Shock Absorber, Lh[04.2010 - 01.2014] ZRR70..GEN |
61064-28120 |
US $200.93 |
||
|
61107B
|
61107B
61107-28050 Reinforce Sub-Assy, Front Body Pillar, Upper Lh[04.2010 - 01.2014] ZRR70..GEN |
61107-28050 |
US $107.74 |
||
|
61107D
|
61107D
61107-28060 Pillar Sub-Assy, Front, Lh[04.2010 - 01.2014] ZRR70..GEN |
61107-28060 |
US $231.50 |
||
|
61159K
|
61159K
61159-28020 Extension, Front Piller, Lower Lh[04.2010 - 01.2014] ZRR70..GEN |
61159-28020 |
US $15 |
||
|
61168C
|
61168C
61168-28010 Bracket, No.6 Pillar Outer[04.2010 - 01.2014] ZRR70..GEN |
61168-28010 |
US $3.49 |
||
|
61216A
|
61216A
61216-28050 Rail, Roof Side, Outer Rear Lh[04.2010 - 01.2014] ZRR70..GEN |
61216-28050 |
US $58.39 |
||
|
61226A
|
61226A
61226-28020 Rail, Roof Side Outer Upper No.1, Lh[04.2010 - 01.2014] ZRR70..GEN |
61226-28020 |
US $219.86 |
||
|
61234A
|
61234A
61234-28140 Rail, Roof Side, Inner No.2 Lh[04.2010 - 01.2014] ZRR70..GEN |
61234-28140 |
US $70.32 |
||
|
61236D
|
61236D
61236-28050 Bracket, Assist Grip[04.2010 - 01.2014] ZRR70..GEN REAR |
61236-28050 |
US $6.99 |
||
|
61236D
|
61236D
61236-28060 Bracket, Assist Grip[04.2010 - 01.2014] ZRR70..GEN FRONT |
61236-28060 |
US $6.99 |
||
|
61246B
|
61246B
61245-28020 Bracket, Assist Grip, No.3 Rh[04.2010 - 01.2014] ZRR70..GEN |
61245-28020 |
US $3.20 |
||
|
61248D
|
61248D
61247-28040 Bracket, Assist Grip, Rh[04.2010 - 01.2014] ZRR70..GEN FRONT |
61247-28040 |
US $7.57 |
||
|
61248D
|
61248D
61247-28050 Bracket, Assist Grip, Rh[04.2010 - 01.2014] ZRR70..GEN REAR |
61247-28050 |
US $7.57 |
||
|
61256A
|
61256A
61256-28040 Plate, Roof Side Rail, Outer Lh[04.2010 - 01.2014] ZRR70..GEN |
61256-28040 |
US $77.17 |
||
|
61304
|
61304
61304-28030 Reinforce Sub-Assy, Center Body Pillar, Upper Lh[04.2010 - 01.2014] ZRR70..GEN |
61304-28030 |
US $254.80 |
||
|
61312B
|
61312B
61312-28140 Pillar, Center Body, Outer Lh[04.2010 - 01.2014] ZRR70..GEN |
61312-28140 |
US $189.28 |
||
|
61315D
|
61315D
61315-48010 Retainer, Door Lock Striker[04.2010 - 01.2014] ZRR70..GEN |
61315-48010 |
US $4.69 |
||
|
61328
|
61328
61328-28060 Reinforcement, Center Body Pillar, Outer Lh[04.2010 - 01.2014] ZRR70..GEN |
61328-28060 |
US $63.92 |
||
|
61344A
|
61344A
61344-28150 Pillar, Center Body, Inner Lh[04.2010 - 01.2014] ZRR70..GEN |
61344-28150 |
US $189.28 |
||
|
61365
|
61365
61365-60040 Reinforcement, Belt Anchor To Center Pillar[04.2010 - 01.2014] ZRR70..GEN |
61365-60040 |
US $5.97 |
||
|
61366
|
61366
61078-28120 Reinforce, Belt Anchor To Center Piller, No.3 Lh[04.2010 - 01.2014] ZRR70..GEN |
61078-28120 |
US $44.55 |
||
|
61412
|
61412
61412-28070 Panel, Rocker, Outer LhROCKER, OUTER LH [04.2010 - 01.2014] ZRR70..GEN |
61412-28070 |
US $228.48 |
||
|
61414C
|
61414C
61414-28050 Reinforcement, Rocker Panel, No.2 Lh[04.2010 - 01.2014] ZRR70..GEN |
61414-28050 |
US $59.99 |
||
|
61419A
|
61419A
61419-28020 Reinforcement, Rocker Panel, Lh[04.2010 - 01.2014] ZRR70..GEN |
61419-28020 |
US $36.84 |
||
|
61504A
|
61504A
61503-28100 Reinforce Sub-Assy, Slide Door Lock Striker, Rh[04.2010 - 01.2014] ZRR70..GEN |
61503-28100 |
US $12.38 |
||
|
61516
|
61516
61516-28060 Extension, Quarter Lock Pillar, Lh[04.2010 - 01.2014] ZRR70..GEN |
61516-28060 |
US $52.56 |
||
|
61528
|
61528
61528-28040 Reinforcement, Quarter Lock Piller, Lower Lh[04.2010 - 01.2014] ZRR70..GEN |
61528-28040 |
US $67.56 |
||
|
61602C
|
61602C
61602-28B10 Panel Sub-Assy, Quarter, Lh[04.2010 - 01.2014] ZRR70..S |
61602-28B10 |
US $870.48 |
||
|
61616F
|
61616F
61616-28090 Reinforcement, Rear Body Rear Side Panel, Lh[04.2010 - 01.2014] ZRR70..GEN |
61616-28090 |
US $69.60 |
||
|
61617D
|
61617D
61617-28040 Retainer, Back Door Bracket[04.2010 - 01.2014] ZRR70..S |
61617-28040 |
US $14.85 |
||
|
61622D
|
61622D
61622-28050 Trough, Back Door Opening, Lh[04.2010 - 01.2014] ZRR70..GEN |
61622-28050 |
US $40.44 |
||
|
61626E
|
61626E
61626-28110 Extension, Quarter Panel, Inner Rear Lh[04.2010 - 01.2014] ZRR70..GEN |
61626-28110 |
US $65.52 |
||
|
61629A
|
61629A
61629-28070 Reinforcement, Quarter Panel, Lh[04.2010 - 01.2014] ZRR70..S |
61629-28070 |
US $12.38 |
||
|
61632A
|
61632A
61632-28070 Panel, Quarter Wheel House, Outer Lh[04.2010 - 01.2014] ZRR70..GEN |
61632-28070 |
US $122.30 |
||
|
61634A
|
61634A
61634-28090 Panel, Quarter Wheel House, Inner Lh[04.2010 - 01.2014] ZRR70..GEN |
61634-28090 |
US $87.36 |
||
|
61636E
|
61636E
61636-28030 Extension, Quarter Wheel House, Lh[04.2010 - 01.2014] ZRR70..GEN |
61636-28030 |
US $8.74 |
||
|
61642C
|
61642C
61642-28020 Gusset, Quarter Wheel House, Front Lh[04.2010 - 01.2014] ZRR70..GEN |
61642-28020 |
US $14.41 |
||
|
61654C
|
61654C
61653-28050 Bracket, Deck Side Trim[04.2010 - 01.2014] ZRR70..GEN |
61653-28050 |
US $3.20 |
||
|
61666B
|
61666B
61666-28040 Reinforce, Seat Belt Anchorage To Quarter Wheel House, Lh[04.2010 - 01.2014] ZRR70..GEN |
61666-28040 |
US $9.17 |
||
|
61671C
|
61671C
61671-28060 Palte, Quarter Panel, Upper No.1[04.2010 - 01.2014] ZRR70..GEN |
61671-28060 |
US $7.43 |
||
|
61676A
|
61676A
61676-28070 Reinforce, Seat Belt Anchor, No.2 Upper Lh[04.2010 - 01.2014] ZRR70..GEN |
61676-28070 |
US $8.74 |
||
|
61682A
|
61682A
61682-28090 Extension, Rear Wheel Opening, Lh[04.2010 - 01.2014] ZRR70..S |
61682-28090 |
US $67.03 |
||
|
61694D
|
61694D
61693-28010 Bracket, Rear Wheel Opening, No.1[04.2010 - 01.2014] ZRR70..GEN |
61693-28010 |
US $6.70 |
||
|
61718A
|
61718A
61718-28050 Reinforcement, Quarter Panel Extension, Lh[04.2010 - 01.2014] ZRR70..GEN |
61718-28050 |
US $21.40 |
||
|
61732B
|
61732B
61732-28090 Panel, Roof Side, Inner Lh[04.2010 - 01.2014] ZRR70..GEN |
61732-28090 |
US $189.28 |
||
|
61734A
|
61734A
61734-28070 Panel, Roof Side, Inner Front Lh[04.2010 - 01.2014] ZRR70..GEN |
61734-28070 |
US $52.27 |
||
|
61736A
|
61736A
61736-28060 Panel, Roof Side, Inner Rear Lh[04.2010 - 01.2014] ZRR70..GEN |
61736-28060 |
US $115.02 |
||
|
61738B
|
61738B
61738-28020 Panel, Roof Side, Inner Lower Lh[04.2010 - 01.2014] ZRR70..GEN |
61738-28020 |
US $21.99 |
||
|
61739B
|
61739B
61739-28020 Reinforcement, Extension Quarter Inner Panel[04.2010 - 01.2014] ZRR70..GEN |
61739-28020 |
US $17.91 |
||
|
61746A
|
61746A
61746-28080 Reinforcement, Back Door Opening, Lower Lh[04.2010 - 01.2014] ZRR70..GEN |
61746-28080 |
US $72.60 |
||
|
61765A
|
61765A
61765-28100 Reinforcement, Seat Belt Anchor, No.2 Lh[04.2010 - 01.2014] ZRR70..GEN |
61765-28100 |
US $26.64 |
||
|
61772B
|
61772B
61772-28070 Frame, Back Door Opening Upper Corner, Lh[04.2010 - 01.2014] ZRR70..GEN |
61772-28070 |
US $39.89 |
||
|
61776D
|
61776D
61776-28120 Frame, Back Door Opening Side, Lh[04.2010 - 01.2014] ZRR70..GEN |
61776-28120 |
US $38.81 |
||
|
61778J
|
61778J
61777-28030 Retainer, Back Door Side Stopper, Rh[04.2010 - 01.2014] ZRR70..GEN |
61777-28030 |
US $7.35 |
||
|
61848A
|
61848A
61848-30070 Retainer, Quarter Panel, Lh[04.2010 - 01.2014] ZRR70..GEN |
61848-30070 |
US $5.38 |
||
|
61968
|
61968
61968-28040 Bracket, Rear Seat Leg, No.1 Lh[04.2010 - 01.2014] ZRR70..GEN |
61968-28040 |
US $12.52 |
||
|
62554B
|
62554B
62554-28030 Pad, Pillar, No.4[04.2010 - 01.2014] ZRR70..GEN |
62554-28030 |
US $7.72 |
||
|
62939A
|
62939A
62939-32020 Pad, Cowl Side Silencer[04.2010 - 01.2014] ZRR70..GEN |
62939-32020 |
US $6.70 |
||
|
64126D
|
64126D
64126-28040 Anchor, Pillar Seat Belt, Lh[04.2010 - 01.2014] ZRR70..GEN |
64126-28040 |
US $6.70 |
||
|
68982A
|
68982A
68981-95D01 Retainer, Back Door Stay, Rh[04.2010 - 01.2014] ZRR70..GEN |
68981-95D01 |
US $8.42 |
||
|
76587A
|
76587A
76587-28040 Protector, Center Pillar Outer[04.2010 - 01.2014] ZRR70..GEN |
76587-28040 |
US $8.42 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.50 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
9054110038
|
9054110038
90541-10038 Cushion, Back Door Stopper, No.2 |
90541-10038 |
from US $1.79 |
||
