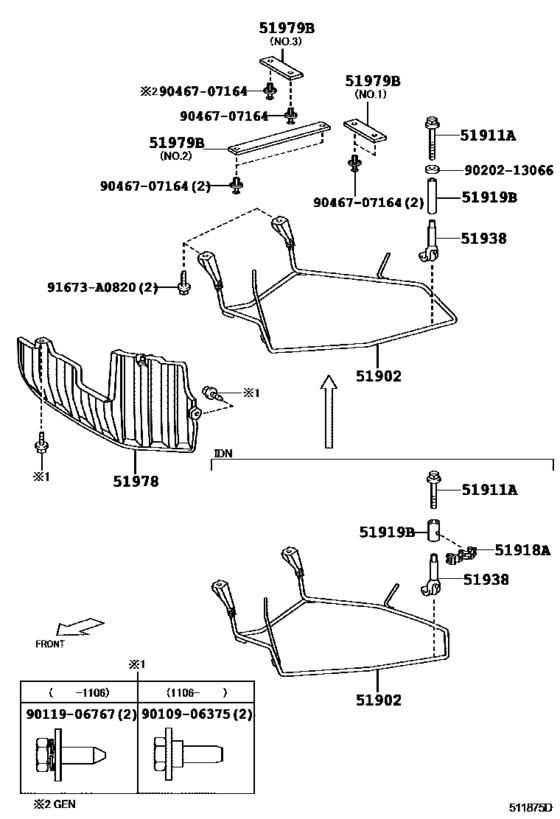

Spare Wheel Carrier ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51902
|
51902
51903-28070 Carrier Sub-Assy, Spare Wheel[04.2010 - 01.2014] ZRR70..GEN |
51903-28070 |
US $124.64 |
||
|
51911A
|
51911A
51911-28080 Bolt, Spare Wheel[04.2010 - 01.2014] ZRR70..GEN |
51911-28080 |
US $26.71 |
||
|
51919B
|
51919B
51919-28050 Spacer, Spare Wheel Carrier[04.2010 - 01.2014] ZRR70..GEN |
51919-28050 |
US $12.19 |
||
|
51938
|
51938
51938-44010 Lock, Spare Wheel Carrier[04.2010 - 01.2014] ZRR70..GEN |
51938-44010 |
from US $9.34 |
||
|
51978
|
51978
51978-28020 Protector, Spare Wheel Carrier[04.2010 - 06.2011] ZRR70 |
51978-28020 |
US $51.83 |
||
| replacements | |||||
|
51978
|
51978
51978-28021 Protector, Spare Wheel Carrier[04.2010 - 06.2011] ZRR70 |
51978-28021 |
US $43.10 |
||
|
51978
|
51978
90109-06375 BOLT[04.2010 - 06.2011] ZRR70 |
90109-06375 |
from US $0.78 |
||
|
51978
|
51978
51978-28021 Protector, Spare Wheel Carrier[06.2011 - 01.2014] ZRR70..GEN |
51978-28021 |
US $43.10 |
||
|
51979B
|
51979B
51979-28040 Cushion, Spare Wheel Carrier Protector[04.2010 - 01.2014] ZRR70..GEN NO.1:REFER ILLUST. |
51979-28040 |
US $3.06 |
||
|
51979B
|
51979B
51979-28050 Cushion, Spare Wheel Carrier Protector[04.2010 - 01.2014] ZRR70..GEN NO.2:REFER ILLUST. |
51979-28050 |
US $5.10 |
||
|
91673A0820
|
91673A0820
91673-A0820 BOLT FLANGE |
91673-A0820 |
US $1.43 |
||
|
9010906375
|
9010906375
90109-06375 BOLT |
90109-06375 |
from US $0.78 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.68 |
||
|
9020213066
|
9020213066
90202-13066 Plate, Spare Wheel Carrier Lock |
90202-13066 |
from US $1.54 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
