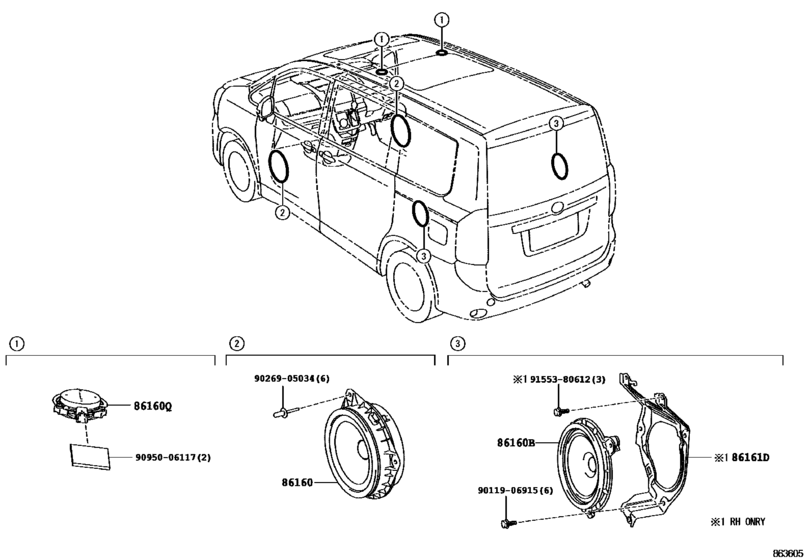

Speaker ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-22A10 Speaker Assy, Front No.1[04.2010 - 09.2011] ZRR70 |
86160-22A10 |
US $161.60 |
||
|
86160
|
86160
86160-52300 Speaker Assy, Front No.1[10.2011 - 01.2014] ZRR70..GEN |
86160-52300 |
from US $92.22 |
||
|
86160B
|
86160B
86160-28720 Speaker Assy, Rear[04.2010 - 01.2014] ZRR70..GEN |
86160-28720 |
US $101.92 |
||
|
86160Q
|
86160Q
86160-28660 Speaker Assy, Roof[04.2010 - 12.2016] ZRR70 |
86160-28660 |
from US $78.62 |
||
|
86161D
|
86161D
86161-28070 Bracket, Speaker Mounting, No.1[04.2010 - 01.2014] ZRR70..GEN |
86161-28070 |
US $21.40 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $1.21 |
||
|
9095006117
|
9095006117
90950-06117 Plug (For Roll Over Garnish) |
90950-06117 |
US $4.48 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
