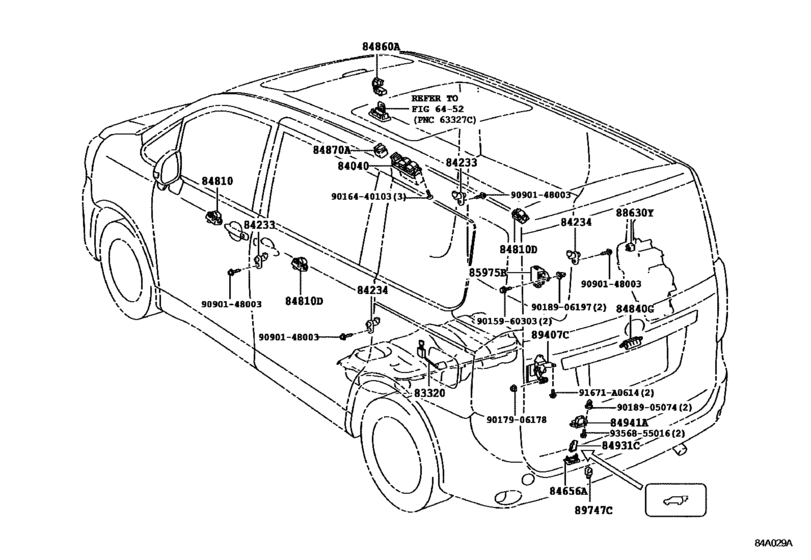

Switch & Relay & Computer ([08.2008 - ] DOOR,ROOF,FLOOR & BACK DOOR (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-28530 Gage Assy, Fuel Sender[04.2010 - 12.2016] ZRR70 |
83320-28530 |
US $72.91 |
||
|
84040
|
84040
84040-33080 Master Switch Assy, Power window regulator[04.2010 - 01.2014] ZRR70..GEN |
84040-33080 |
from US $177.22 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[04.2010 - 01.2014] ZRR70..GEN |
84231-53010 |
from US $11.83 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[04.2010 - 01.2014] ZRR70..GEN |
84231-53010 |
from US $11.83 |
||
|
84656A
|
84656A
84656-28110-E0 Bezel, Switch[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
84656-28110-E0 |
US $7.57 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[04.2010 -] ZRR70 |
84810-33120 |
from US $48.79 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[04.2010 -] ZRR70 |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[04.2010 - 12.2016] ZRR70 |
84810-33120 |
from US $48.79 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[04.2010 - 12.2016] ZRR70 |
84810-06090 |
US $211.68 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[04.2010 - 01.2014] ZRR70..GEN |
84840-28040 |
from US $54.27 |
||
|
84860A
|
84860A
84860-28070-E0 Switch Assy, Sliding Roof[04.2010 - 01.2014] ZRR70..S GREGE,TRIM4# |
84860-28070-E0 |
US $37.27 |
||
|
84870A
|
84870A
84872-28020 Switch Assy, Outer Mirror[04.2010 - 01.2014] ZRR70..GEN |
84872-28020 |
US $116.44 |
||
|
84931C
|
84931C
84930-58010 Switch Assy, Door Control[04.2010 - 01.2014] ZRR70..S |
84930-58010 |
US $59.47 |
||
|
84941A
|
84941A
84941-58010 Base, Switch[04.2010 - 01.2014] ZRR70..S |
84941-58010 |
from US $13.98 |
||
|
88630Y
|
88630Y
90987-04010 Relay Assy (For Heater Blower Motor)[04.2010 - 01.2014] ZRR70..GEN |
90987-04010 |
from US $47.21 |
||
|
89407C
|
89407C
89407-44010 Sensor Sub-Assy, Height Control, Rear Rh[04.2010 - 01.2014] ZRR70..S |
89407-44010 |
US $541.32 |
||
|
89747C
|
89747C
89747-58010 Buzzer Assy, Vacuum Warning[04.2010 - 01.2014] ZRR70..S |
89747-58010 |
US $38.23 |
||
|
91671A0614
|
91671A0614
91671-A0614 Bolt |
91671-A0614 |
US $1.08 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9018905074
|
9018905074
90189-05074 New Genuine Part |
90189-05074 |
US $1.61 |
||
|
9018906197
|
9018906197
90189-06197 GROMMET SCREW |
90189-06197 |
from US $0.74 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
