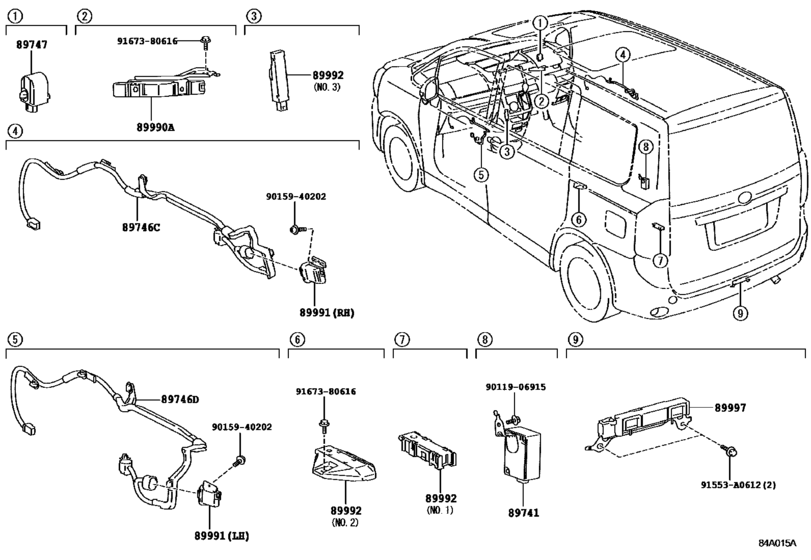

Wireless Door Lock ([08.2008 - ] (0808- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRR70
- grade
- S
- ENGINE
- 3ZRFAE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- NOAH
- From
- 04.2010
- To
- 01.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- NOAH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89741
|
89741
89740-28070
Receiver, Door Control
[04.2010 - 01.2014] ZRR70..GEN |
89740-28070 |
— | ||
|
89746C
|
89746C
89746-28080 Harness, Electrical Key Wire, No.1[04.2010 - 01.2014] ZRR70..GEN |
89746-28080 |
US $48.05 |
||
|
89746D
|
89746D
89746-28090 Harness, Electrical Key Wire, No.2[04.2010 - 01.2014] ZRR70..GEN |
89746-28090 |
US $48.05 |
||
|
89747
|
89747
89747-52010 Buzzer, Wireless Door Lock[04.2010 - 01.2014] ZRR70..GEN |
89747-52010 |
from US $29.60 |
||
|
89990A
|
89990A
89990-28150
Computer Assy, Smart Key
[04.2010 - 10.2011] ZRR70 |
89990-28150 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28153
Computer Assy, Smart Key
[04.2010 - 10.2011] ZRR70 |
89990-28153 |
— | ||
|
89990A
|
89990A
89990-28151
Computer Assy, Smart Key
[11.2011 - 11.2012] ZRR70 |
89990-28151 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28153
Computer Assy, Smart Key
[11.2011 - 11.2012] ZRR70 |
89990-28153 |
— | ||
|
89990A
|
89990A
89990-28152
Computer Assy, Smart Key
[12.2012 - 01.2014] ZRR70..GEN |
89990-28152 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28153
Computer Assy, Smart Key
[12.2012 - 01.2014] ZRR70..GEN |
89990-28153 |
— | ||
|
89991
|
89991
89991-28020 Oscillator, Door Electrical Key[04.2010 - 01.2014] ZRR70..GEN RH |
89991-28020 |
US $195.20 |
||
|
89991
|
89991
89991-28030 Oscillator, Door Electrical Key[04.2010 - 01.2014] ZRR70..GEN LH |
89991-28030 |
US $123.76 |
||
|
89992
|
89992
89992-28010 Oscillator, Indoor Electrical Key[04.2010 - 01.2014] ZRR70..GEN NO.1 |
89992-28010 |
US $163.07 |
||
|
89992
|
89992
89992-28051 Oscillator, Indoor Electrical Key[04.2010 - 01.2014] ZRR70..GEN NO.2 |
89992-28051 |
US $180.54 |
||
|
89992
|
89992
89992-52020 Oscillator, Indoor Electrical Key[04.2010 - 01.2014] ZRR70..GEN NO.3 |
89992-52020 |
US $163.07 |
||
|
89997
|
89997
89997-28020 Antenna, Electrical Key[04.2010 - 01.2014] ZRR70..GEN |
89997-28020 |
US $106.60 |
||
|
91553A0612
|
91553A0612
91553-A0612 New Genuine Part |
91553-A0612 |
US $1.08 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $1.08 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
