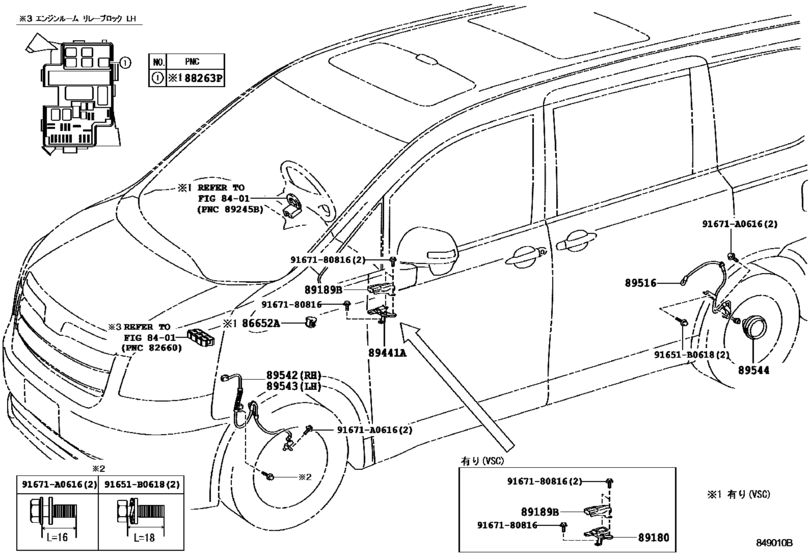

Abs & Vsc ([06.2007 - ] (0706- )ZRR70) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2007 - 2010
- Sales region
- Japan
- Frame
- ZRR70
- grade
- Z
- ENGINE
- 3ZRFE
- Model
- VOXY
- From
- 06.2007
- To
- 04.2010
- Seating Capacity
- 08S
- Vehicle Model
- VOXY
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-50010 Buzzer Assy[06.2007 - 04.2010] ZRR7#..CBU,IV5 ＶＳＣ−有り |
86652-50010 |
from US $31.45 |
||
|
88263P
|
88263P
90987-04004 Relay, Starter Cut[06.2007 - 04.2010] ZRR7#..CBU,IV5 ＶＳＣ−有り |
90987-04004 |
US $42.71 |
||
|
89180
|
89180
89180-28030 Sensor Assy, Yawrate[06.2007 - 02.2010] ZRR7#..CBU,IV5 ＶＳＣ−有り |
89180-28030 |
US $1,340.98 |
||
| replacement | |||||
|
89180
|
89180
89180-28060 Sensor Assy, Yawrate[06.2007 - 02.2010] ZRR7#..CBU,IV5 ＶＳＣ−有り |
89180-28060 |
US $1,116.75 |
||
|
89180
|
89180
89180-28060 Sensor Assy, Yawrate[03.2010 - 04.2010] ZRR7#..CBU,IV5 ＶＳＣ−有り |
89180-28060 |
US $1,116.75 |
||
|
89189B
|
89189B
89189-28020 Bracket, Yawrate Sensor[06.2007 - 04.2010] ZRR7#..CBU,IV5 |
89189-28020 |
US $12.52 |
||
|
89441A
|
89441A
89440-28090 Sensor, Deceleration[06.2007 - 04.2010] ZRR7#..CBU,IV5 |
89440-28090 |
US $338.96 |
||
|
89516
|
89516
89516-28070 Wire, Skid Control Sensor[06.2007 - 04.2010] ZRR70..CBU,IV5 右側 |
89516-28070 |
US $43.32 |
||
|
89516
|
89516
89516-28080 Wire, Skid Control Sensor[06.2007 - 04.2010] ZRR70..CBU,IV5 左側 |
89516-28080 |
US $43.32 |
||
|
89542
|
89542
89542-28110
Sensor, Speed, Front Rh
[06.2007 - 04.2010] ZRR7#..CBU,IV5 |
89542-28110 |
— | ||
| replacement | |||||
|
89542
|
89542
89542-28160 Sensor, Speed, Front Rh[06.2007 - 04.2010] ZRR7#..CBU,IV5 |
89542-28160 |
US $133.20 |
||
|
89543
|
89543
89543-28110
Sensor, Speed, Front Lh
[06.2007 - 04.2010] ZRR7#..CBU,IV5 |
89543-28110 |
— | ||
| replacement | |||||
|
89543
|
89543
89543-28160 Sensor, Speed, Front Lh[06.2007 - 04.2010] ZRR7#..CBU,IV5 |
89543-28160 |
US $133.20 |
||
|
89544
|
89544
89544-52040 Sensor, Skid Control[06.2007 - 04.2010] ZRR70..CBU,IV5 |
89544-52040 |
from US $160.99 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.66 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.88 |
||
