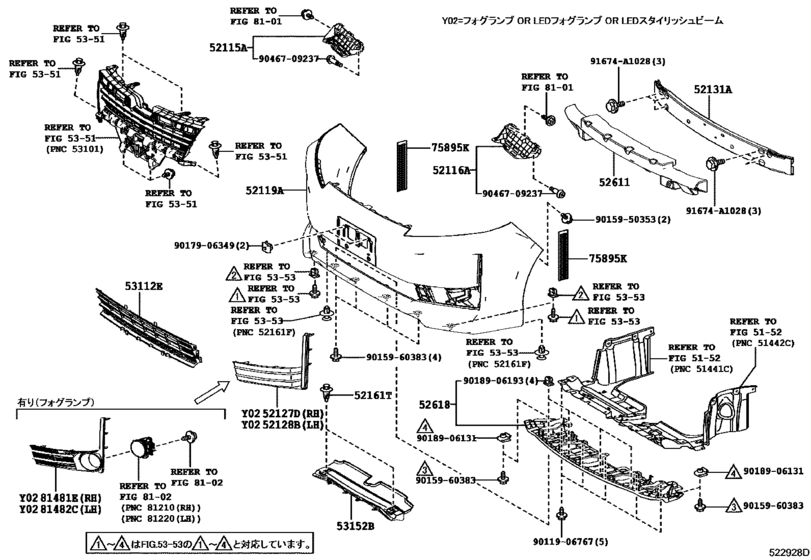

Front Bumper & Bumper Stay ([01.2014 - ] (1401- )VOXY..V,X) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- VOXY
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- VOXY
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115A
|
52115A
52115-28240 Support, Front Bumper Side, Rh[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) |
52115-28240 |
US $61.41 |
||
|
52116A
|
52116A
52116-28220 Support, Front Bumper Side, Lh[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) |
52116-28220 |
US $61.41 |
||
|
52119A
|
52119A
52119-28G90-A0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) WHITE PEARL CS.,070 |
52119-28G90-A0 |
US $1,034.96 |
||
|
52119A
|
52119A
52119-28G90-B0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) SILVER ME.,1F7 |
52119-28G90-B0 |
US $1,034.96 |
||
|
52119A
|
52119A
52119-28G90-C0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) BLACKISH AGEHA M.M.,221 |
52119-28G90-C0 |
US $1,034.96 |
||
|
52119A
|
52119A
52119-28G90-C1 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) BLACK,202 |
52119-28G90-C1 |
US $1,034.96 |
||
|
52119A
|
52119A
52119-28G90-H0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) OCEAN MINT ME.,789 |
52119-28G90-H0 |
US $1,034.96 |
||
|
52119A
|
52119A
52119-28G90-K0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) DK.VIOLET M.M.,9AF |
52119-28G90-K0 |
US $1,034.96 |
||
|
52127D
|
52127D
52127-28500 Cover, Front Bumper Hole, Rh[01.2014 -] ZRR8#,ZWR80..VOXY..X |
52127-28500 |
US $70.22 |
||
|
52128B
|
52128B
52128-28250 Cover, Front Bumper Hole, Lh[01.2014 -] ZRR8#,ZWR80..VOXY..X |
52128-28250 |
US $70.22 |
||
|
52131A
|
52131A
52131-28170 Reinforcement, Front Bumper[01.2014 -] ZRR8#,ZWR80 |
52131-28170 |
US $156.96 |
||
|
52161T
|
52161T
52161-16010 Clip[01.2014 -] ZRR8#,ZWR80 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161T
|
52161T
52161-0K040 Clip[01.2014 -] ZRR8#,ZWR80 |
52161-0K040 |
from US $1.50 |
||
|
52161T
|
52161T
52161-02020 Clip[01.2014 -] ZRR8#,ZWR80 |
52161-02020 |
US $5.27 |
||
|
52611
|
52611
52611-28110 Absorber, Front Bumper Energy[01.2014 -] ZRR8#,ZWR80 |
52611-28110 |
US $124.32 |
||
|
52618
|
52618
52618-28030 Absorber, Front Bumper, Lower[01.2014 -] ZRR8#,ZWR80 |
52618-28030 |
US $127.28 |
||
|
53112E
|
53112E
53112-28240 Grille, Radiator, Lower No.1[01.2014 -] ZRR8#,ZWR80..VOXY..(V,X) |
53112-28240 |
US $112.48 |
||
|
53152B
|
53152B
53152-28040 Guide, Radiator Grille Air[01.2014 -] ZRR8#,ZWR80..G,GI,V,X,XI |
53152-28040 |
US $60.34 |
||
|
75895K
|
75895K
75895-28010 Tape, Moulding, No.2[01.2014 -] ZRR8#,ZWR80 |
75895-28010 |
US $23.10 |
||
|
81481E
|
81481E
52127-28490 Cover, Fog Lamp, Rh[01.2014 -] ZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X フロントフォグランプ−有り（ＤＯＰ） |
52127-28490 |
US $70.22 |
||
|
81482C
|
81482C
52128-28240 Cover, Fog Lamp, Lh[01.2014 -] ZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X フロントフォグランプ−有り（ＤＯＰ） |
52128-28240 |
US $70.22 |
||
|
91674A1028
|
91674A1028
91674-A1028 BOLT FLANGE |
91674-A1028 |
from US $1.21 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.66 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.38 |
||
|
9018906131
|
9018906131
90189-06131 GROMMET SCREW |
90189-06131 |
from US $0.86 |
||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.80 |
||
|
9046709237
|
9046709237
90467-09237 Clip, Rear Bumper Side |
90467-09237 |
from US $0.90 |
||
