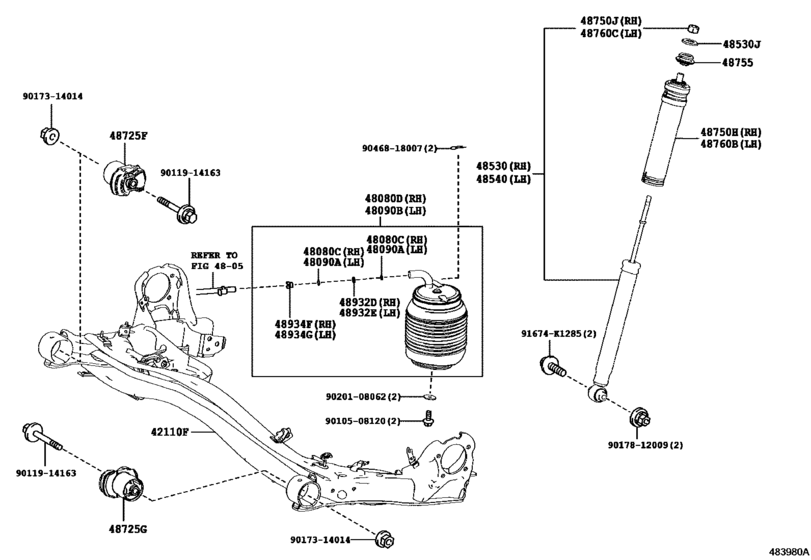

Rear Spring & Shock Absorber ([01.2014 - ] (1401- )IV5) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- XI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- IV5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42101-28470 Beam Assy, Rear Axle[01.2014 -] ZRR8#,ZWR80 |
42101-28470 |
US $889 |
||
|
48080C
|
48080C
90301-04011 Ring, O(For Front Pneumatic Cylinder Rh)[01.2014 -] ZRR8#..IV5 |
90301-04011 |
from US $2.24 |
||
|
48080D
|
48080D
48080-28010 Cylinder Assy, Pneumatic, Rear Rh[01.2014 -] ZRR8#..IV5 |
48080-28010 |
US $498.40 |
||
|
48090A
|
48090A
90301-04011 Ring, O(For Front Pneumatic Cylinder Rh)[01.2014 -] ZRR8#..IV5 |
90301-04011 |
from US $2.24 |
||
|
48090B
|
48090B
48090-28010 Cylinder Assy, Pneumatic, Rear Lh[01.2014 -] ZRR8#..IV5 |
48090-28010 |
US $498.40 |
||
|
48530
|
48530
48531-80789 Absorber Assy, Shock, Rear Rh[01.2014 -] ZRR80..(X,XI)..IV5 マーク ４８５３１−２８８２０ |
48531-80789 |
US $180 |
||
|
48530J
|
48530J
90948-02192 Retainer, Cushion, No.1(For Rear Shock Absorber)[01.2014 -] ZRR8#,ZWR80 |
90948-02192 |
from US $4.48 |
||
|
48540
|
48540
48531-80789 Absorber Assy, Shock, Rear Rh[01.2014 -] ZRR80..(X,XI)..IV5 マーク ４８５３１−２８８２０ |
48531-80789 |
US $180 |
||
|
48725F
|
48725F
48725-28080 Bush, Rear Axle Carrier[01.2014 -] ZRR8#,ZWR80 |
48725-28080 |
from US $44.08 |
||
|
48725G
|
48725G
48725-28080 Bush, Rear Axle Carrier[01.2014 -] ZRR8#,ZWR80 |
48725-28080 |
from US $44.08 |
||
|
48750H
|
48750H
48750-28030 Support Assy, Rear Suspension, Rh[01.2014 - 11.2015] ZRR8#..IV5 |
48750-28030 |
US $27.66 |
||
|
48750H
|
48750H
48750-28031 Support Assy, Rear Suspension, Rh[11.2015 -] ZRR8#..IV5 |
48750-28031 |
US $28.27 |
||
|
48750J
|
48750J
90177-12002 Nut[01.2014 -] ZRR8#,ZWR80 |
90177-12002 |
US $1.44 |
||
|
48755
|
48755
48755-28020 Support, Rear Suspension[01.2014 - 11.2015] ZRR8#,ZWR80 |
48755-28020 |
US $13.12 |
||
|
48755
|
48755
90905-40019 Cushion, Rear Shock Absorber, No.1[11.2015 -] ZRR8#,ZWR80 |
90905-40019 |
from US $7.84 |
||
|
48760B
|
48760B
48750-28030 Support Assy, Rear Suspension, Rh[01.2014 - 11.2015] ZRR8#..IV5 |
48750-28030 |
US $27.66 |
||
|
48760B
|
48760B
48750-28031 Support Assy, Rear Suspension, Rh[11.2015 -] ZRR8#..IV5 |
48750-28031 |
US $28.27 |
||
|
48760C
|
48760C
90177-12002 Nut[01.2014 -] ZRR8#,ZWR80 |
90177-12002 |
US $1.44 |
||
|
48932D
|
48932D
48932-30010 Plate, Height Control Tube[01.2014 -] ZRR8#..IV5 |
48932-30010 |
US $2.08 |
||
|
48932E
|
48932E
48932-30010 Plate, Height Control Tube[01.2014 -] ZRR8#..IV5 |
48932-30010 |
US $2.08 |
||
|
48934F
|
48934F
48934-30010 Plug, Height Control[01.2014 -] ZRR8#..IV5 |
48934-30010 |
from US $1.79 |
||
|
48934G
|
48934G
48934-30010 Plug, Height Control[01.2014 -] ZRR8#..IV5 |
48934-30010 |
from US $1.79 |
||
|
91674K1285
|
91674K1285
91674-K1285 New Genuine Part |
91674-K1285 |
US $5.44 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9011914163
|
9011914163
90119-14163 New Genuine Part |
90119-14163 |
US $7.84 |
||
|
9017314014
|
9017314014
90173-14014 New Genuine Part |
90173-14014 |
US $2.56 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9020108062
|
9020108062
90201-08062 Retainer(For Load Sensing Spring Shackle) |
90201-08062 |
US $3.04 |
||
|
9046818007
|
9046818007
90468-18007 New Genuine Part |
90468-18007 |
US $1.60 |
