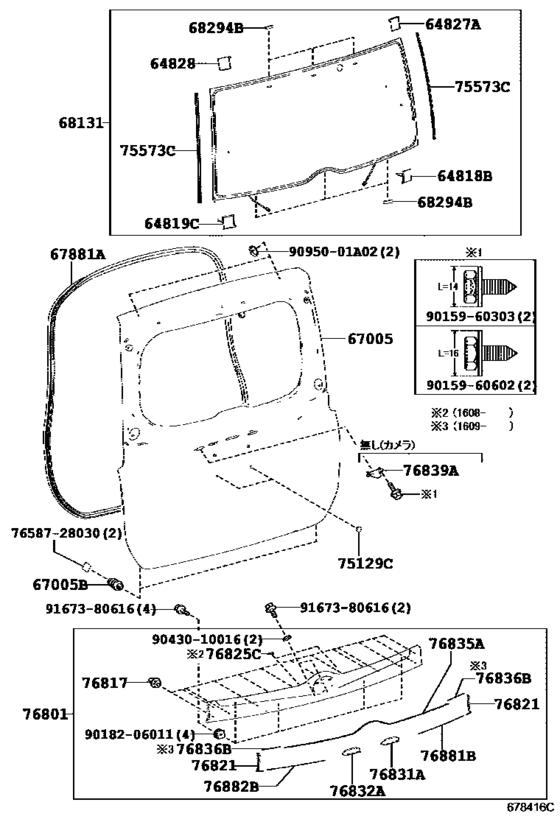

Back Door Panel & Glass ([10.2014 - ] ﾄﾞｱﾊﾟﾈﾙ (1410- )ESQIR) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64818B
|
64818B
64818-28040 Spacer, Back Door Glass, No.1[01.2014 -] ZRR8#,ZWR80 |
64818-28040 |
US $4.16 |
||
|
64819C
|
64819C
64819-28040 Spacer, Back Door Glass, No.2[01.2014 -] ZRR8#,ZWR80 |
64819-28040 |
US $4.16 |
||
|
64827A
|
64827A
64827-28060 Clip, Back Window Glass, Rh[01.2014 -] ZRR8#,ZWR80 |
64827-28060 |
US $3.52 |
||
|
64828
|
64828
64828-28050 Clip, Back Window Glass, Lh[01.2014 -] ZRR8#,ZWR80 |
64828-28050 |
US $3.52 |
||
|
67005
|
67005
67005-28D30
Panel Sub-Assy, Back Door
[01.2014 - 01.2017] ZRR8#,ZWR80..(ESQIR,VOXY)..(GI,V,X,XI) |
67005-28D30 |
— | ||
| replacement | |||||
|
67005
|
67005
67500-28A40 Panel Sub-Assy, Back Door[01.2014 - 01.2017] ZRR8#,ZWR80..(ESQIR,VOXY)..(GI,V,X,XI) |
67500-28A40 |
US $1,059.44 |
||
|
67005
|
67005
67005-28D31 Panel Sub-Assy, Back Door[01.2017 -] ZRR8#,ZWR80..(ESQIR,VOXY)..(GI,V,X,XI) |
67005-28D31 |
US $1,059.44 |
||
|
67005B
|
67005B
90541-10042 Cushion(For Back Door Panel)[01.2014 -] ZRR8#,ZWR80 |
90541-10042 |
from US $2.54 |
||
|
67881A
|
67881A
67881-28140 Weatherstrip, Back Door[01.2014 -] ZRR8#,ZWR80..CBU |
67881-28140 |
US $130.24 |
||
|
68131
|
68131
68105-28700 Glass, Back Door[01.2014 -] ZRR8#,ZWR80 |
68105-28700 |
US $497.99 |
||
|
68294B
|
68294B
68294-26030 Dam, Side Lower WindowBACK DOOR GLASS ADHESIVE [01.2014 -] ZRR8#,ZWR80 |
68294-26030 |
from US $2.30 |
||
|
75129C
|
75129C
75129-26010 Cushion, Rear Licence Plate[01.2014 -] ZRR8#,ZWR80 |
75129-26010 |
US $1.60 |
||
|
75573C
|
75573C
75573-28050 Moulding, Back Window, Outside[01.2014 -] ZRR8#,ZWR80 |
75573-28050 |
US $14.24 |
||
|
76801
|
76801
76801-28500 Garnish Sub-Assy, Back Door, Outside[10.2014 -] ZRR8#,ZWR80..ESQIR |
76801-28500 |
US $339.25 |
||
|
76801
|
76801
76801-28540 Garnish Sub-Assy, Back Door, Outside[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ） |
76801-28540 |
US $339.25 |
||
|
76817
|
76817
90467-09206 Clip, Front Air Shutter Seal[01.2014 -] ZRR8#,ZWR80..ESQIR,VOXY |
90467-09206 |
from US $0.49 |
||
|
76821
|
76821
76821-28040 Protector, Back Door Garnish Moulding, Upper[10.2014 -] ZRR8#,ZWR80..ESQIR 右側 |
76821-28040 |
US $11.04 |
||
|
76821
|
76821
76822-28040 Protector, Back Door Garnish Moulding, Upper[10.2014 -] ZRR8#,ZWR80..ESQIR 左側 |
76822-28040 |
US $11.04 |
||
|
76825C
|
76825C
76825-28110 Protector, Back Door Outside Garnish[08.2016 -] ZRR8#,ZWR80 ３０ Ｘ ４ Ｘ ５ |
76825-28110 |
US $11.04 |
||
|
76831A
|
76831A
76831-28010 Cover, Back Door Finish Panel, Rh[01.2014 -] ZRR8#,ZWR80 |
76831-28010 |
US $9.12 |
||
|
76832A
|
76832A
76832-28010 Cover, Back Door Finish Panel, Lh[01.2014 -] ZRR8#,ZWR80 |
76832-28010 |
US $9.12 |
||
|
76835A
|
76835A
76835-28020 Protector, Back Door Finish Panel, No.1[01.2014 - 06.2016] ZRR8#,ZWR80..ESQIR,VOXY |
76835-28020 |
US $5.53 |
||
| replacements | |||||
|
76835A
|
76835A
76825-28110 Protector, Back Door Outside Garnish[01.2014 - 06.2016] ZRR8#,ZWR80..ESQIR,VOXY |
76825-28110 |
US $11.04 |
||
|
76835A
|
76835A
76835-28050 Protector, Back Door Finish Panel, No.1[01.2014 - 06.2016] ZRR8#,ZWR80..ESQIR,VOXY |
76835-28050 |
US $16.26 |
||
|
76835A
|
76835A
76835-28050 Protector, Back Door Finish Panel, No.1[06.2016 -] ZRR8#,ZWR80 |
76835-28050 |
US $16.26 |
||
|
76836B
|
76836B
76836-28050 Protector, Back Door Finish Panel, No.2[09.2016 -] ZRR8#,ZWR80..ESQIR |
76836-28050 |
US $11.04 |
||
|
76839A
|
76839A
76839-28060 Cover, Back Door Garnish[01.2014 -] ZRR8#,ZWR80; ZRR8# オーディオ−有り（ナビゲーションシステム） |
76839-28060 |
US $9.44 |
||
|
76881B
|
76881B
76881-28030 Protector, Back Door Lower Moulding, Rh[10.2014 -] ZRR8#,ZWR80..ESQIR |
76881-28030 |
US $3.79 |
||
|
76882B
|
76882B
76881-28030 Protector, Back Door Lower Moulding, Rh[10.2014 -] ZRR8#,ZWR80..ESQIR |
76881-28030 |
US $3.79 |
||
|
9095001A02
|
9095001A02
90950-01A02 PLUG HOLE |
90950-01A02 |
US $1.60 |
||
|
7658728030
|
7658728030
76587-28030 Protector, Center Pillar Outer |
76587-28030 |
US $6.88 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.12 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9018206011
|
9018206011
90182-06011 NUT WWASHER |
90182-06011 |
US $1.60 |
||
|
9043010016
|
9043010016
90430-10016 New Genuine Part |
90430-10016 |
US $1.28 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
