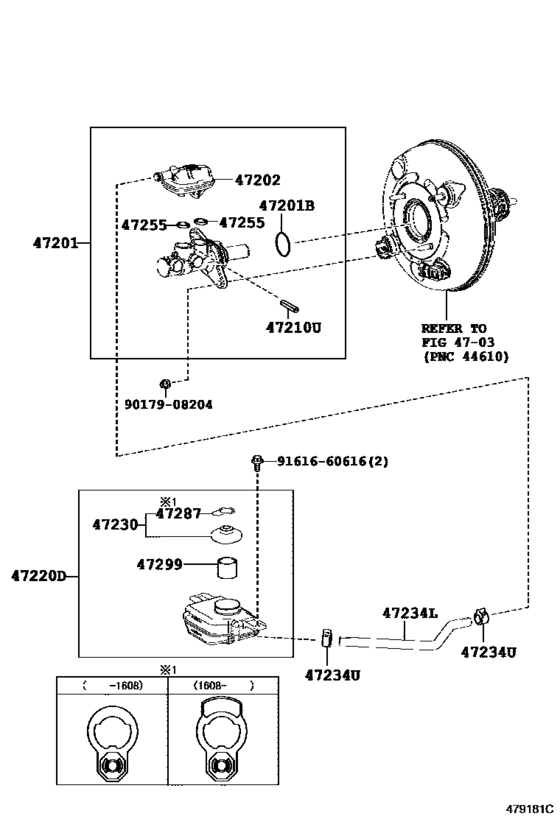

Brake Master Cylinder ([01.2014 - ] (1401- )ZRR8#) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-28730 Cylinder Sub-Assy, Brake Master[01.2014 - 06.2017] ZRR8# |
47201-28730 |
US $313.60 |
||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[01.2014 - 06.2017] ZRR8# |
90015-AH002 |
US $3.20 |
||
|
47202
|
47202
47220-28330 Reservoir Sub-Assy, Brake Master Cylinder[01.2014 - 06.2017] ZRR8# |
47220-28330 |
US $12.23 |
||
|
47210U
|
47210U
90029-15803 Ring Pin, Brake Master Cylinder[01.2014 - 06.2017] ZRR8# |
90029-15803 |
US $1.05 |
||
|
47220D
|
47220D
47220-28340 Reservoir Assy, Brake Master Cylinder[01.2014 - 06.2017] ZRR8# |
47220-28340 |
US $80.52 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[01.2014 - 06.2017] ZRR8#,ZWR80 |
47230-20140 |
from US $7.22 |
||
|
47234L
|
47234L
47234-28210 Hose, Reservoir, No.1[01.2014 - 06.2017] ZRR8# |
47234-28210 |
US $6.12 |
||
|
47234U
|
47234U
96136-41801 Clip(For Fuel Vapor Feed Hose, No.2)[01.2014 - 06.2017] ZRR8# |
96136-41801 |
US $2.56 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[01.2014 - 06.2017] ZRR8# |
90029-48001 |
US $5.76 |
||
|
47287
|
47287
47287-02360
Label, Brake Fluid Information
[08.2016 - 06.2017] ZRR8# |
47287-02360 |
— | ||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[01.2014 - 08.2016] ZRR8# |
47287-20010 |
US $2.08 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[01.2014 - 06.2017] ZRR8# |
47299-20060 |
US $1.89 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.44 |
||
