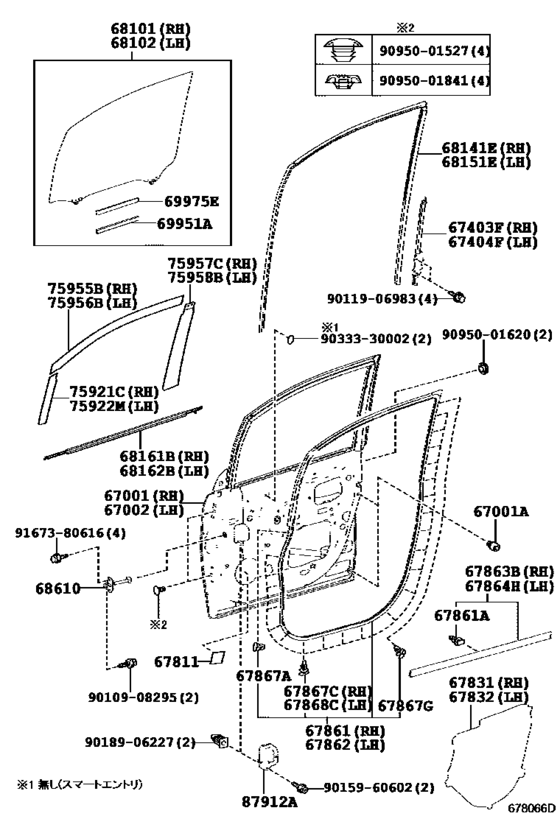

Front Door Panel & Glass ([01.2014 - ] ﾄﾞｱﾊﾟﾈﾙ (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-28250 Panel Sub-Assy, Front Door, Rh[01.2014 -] ZRR8#,ZWR80..G,GI,V,X,XI |
67001-28250 |
US $684.60 |
||
|
67001A
|
67001A
90541-09124 Cushion, Luggage Compartment Door[01.2014 -] ZRR8#,ZWR80 |
90541-09124 |
from US $1.60 |
||
|
67002
|
67002
67002-28270 Panel Sub-Assy, Front Door, Lh[01.2014 -] ZRR8#,ZWR80..G,GI,V,X,XI |
67002-28270 |
US $684.60 |
||
|
67403F
|
67403F
67403-28120 Frame Sub-Assy, Front Door, Rear Lower Rh[01.2014 -] ZRR8#,ZWR80 |
67403-28120 |
US $30.10 |
||
|
67404F
|
67404F
67404-28120 Frame Sub-Assy, Front Door, Rear Lower Lh[01.2014 -] ZRR8#,ZWR80 |
67404-28120 |
US $30.10 |
||
|
67811
|
67811
67811-12190 Pad, Front Door Silencer[01.2014 -] ZRR8#,ZWR80 |
67811-12190 |
US $11.52 |
||
|
67831
|
67831
67831-28210 Cover, Front Door Service Hole, Rh[01.2014 -] ZRR8#,ZWR80 |
67831-28210 |
US $9.60 |
||
|
67832
|
67832
67832-28140 Cover, Front Door Service Hole, Lh[01.2014 -] ZRR8#,ZWR80 |
67832-28140 |
US $9.60 |
||
|
67861
|
67861
67861-28100 Weatherstrip, Front Door, Rh[01.2014 -] ZRR8#,ZWR80 |
67861-28100 |
US $87.32 |
||
|
67861A
|
67861A
67867-52030 Retainer(For Front Door Weatherstrip)[01.2014 -] ZRR8#,ZWR80 |
67867-52030 |
US $1.60 |
||
|
67862
|
67862
67862-28100 Weatherstrip, Front Door, Lh[01.2014 -] ZRR8#,ZWR80 |
67862-28100 |
US $87.32 |
||
|
67863B
|
67863B
67863-28040 Weatherstrip, Front Door, No.2 Rh[01.2014 -] ZRR8#,ZWR80 |
67863-28040 |
US $32.38 |
||
|
67864H
|
67864H
67863-28040 Weatherstrip, Front Door, No.2 Rh[01.2014 -] ZRR8#,ZWR80 |
67863-28040 |
US $32.38 |
||
|
67867A
|
67867A
90467-04034 Clip[08.2014 -] ZRR8#,ZWR80 |
90467-04034 |
US $0.96 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.2014 -] ZRR8#,ZWR80 |
67867-12150 |
from US $1.60 |
||
|
67867G
|
67867G
67867-52040 Retainer(For Front Door Weatherstrip)[08.2014 -] ZRR8#,ZWR80 |
67867-52040 |
US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.2014 -] ZRR8#,ZWR80 |
67867-12150 |
from US $1.60 |
||
|
68101
|
68101
68101-28370
Glass Sub-Assy, Front Door, Rh
[10.2014 - 09.2015] ZRR8#..GI;ZWR80..ESQIR |
68101-28370 |
— | ||
|
68101
|
68101
68101-28371
Glass Sub-Assy, Front Door, Rh
[10.2015 -] ZRR8#..GI;ZWR80..G,GI,V,XI |
68101-28371 |
— | ||
|
68102
|
68102
68102-28440
Glass Sub-Assy, Front Door, Lh
[10.2014 - 09.2015] ZRR8#..GI;ZWR80..ESQIR |
68102-28440 |
— | ||
|
68102
|
68102
68102-28441
Glass Sub-Assy, Front Door, Lh
[10.2015 -] ZRR8#..GI;ZWR80..G,GI,V,XI |
68102-28441 |
— | ||
|
68141E
|
68141E
68141-28170 Run, Front Door Glass, Rh[01.2014 - 02.2015] ZRR8#,ZWR80 |
68141-28170 |
US $38.44 |
||
| replacement | |||||
|
68141E
|
68141E
68141-28171 Run, Front Door Glass, Rh[01.2014 - 02.2015] ZRR8#,ZWR80 |
68141-28171 |
US $34.94 |
||
|
68141E
|
68141E
68141-28171 Run, Front Door Glass, Rh[03.2015 -] ZRR8#,ZWR80 |
68141-28171 |
US $34.94 |
||
|
68151E
|
68151E
68151-28140 Run, Front Door Glass, Lh[01.2014 - 02.2015] ZRR8#,ZWR80 |
68151-28140 |
US $38.44 |
||
| replacement | |||||
|
68151E
|
68151E
68151-28141 Run, Front Door Glass, Lh[01.2014 - 02.2015] ZRR8#,ZWR80 |
68151-28141 |
US $34.94 |
||
|
68151E
|
68151E
68151-28141 Run, Front Door Glass, Lh[03.2015 -] ZRR8#,ZWR80 |
68151-28141 |
US $34.94 |
||
|
68161B
|
68161B
68161-28090 Weatherstrip, Front Door Glass, Outer Rh[10.2014 -] ZRR8#,ZWR80..ESQIR |
68161-28090 |
US $55.33 |
||
|
68162B
|
68162B
68162-28090 Weatherstrip, Front Door Glass, Outer Lh[10.2014 -] ZRR8#,ZWR80..ESQIR |
68162-28090 |
US $55.33 |
||
|
68610
|
68610
68610-28060 Check Assy, Front Door[01.2014 -] ZRR8#,ZWR80 |
68610-28060 |
from US $46.82 |
||
|
69951A
|
69951A
69955-47010 Channel, Rear Door Window GlassFRONT DOOR GLASS, NO.1 [01.2014 -] ZRR8#,ZWR80 |
69955-47010 |
US $8.81 |
||
|
69975E
|
69975E
69975-47010 Filler, Rear Door Glass ChannalFRONT DOOR GLASS CHANNEL, NO.1 [01.2014 -] ZRR8#,ZWR80 |
69975-47010 |
US $3.79 |
||
|
75921C
|
75921C
75935-28060 Tape, Black Out, No.1 Rh[01.2014 -] ZRR8#,ZWR80 |
75935-28060 |
US $10.08 |
||
|
75922M
|
75922M
75936-28050 Tape, Black Out, No.1 Lh[01.2014 -] ZRR8#,ZWR80 |
75936-28050 |
US $10.08 |
||
|
75955B
|
75955B
75955-28050 Tape, Black Out Front Door, Outer Upper Rh[01.2014 -] ZRR8#,ZWR80 |
75955-28050 |
US $17.02 |
||
|
75956B
|
75956B
75956-28050 Tape, Black Out Front Door, Outer Upper Lh[01.2014 -] ZRR8#,ZWR80 |
75956-28050 |
US $17.02 |
||
|
75957C
|
75957C
75957-28050 Tape, Black Out Front Door, Outer Rear Rh[01.2014 -] ZRR8#,ZWR80 |
75957-28050 |
US $23.86 |
||
|
75958B
|
75958B
75958-28050 Tape, Black Out Front Door, Outer Rear Lh[01.2014 -] ZRR8#,ZWR80 |
75958-28050 |
US $23.86 |
||
|
87912A
|
87912A
87912-28080 Protector, Outer Mirror[01.2014 -] ZRR8#,ZWR80 右側 |
87912-28080 |
US $23.41 |
||
|
87912A
|
87912A
87912-28090 Protector, Outer Mirror[01.2014 -] ZRR8#,ZWR80 左側 |
87912-28090 |
US $20.22 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.82 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.68 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.76 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
