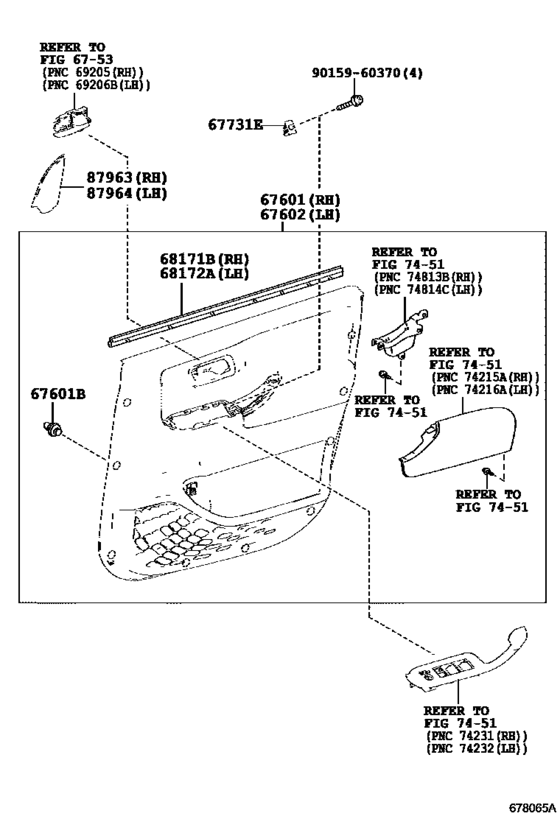

Front Door Panel & Glass ([01.2014 - ] ﾄﾞｱﾄﾘﾑ (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-28E90-C6 Board Sub-Assy, Front Door Trim, Rh[10.2014 -] ZRR8#,ZWR80..GI BLACK,TRIM23,24; ZRR8#,ZWR80..XI BLACK,TRIM2# |
67610-28E90-C6 |
US $396.03 |
||
|
67601
|
67601
67610-28E90-D3 Board Sub-Assy, Front Door Trim, Rh[10.2014 - 01.2016] ZRR8#,ZWR80..GI BORDEAUX,TRIM22 |
67610-28E90-D3 |
US $436.80 |
||
| replacement | |||||
|
67601
|
67601
67610-28E90-E0 Board Sub-Assy, Front Door Trim, Rh[10.2014 - 01.2016] ZRR8#,ZWR80..GI BORDEAUX,TRIM22 |
67610-28E90-E0 |
US $396.03 |
||
|
67601
|
67601
67610-28E90-E0 Board Sub-Assy, Front Door Trim, Rh[01.2016 -] ZRR8#,ZWR80..GI BURGUNDY,TRIM22 |
67610-28E90-E0 |
US $396.03 |
||
|
67601
|
67601
67610-28F50-C0 Board Sub-Assy, Front Door Trim, Rh[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ）,BLACK,TRIM2# |
67610-28F50-C0 |
US $396.03 |
||
|
67601B
|
67601B
90467-09206 Clip, Front Air Shutter Seal[01.2014 -] ZRR8#,ZWR80 |
90467-09206 |
from US $0.49 |
||
|
67602
|
67602
67620-28E90-C6 Board Sub-Assy, Front Door Trim, Lh[10.2014 -] ZRR8#,ZWR80..GI BLACK,TRIM23,24; ZRR8#,ZWR80..XI BLACK,TRIM2# |
67620-28E90-C6 |
US $396.03 |
||
|
67602
|
67602
67620-28E90-D3 Board Sub-Assy, Front Door Trim, Lh[10.2014 - 01.2016] ZRR8#,ZWR80..GI BORDEAUX,TRIM22 |
67620-28E90-D3 |
US $436.80 |
||
| replacement | |||||
|
67602
|
67602
67620-28E90-E0 Board Sub-Assy, Front Door Trim, Lh[10.2014 - 01.2016] ZRR8#,ZWR80..GI BORDEAUX,TRIM22 |
67620-28E90-E0 |
US $396.03 |
||
|
67602
|
67602
67620-28E90-E0 Board Sub-Assy, Front Door Trim, Lh[01.2016 -] ZRR8#,ZWR80..GI BURGUNDY,TRIM22 |
67620-28E90-E0 |
US $396.03 |
||
|
67602
|
67602
67620-28F50-C0 Board Sub-Assy, Front Door Trim, Lh[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ）,BLACK,TRIM2# |
67620-28F50-C0 |
US $396.03 |
||
|
67731E
|
67731E
67731-53030 Spacer, Side Trim, No.1[01.2014 -] ZRR8#,ZWR80 |
67731-53030 |
US $3.20 |
||
|
68171B
|
68171B
68171-28091 Weatherstrip, Front Door Glass, Inner Rh[03.2014 -] ZRR8#,ZWR80 |
68171-28091 |
US $46.48 |
||
|
68172A
|
68172A
68172-28081 Weatherstrip, Front Door Glass, Inner Lh[03.2014 -] ZRR8#,ZWR80 |
68172-28081 |
US $46.48 |
||
|
87963
|
87963
87963-28010 Cover, Outer Mirror Install Hole, Rh[01.2014 -] ZRR8#,ZWR80 |
87963-28010 |
US $30.10 |
||
|
87964
|
87964
87964-28010 Cover, Outer Mirror Install Hole, Lh[01.2014 -] ZRR8#,ZWR80 |
87964-28010 |
US $30.10 |
||
|
9015960370
|
9015960370
90159-60370 SCREW WWASHER |
90159-60370 |
US $1.12 |
||
