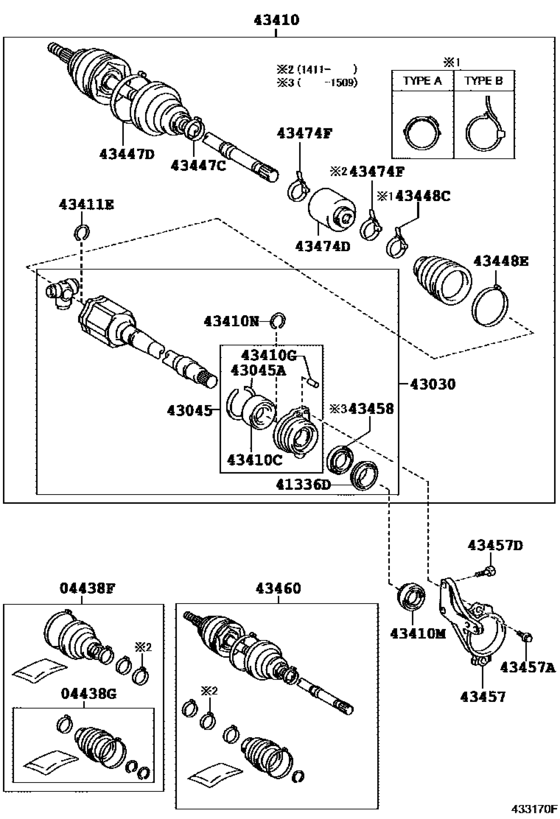

Front Drive Shaft ([01.2014 - ] ﾐｷﾞｶﾞﾜ (1401- )ZRR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-44040
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[01.2014 - 11.2014] ZRR85;ZRR80..G,GI,V,X,XI |
04427-44040 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-44041 Boot Kit, Front Drive Shaft, In & Outboard, Rh[01.2014 - 11.2014] ZRR85;ZRR80..G,GI,V,X,XI |
04427-44041 |
US $97.84 |
||
|
04438F
|
04438F
04427-44041 Boot Kit, Front Drive Shaft, In & Outboard, Rh[11.2014 -] ZRR85;ZRR80..G,GI,V,X,XI |
04427-44041 |
US $97.84 |
||
|
04438G
|
04438G
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[01.2014 -] ZRR8# |
04438-42180 |
from US $69.93 |
||
|
41336D
|
41336D
41336-12020 Cover, Dust(For Front Drive Shaft)[01.2014 -] ZRR80,ZWR80 |
41336-12020 |
from US $3.71 |
||
|
43030
|
43030
43030-28011 Joint Assy, Front Drive Inboard, Rh[01.2014 -] ZRR80..G,GI,V,X,XI |
43030-28011 |
US $353.81 |
||
|
43045
|
43045
43045-64020 Case Sub Assy, Drive Shaft Bearing[01.2014 -] ZRR80 |
43045-64020 |
from US $54.60 |
||
|
43045A
|
43045A
90520-69002 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[01.2014 -] ZRR80 |
90520-69002 |
US $0.79 |
||
|
43410
|
43410
43410-28130
Shaft Assy, Front Drive, Rh
[01.2014 -] ZRR80..G,GI,V,X,XI |
43410-28130 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-28131 SHAFT ASSY FR[01.2014 -] ZRR80..G,GI,V,X,XI |
43410-28131 |
US $812.45 |
||
|
43410C
|
43410C
90363-41003 Bearing (For Front Drive Shaft)[01.2014 -] ZRR80 |
90363-41003 |
from US $26.38 |
||
|
43410G
|
43410G
90250-06003 Pin, Straight[01.2014 -] ZRR80 |
90250-06003 |
US $1.44 |
||
|
43410M
|
43410M
90311-40041 Oil Seal, Front Drive Shaft, Rh[01.2014 -] ZRR80 |
90311-40041 |
from US $4.96 |
||
|
43410N
|
43410N
90520-38015 Ring, Shaft Snap(For Rear Drive Shaft)[01.2014 -] ZRR80 |
90520-38015 |
from US $1.60 |
||
|
43411E
|
43411E
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[01.2014 -] ZRR8# |
43425-28010 |
US $0.64 |
||
|
43447C
|
43447C
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [01.2014 -] ZRR8# |
42345-42100 |
US $3.52 |
||
|
43447D
|
43447D
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [01.2014 -] ZRR8# |
42345-42090 |
from US $5.44 |
||
|
43448C
|
43448C
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [01.2014 -] ZRR8# ＴＹＰＥ Ａ：イラスト参照 |
42345-42010 |
from US $0.84 |
||
|
43448C
|
43448C
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[01.2014 -] ZRR8# ＴＹＰＥ Ｂ：イラスト参照 |
90949-01559 |
US $5.12 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [01.2014 -] ZRR8# |
42345-12160 |
from US $4.64 |
||
|
43457
|
43457
43457-20130 Bracket, Drive Shaft BearingDRIVE SHAFT BEARING [01.2014 -] ZRR80 |
43457-20130 |
US $52.27 |
||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[01.2014 -] ZRR80 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $1.01 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[01.2014 -] ZRR80 |
90105-10381 |
US $1.60 |
||
|
43458
|
43458
43458-12010 Cover, Front Drive Shaft Dust[01.2014 - 09.2015] ZRR80 |
43458-12010 |
from US $8 |
||
|
43460
|
43460
43470-80178 Shaft Assy, Front Drive Outboard Joint, Rh[01.2014 - 11.2014] ZRR80..G,GI,V,X,XI |
43470-80178 |
US $582.40 |
||
|
43460
|
43460
43470-80349 Shaft Assy, Front Drive Outboard Joint, Rh[11.2014 -] ZRR80..G,GI,V,X,XI |
43470-80349 |
US $574.83 |
||
|
43474D
|
43474D
43474-44010 Damper, Drive Shaft[01.2014 - 11.2014] ZRR85;ZRR80..ESQIR |
43474-44010 |
US $36.69 |
||
| replacement | |||||
|
43474D
|
43474D
43474-44020 Damper, Drive Shaft[01.2014 - 11.2014] ZRR85;ZRR80..ESQIR |
43474-44020 |
US $33.34 |
||
|
43474D
|
43474D
43474-44020 Damper, Drive Shaft[11.2014 -] ZRR85;ZRR80..G,GI,V,X,XI |
43474-44020 |
US $33.34 |
||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[01.2014 - 11.2014] ZRR8#,ZWR80 |
42345-14010 |
US $11.20 |
||
