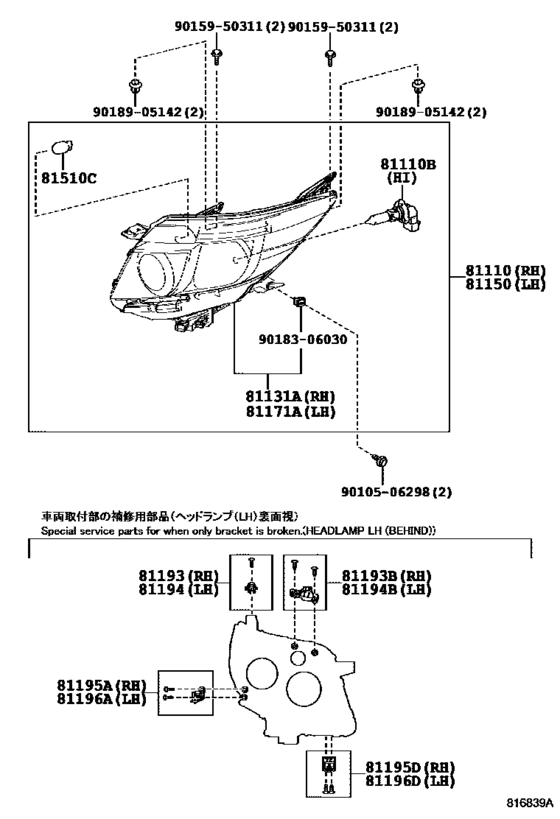

Headlamp ([01.2014 - ] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1401- )ESQIR,NOAH) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-28F70
Headlamp Assy, Rh
[01.2014 - 03.2015] ZRR8#,ZWR80..GI,SI,XI |
81110-28F70 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-28F71 Headlamp Assy, Rh[01.2014 - 03.2015] ZRR8#,ZWR80..GI,SI,XI |
81110-28F71 |
US $1,231.78 |
||
|
81110
|
81110
81110-28F71 Headlamp Assy, Rh[04.2015 -] ZRR8#,ZWR80..GI,SI,XI |
81110-28F71 |
US $1,231.78 |
||
|
81110
|
81110
81110-28G30 Headlamp Assy, Rh[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ） |
81110-28G30 |
US $1,231.78 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[01.2014 -] ZRR8#,ZWR80 １２Ｖ６５Ｗ（ＳＡＥ），６０Ｗ（ＥＣＥ） |
90981-13046 |
from US $16.34 |
||
|
81131A
|
81131A
81130-28F70
Unit, Headlamp, Rh
[01.2014 - 04.2015] ZRR8#,ZWR80..GI,SI,XI |
81130-28F70 |
— | ||
| replacement | |||||
|
81131A
|
81131A
81130-28F71 Unit, Headlamp, Rh[01.2014 - 04.2015] ZRR8#,ZWR80..GI,SI,XI |
81130-28F71 |
US $1,917.60 |
||
|
81131A
|
81131A
81130-28F71 Unit, Headlamp, Rh[04.2015 -] ZRR8#,ZWR80..GI,SI,XI |
81130-28F71 |
US $1,917.60 |
||
|
81131A
|
81131A
81130-28G30 Unit, Headlamp, Rh[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ） |
81130-28G30 |
US $1,320.56 |
||
|
81150
|
81150
81150-28D20
Headlamp Assy, Lh
[01.2014 - 03.2015] ZRR8#,ZWR80..GI,SI,XI |
81150-28D20 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-28D21
Headlamp Assy, Lh
[01.2014 - 03.2015] ZRR8#,ZWR80..GI,SI,XI |
81150-28D21 |
— | ||
|
81150
|
81150
81150-28D21
Headlamp Assy, Lh
[04.2015 -] ZRR8#,ZWR80..GI,SI,XI |
81150-28D21 |
— | ||
|
81150
|
81150
81150-28G30 Headlamp Assy, Lh[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ） |
81150-28G30 |
US $1,231.78 |
||
|
81171A
|
81171A
81170-28D20
Unit, Headlamp, Lh
[01.2014 - 04.2015] ZRR8#,ZWR80..GI,SI,XI |
81170-28D20 |
— | ||
| replacement | |||||
|
81171A
|
81171A
81170-28D21 Unit, Headlamp, Lh[01.2014 - 04.2015] ZRR8#,ZWR80..GI,SI,XI |
81170-28D21 |
US $1,917.60 |
||
|
81171A
|
81171A
81170-28D21 Unit, Headlamp, Lh[04.2015 -] ZRR8#,ZWR80..GI,SI,XI |
81170-28D21 |
US $1,917.60 |
||
|
81171A
|
81171A
81170-28G30 Unit, Headlamp, Lh[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ） |
81170-28G30 |
US $1,320.56 |
||
|
81193
|
81193
81193-28170 Retainer, Headlamp Protector, Upper Rh[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81193-28170 |
US $7.04 |
||
|
81193B
|
81193B
81193-28180 Retainer, Headlamp Protector, Upper Rh No.2[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81193-28180 |
US $12.32 |
||
|
81194
|
81194
81194-28170 Retainer, Headlamp Protector, Upper Lh[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81194-28170 |
US $7.04 |
||
|
81194B
|
81194B
81194-28180 Retainer, Headlamp Protector, Upper Lh No.2[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81194-28180 |
US $12.32 |
||
|
81195A
|
81195A
81195-28010 Retainer, Headlamp Protector, Lower Rh[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81195-28010 |
US $12.32 |
||
|
81195D
|
81195D
81195-28020 Retainer, Headlamp Protector, Lower Rh No.2[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81195-28020 |
US $12.32 |
||
|
81196A
|
81196A
81196-28010 Retainer, Headlamp Protector, Lower Lh[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81196-28010 |
US $12.32 |
||
|
81196D
|
81196D
81196-28020 Retainer, Headlamp Protector, Lower Lh No.2[01.2014 -] ZRR8#,ZWR80..ESQIR,NOAH |
81196-28020 |
US $12.32 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[01.2014 -] ZRR8#,ZWR80 １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.60 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.84 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9018306030
|
9018306030
90183-06030 NUT SPRING |
90183-06030 |
from US $0.78 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
