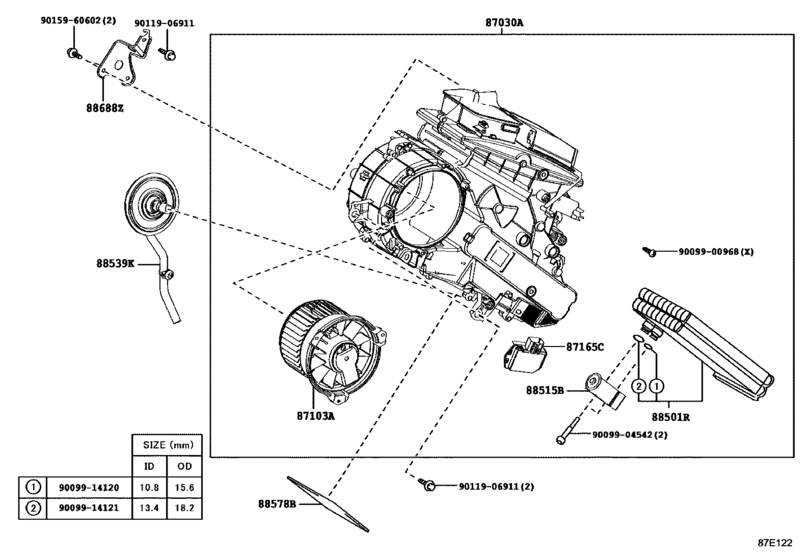

Heating & Air Conditioning - Cooler Unit ([01.2014 - ] ﾘﾔ,ﾅｼ(ﾋｰﾀ) (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87030A
|
87030A
88500-28060
Unit Assy, Cooling, Rear
[01.2014 -] ZRR8#..CBU |
88500-28060 |
— | ||
|
87030A
|
87030A
88500-28070
Unit Assy, Cooling, Rear
[01.2014 -] ZRR8#..IV5; ZRR8#..07S..(X,XI)..CBU サイドリフトアップシート車（標準タイプ）; ZRR8#..07S..(X,XI)..CBU サイドリフトアップシート車（標準タイプ）＆寒冷地仕様; ZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU サイドリフトアップシート車（脱着タイプ手動式）; ZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU サイドリフトアッ |
88500-28070 |
— | ||
|
87103A
|
87103A
87103-28111 Motor Sub-Assy, Cooling Unit, W/fan[01.2014 -] ZRR8#,ZWR80 |
87103-28111 |
from US $254.16 |
||
|
87165C
|
87165C
87165-28020 Control, Blower Motor[01.2014 -] ZRR8#,ZWR80 |
87165-28020 |
US $125.80 |
||
|
88501R
|
88501R
88501-28370 Evaporator Sub-Assy (Rear)[01.2014 -] ZRR8# |
88501-28370 |
US $234.12 |
||
|
88515B
|
88515B
88515-28210 Valve, Rear Cooling Unit Expansion[01.2014 -] ZRR8#,ZWR80 |
88515-28210 |
US $93.24 |
||
|
88539K
|
88539K
88539-28380
Hose, Drain Cooler
[01.2014 -] ZRR8#,ZWR80 |
88539-28380 |
— | ||
|
88578B
|
88578B
88578-28490
Packing, Cooling Unit, No.1
[01.2014 -] ZRR8#,ZWR80 |
88578-28490 |
— | ||
|
88688Z
|
88688Z
88688-28A30
Bracket
[01.2014 -] ZRR8#,ZWR80 |
88688-28A30 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.21 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.22 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.79 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
