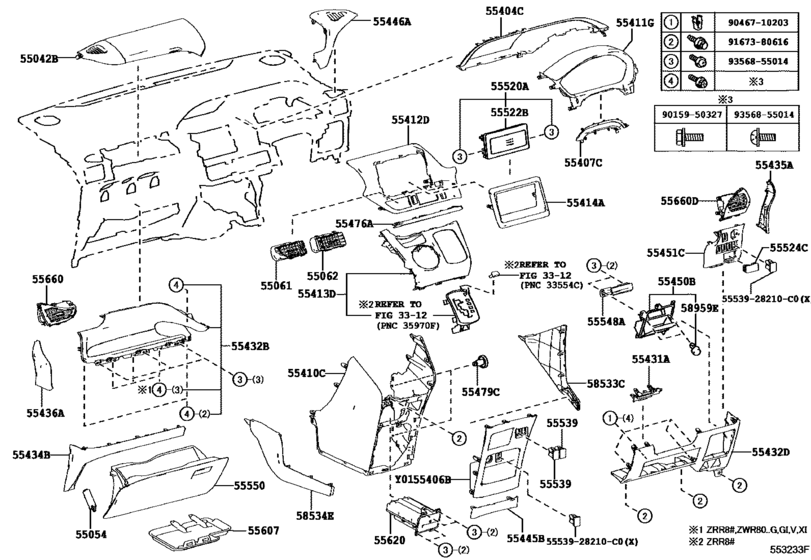

Instrument Panel & Glove Compartment ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55042B
|
55042B
55042-28080-C0 Door Sub-Assy, Instrument Panel Box, No.2[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55042-28080-C0 |
US $146.52 |
||
|
55054
|
55054
55054-47010 Stopper Sub-Assy, Glove Compartment Door[01.2014 -] ZRR8#,ZWR80 |
55054-47010 |
from US $15.96 |
||
|
55061
|
55061
55061-28090 Register Sub-Assy, Instrument Panel, No.1[01.2014 -] ZRR8#,ZWR80 |
55061-28090 |
US $51.07 |
||
|
55062
|
55062
55061-28100 Register Sub-Assy, Instrument Panel, N0.2[01.2014 -] ZRR8#,ZWR80 |
55061-28100 |
US $51.07 |
||
|
55404C
|
55404C
55404-28330 Panel Sub-Assy, Instrument Cluster Finish, No.2[10.2014 -] ZRR8#,ZWR80..ESQIR |
55404-28330 |
US $99 |
||
|
55406B
|
55406B
55406-28080-C0 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55406-28080-C0 |
US $58.68 |
||
|
55407C
|
55407C
55407-28110 Cover Sub-Assy, Instrument, Lower[01.2014 -] ZRR8#,ZWR80 |
55407-28110 |
US $19.31 |
||
|
55410C
|
55410C
55411-28260-C0 Panel Assy, Instrument Cluster Finish[10.2014 -] ZRR8#,ZWR80..GI BLACK,TRIM2#; ZRR80..07S..SI..CBU BLACK,TRIM23,24,27; ZRR85..SI;ZRR80..08S..SI..CBU BLACK,TRIM24,27; ZRR8#,ZWR80..XI;ZRR80..07S..ZS..CBU BLACK,TRIM23,27; ZWR80..G,V,X;ZRR85..V,X,ZS;ZRR80..07S..(V,X)..CBU;ZRR80..(NOAH,VOXY)..IV5 |
55411-28260-C0 |
US $130.24 |
||
|
55411G
|
55411G
55411-28250-C0 Panel, Instrument Cluster Finish, No.1[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55411-28250-C0 |
US $72.20 |
||
|
55412D
|
55412D
55412-28640-C0 Panel, Instrument Cluster Finish, Center[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55412-28640-C0 |
US $79.92 |
||
|
55413D
|
55413D
55413-28190-C1 Panel, Instrument Cluster Finish, Center Lower[10.2014 -] ZRR8#..ESQIR BLACK,TRIM2# |
55413-28190-C1 |
US $157.25 |
||
|
55413D
|
55413D
55413-28250-C0 Panel, Instrument Cluster Finish, Center Lower[01.2016 -] ZRR8#..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ）,BLACK,TRIM2# |
55413-28250-C0 |
US $183.46 |
||
|
55414A
|
55414A
55414-28180 Panel, Instrument Cluster Finish, End[10.2014 -] ZRR8#..ESQIR オーディオ−有り（ナビゲーションシステム） |
55414-28180 |
US $43.83 |
||
|
55414A
|
55414A
55414-28200 Panel, Instrument Cluster Finish, End[01.2014 -] ZRR8#,ZWR80 |
55414-28200 |
US $50.01 |
||
|
55431A
|
55431A
55431-28130-C0 Panel, Instrument Panel Finish[10.2014 -] ZRR8#..08S..GI BLACK,TRIM23,24; ZRR85..SI;ZRR80..08S..SI..CBU BLACK,TRIM24,27; ZRR8#,ZWR80..XI;ZRR80..07S..ZS..CBU BLACK,TRIM23,27; ZWR80..G,V,X;ZRR85..V,X,ZS;ZRR80..07S..(V,X)..CBU;ZRR80..(NOAH,VOXY)..IV5;ZRR80..0 8S..(V,X,ZS)..CBU BLACK,TRIM |
55431-28130-C0 |
US $19.66 |
||
|
55431A
|
55431A
55431-28130-D0 Panel, Instrument Panel Finish[10.2014 - 01.2016] ZRR8#,ZWR80..GI BORDEAUX,TRIM22 |
55431-28130-D0 |
US $21.69 |
||
|
55431A
|
55431A
55431-28130-E1 Panel, Instrument Panel Finish[01.2016 -] ZRR8#,ZWR80..GI BURGUNDY,TRIM22 |
55431-28130-E1 |
US $19.66 |
||
|
55432B
|
55432B
55432-28260-C3 Panel, Instrument Panel Finish, Lower[10.2014 -] ZRR8#,ZWR80..GI BLACK,TRIM23; ZRR8#,ZWR80..XI BLACK,TRIM2# |
55432-28260-C3 |
US $305.76 |
||
|
55432B
|
55432B
55432-28260-D2 Panel, Instrument Panel Finish, Lower[10.2014 - 01.2016] ZRR8#,ZWR80..GI BURGUNDY,TRIM22 |
55432-28260-D2 |
US $336.34 |
||
| replacement | |||||
|
55432B
|
55432B
55432-28260-D3 Panel, Instrument Panel Finish, Lower[10.2014 - 01.2016] ZRR8#,ZWR80..GI BURGUNDY,TRIM22 |
55432-28260-D3 |
US $305.76 |
||
|
55432B
|
55432B
55432-28260-D3 Panel, Instrument Panel Finish, Lower[01.2016 -] ZRR8#,ZWR80..GI BURGUNDY,TRIM22 |
55432-28260-D3 |
US $305.76 |
||
|
55432B
|
55432B
55432-28320-C0 Panel, Instrument Panel Finish, Lower[01.2016 -] ZRR8#,ZWR80..GI Ｂｌａｃｋ−Ｔａｉｌｏｒｅｄ＊（Ａ）ｏｒ＊（Ｂ）,BLACK,TRIM2# |
55432-28320-C0 |
US $305.76 |
||
|
55432D
|
55432D
55432-28270-C0 Panel, Instrument Panel Finish, Lower No.1[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55432-28270-C0 |
US $72.96 |
||
|
55434B
|
55434B
55434-28140-C0 Panel, Instrument Panel Finish, Lower Center[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55434-28140-C0 |
US $48.79 |
||
|
55435A
|
55435A
55435-28010-C0 Panel, Instrument Panel Finish, End Rh[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55435-28010-C0 |
US $25.68 |
||
|
55436A
|
55436A
55436-28010-C0 Panel, Instrument Panel Finish, End Lh[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55436-28010-C0 |
US $25.92 |
||
|
55445B
|
55445B
55445-28110-C0 Plate, Instrument Panel Finish[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55445-28110-C0 |
US $9.76 |
||
|
55446A
|
55446A
55446-28260-C0 Base, Switch Hole, No.1[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55446-28260-C0 |
US $24.17 |
||
|
55450B
|
55450B
55450-28010-C0 Box Assy, Coin[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55450-28010-C0 |
US $31.23 |
||
|
55451C
|
55451C
55451-28120-C0 Box, Instrument Panel, No.1[10.2014 - 01.2016] ZRR8#..SI,V,ZS;ZWR80..NOAH,VOXY BLACK,TRIM27; ZRR8#..08S..GI BLACK,TRIM23; ZWR80..ESQIR;ZRR8#..07S..GI BLACK,TRIM23,27; ZRR8#..X..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM27; ZRR8#..XI..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM23,27; ZRR8#..X..I |
55451-28120-C0 |
US $24.46 |
||
|
55451C
|
55451C
55451-28120-D0 Box, Instrument Panel, No.1[10.2014 - 01.2016] ZRR8#,ZWR80..GI BORDEAUX,TRIM22 |
55451-28120-D0 |
US $26.94 |
||
|
55451C
|
55451C
55451-28160-C0 Box, Instrument Panel, No.1[01.2016 -] ZWR80..XI BLACK,TRIM2#; ZRR80..07S..ZS..CBU BLACK,TRIM23; ZRR8#,ZWR80..GI;ZRR80..07S..SI..CBU BLACK,TRIM23,24; ZRR85,ZWR80..SI;ZRR80..08S..SI..CBU BLACK,TRIM24; ZRR8#..XI..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM2#; ZRR8#..XI..IV5 スマートエントリ−有り（ドア＆ス |
55451-28160-C0 |
US $30.40 |
||
|
55451C
|
55451C
55451-28160-E1 Box, Instrument Panel, No.1[01.2016 -] ZRR8#,ZWR80..GI BURGUNDY,TRIM22 |
55451-28160-E1 |
US $24.46 |
||
|
55476A
|
55476A
55476-28110-C1 Garnish, Instrument Cluster Finish Panel, No.3[10.2014 -] ZRR8#,ZWR80..GI BLACK,TRIM23,24; ZRR8#,ZWR80..XI BLACK,TRIM2# |
55476-28110-C1 |
US $52.71 |
||
|
55476A
|
55476A
55476-28110-D1 Garnish, Instrument Cluster Finish Panel, No.3[10.2014 -] ZRR8#,ZWR80..GI BORDEAUX,TRIM22 |
55476-28110-D1 |
US $52.71 |
||
|
55479C
|
55479C
90467-07164 Clip(For Front Fender Apron Seal)[01.2014 -] ZRR8#,ZWR80 |
90467-07164 |
from US $1.29 |
||
|
55520A
|
55520A
55520-47020 Cover Assy, Stereo Opening[01.2014 -] ZRR8#,ZWR80..SI,X,XI,ZS オーディオ−無し ＆ ４スピーカ ＆ 有り（オーディオレスカバー）; ZRR8#,ZWR80..G,GI,V オーディオ−無し ＆ ６スピーカ ＆ 有り（オーディオレスカバー） |
55520-47020 |
US $18.24 |
||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[01.2014 -] ZRR8#,ZWR80..SI,X,XI,ZS オーディオ−無し ＆ ４スピーカ ＆ 有り（オーディオレスカバー）; ZRR8#,ZWR80..G,GI,V オーディオ−無し ＆ ６スピーカ ＆ 有り（オーディオレスカバー） |
55522-52020 |
from US $14.14 |
||
|
55548A
|
55548A
55548-47020-C0 Cover, Instrument Panel HoleINSTRUMENT PANEL HOLE [01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55548-47020-C0 |
US $13.21 |
||
|
55550
|
55550
55550-28130-C0 Door Assy, Glove Compartment[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55550-28130-C0 |
US $178.56 |
||
|
55607
|
55607
55607-28050 Cover Sub-Assy, Instrument Panel Under, No.2[01.2014 -] ZRR8#,ZWR80 |
55607-28050 |
US $27.23 |
||
|
55620
|
55620
55620-28130-C0 Holder Assy, Instrument Panel Cup[01.2014 -] ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
55620-28130-C0 |
US $120.85 |
||
|
55660
|
55660
55660-28310 Register Assy, Instrument Panel, No.2[10.2014 -] ZRR8#,ZWR80..ESQIR |
55660-28310 |
US $67.70 |
||
|
55660D
|
55660D
55650-28300 Register Assy, Instrument Panel, No.1[10.2014 -] ZRR8#,ZWR80..ESQIR |
55650-28300 |
US $84.36 |
||
|
58533C
|
58533C
58533-28050-C0 Cover, Floor Carpet, Center Rh[10.2014 -] ZRR8#,ZWR80..GI BLACK,TRIM2#; ZRR80..07S..SI..CBU BLACK,TRIM23,24,27; ZRR85..SI;ZRR80..08S..SI..CBU BLACK,TRIM24,27; ZRR8#,ZWR80..XI;ZRR80..07S..ZS..CBU BLACK,TRIM23,27; ZWR80..G,V,X;ZRR85..V,X,ZS;ZRR80..07S..(V,X)..CBU;ZRR80..(NOAH,VOXY)..IV5 |
58533-28050-C0 |
US $29.41 |
||
|
58534E
|
58534E
58534-28060-C0 Cover, Floor Carpet, Center Lh[10.2014 -] ZRR8#,ZWR80..GI BLACK,TRIM2#; ZRR80..07S..SI..CBU BLACK,TRIM23,24,27; ZRR85..SI;ZRR80..08S..SI..CBU BLACK,TRIM24,27; ZRR8#,ZWR80..XI;ZRR80..07S..ZS..CBU BLACK,TRIM23,27; ZWR80..G,V,X;ZRR85..V,X,ZS;ZRR80..07S..(V,X)..CBU;ZRR80..(NOAH,VOXY)..IV5 |
58534-28060-C0 |
US $24.46 |
||
|
58959E
|
58959E
58959-60060 Cushion, Instrument Panel[01.2014 -] ZRR8#,ZWR80 |
58959-60060 |
from US $1.31 |
||
|
5553928210C0
|
5553928210C0
55539-28210-C0 Cover, Spare Switch Hole |
55539-28210-C0 |
US $5.44 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
