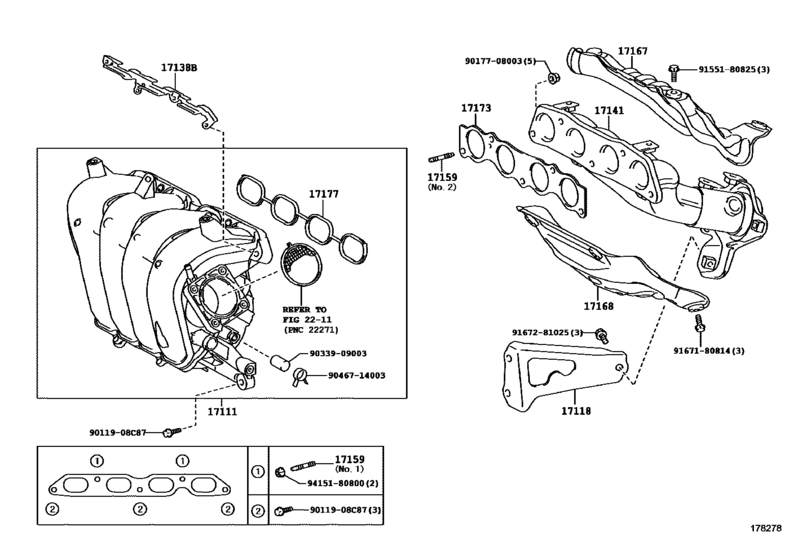

Manifold ([01.2014 - ] (1401- )3ZRFAE..ZRR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-37031 Manifold, IntakeINTAKE [01.2014 -] 3ZRFAE..ZRR8# |
17120-37031 |
from US $320.60 |
||
|
17118
|
17118
17118-37050 Stay, Manifold[01.2014 -] 3ZRFAE..ZRR80 |
17118-37050 |
US $18.20 |
||
|
17138B
|
17138B
17138-37011 Stay, Intake Manifold[01.2014 -] 3ZRFAE..ZRR8# |
17138-37011 |
US $13.76 |
||
|
17141
|
17141
17141-37140 Manifold, Exhaust[01.2014 -] 3ZRFAE..ZRR80 |
17141-37140 |
US $294.11 |
||
|
17159
|
17159
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 ＮＯ．１ |
90126-08026 |
from US $2.46 |
||
|
17159
|
17159
90126-08052 Bolt, Stud(For Oil Pan)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 ＮＯ．２ |
90126-08052 |
from US $0.90 |
||
|
17167
|
17167
17167-37050 Insulator, Exhaust Manifold Heat, No.1[01.2014 -] 3ZRFAE..ZRR80 |
17167-37050 |
US $63.48 |
||
|
17168
|
17168
17168-37070 Insulator, Exhaust Manifold Heat, No.2[01.2014 -] 3ZRFAE..ZRR80 |
17168-37070 |
US $33.49 |
||
|
17173
|
17173
17173-37010 Gasket, Exhaust Manifold To Head[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
17173-37010 |
from US $13.83 |
||
|
17177
|
17177
17177-37030 Gasket, Intake Manifold To Head, No.1[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
17177-37030 |
from US $11.10 |
||
|
9011908C87
|
9011908C87
90119-08C87 New Genuine Part |
90119-08C87 |
US $1.60 |
||
|
9017708003
|
9017708003
90177-08003 NUT LOCK |
90177-08003 |
US $1.28 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
from US $3.36 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.08 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.28 |
||
| replacement | |||||
|
9167180814
|
9167180814
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.17 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
