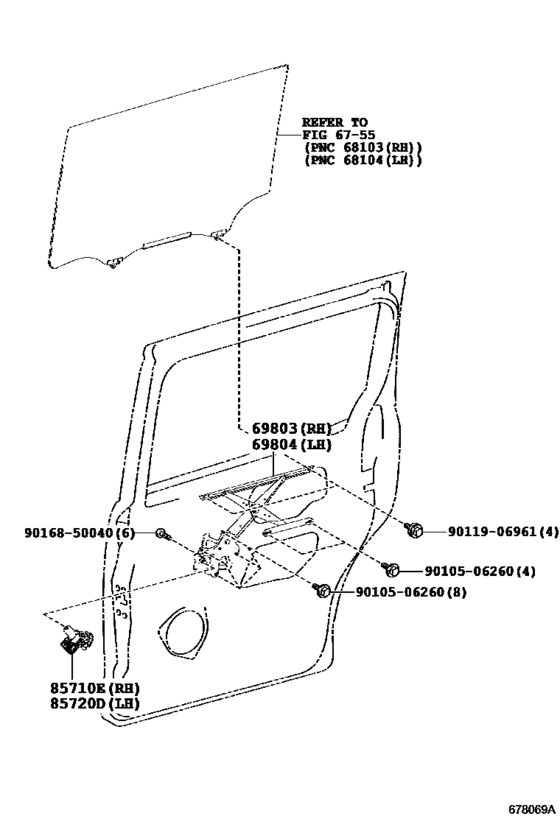

Rear Door Window Regulator & Hinge ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69803
|
69803
69801-12260 Regulator Sub-Assy, Front Door Window, Rh[01.2014 - 06.2017] ZRR8#,ZWR80 |
69801-12260 |
US $59.89 |
||
|
69804
|
69804
69802-12260 Regulator Sub-Assy, Front Door Window, Lh[01.2014 - 06.2017] ZRR8#,ZWR80 |
69802-12260 |
US $59.89 |
||
|
85710E
|
85710E
85710-28200 Motor Assy, Power Window Regulator, Rh[01.2014 - 06.2017] ZRR8#,ZWR80 |
85710-28200 |
US $322 |
||
|
85720D
|
85720D
85720-28200 Motor Assy, Power Window Regulator, Lh[01.2014 - 06.2017] ZRR8#,ZWR80 |
85720-28200 |
US $322 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9011906961
|
9011906961
90119-06961 BOLT WWASHER |
90119-06961 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
