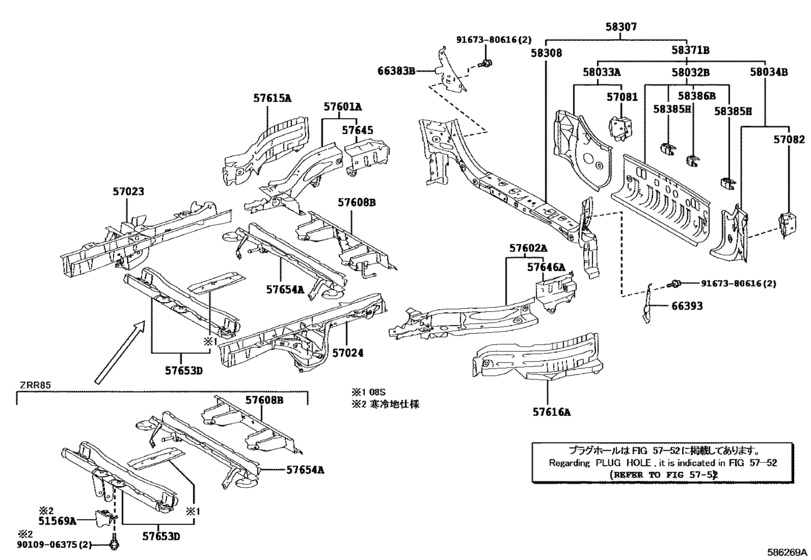

Rear Floor Panel & Rear Floor Member ([01.2014 - ] ﾌﾛｱｻｲﾄﾞﾒﾝﾊﾞ (1401- )CBU) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57023
|
57023
57023-28470 Member Sub-Assy, Rear Side, Rh[01.2014 -] ZRR8#,ZWR80 |
57023-28470 |
US $244.61 |
||
|
57024
|
57024
57024-28530 Member Sub-Assy, Rear Side, Lh[01.2014 -] ZRR8#,ZWR80 |
57024-28530 |
US $244.61 |
||
|
57081
|
57081
57081-28020 Bracket Sub-Assy, Rear Bumper Mounting[01.2014 - 06.2017] ZRR8#,ZWR80 |
57081-28020 |
US $16.45 |
||
|
57082
|
57082
57082-28020 Bracket Sub-Assy, Rear Bumper Arm Support, Lh[01.2014 - 06.2017] ZRR8#,ZWR80 |
57082-28020 |
US $20.52 |
||
|
57601A
|
57601A
57601-28200 Member Sub-Assy, Rear Floor Side, Rh[01.2014 -] ZRR8#,ZWR80..CBU |
57601-28200 |
US $168.90 |
||
|
57602A
|
57602A
57602-28170 Member Sub-Assy, Rear Floor Side, Lh[01.2014 -] ZRR8#,ZWR80..CBU |
57602-28170 |
US $168.90 |
||
|
57608B
|
57608B
57608-28290 Member Sub-Assy, Rear Floor Cross, No.4[01.2014 -] ZRR80..CBU |
57608-28290 |
US $133.95 |
||
|
57615A
|
57615A
57615-28100 Member, Rear Floor Side, Rear Rh[01.2014 -] ZRR8#,ZWR80 |
57615-28100 |
US $66.73 |
||
|
57616A
|
57616A
57616-28070 Member, Rear Floor Side, Rear Lh[01.2014 -] ZRR8#,ZWR80 |
57616-28070 |
US $66.73 |
||
|
57645
|
57645
57645-28080 Reinforcement, Rear Side Member, Rh[01.2014 -] ZRR8#,ZWR80 |
57645-28080 |
US $46.36 |
||
|
57646A
|
57646A
57646-28070 Reinforcement, Rear Side Member, Lh[01.2014 -] ZRR8#,ZWR80 |
57646-28070 |
US $68.10 |
||
|
57653D
|
57653D
57005-28220 Member, Rear Floor Cross, No.2[01.2014 -] ZRR80,ZWR80..07S |
57005-28220 |
US $200.93 |
||
|
57654A
|
57654A
57063-28030 Member, Rear Floor Cross, No.3[01.2014 -] ZRR8#,ZWR80..07S..CBU |
57063-28030 |
US $88.82 |
||
|
58032B
|
58032B
58032-28010 Panel Sub-Assy, Rear Floor, Center[01.2014 - 06.2017] ZRR8#,ZWR80..CBU |
58032-28010 |
US $75.71 |
||
|
58033A
|
58033A
58033-28020 Reinforce Sub-Assy, Body Lower Back, Rh[01.2014 - 06.2017] ZRR8#,ZWR80..CBU |
58033-28020 |
US $57.08 |
||
|
58034B
|
58034B
58034-28020 Reinforce Sub-Assy, Body Lower Back, Lh[01.2014 - 06.2017] ZRR8#,ZWR80..CBU |
58034-28020 |
US $102.12 |
||
|
58307
|
58307
58307-28160
Panel Sub-Assy, Body Lower Back
[01.2014 -] ZRR8#,ZWR80..CBU |
58307-28160 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-28161 Panel Sub-Assy, Body Lower Back[01.2014 -] ZRR8#,ZWR80..CBU |
58307-28161 |
US $338.80 |
||
|
58308
|
58308
58308-28050 Panel Sub-Assy, Body Lower Back, Inner[01.2014 -] ZRR8#,ZWR80..CBU |
58308-28050 |
US $194.40 |
||
|
58371B
|
58371B
58302-28120 Panel, Body Lower Back, Outer[01.2014 -] ZRR8#,ZWR80..CBU |
58302-28120 |
US $208.08 |
||
|
58385H
|
58385H
58386-12020 Bracket, Rear Bumper Cover, No.1[01.2014 - 06.2017] ZRR8#,ZWR80..CBU |
58386-12020 |
US $7.20 |
||
|
58386B
|
58386B
58386-28050 Bracket, Rear Bumper Cover, No.2[01.2014 - 06.2017] ZRR8#,ZWR80..CBU |
58386-28050 |
US $5.60 |
||
|
66383B
|
66383B
66383-28020 Bracket, Rope Hook, No.1 Rh[01.2014 -] ZRR8#,ZWR80 |
66383-28020 |
US $10.24 |
||
|
66393
|
66393
66393-28030 Bracket, Rope Hook, No.1 Lh[01.2014 -] ZRR8#,ZWR80 |
66393-28030 |
US $10.24 |
||
|
9010906375
|
9010906375
90109-06375 BOLT |
90109-06375 |
from US $0.78 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
