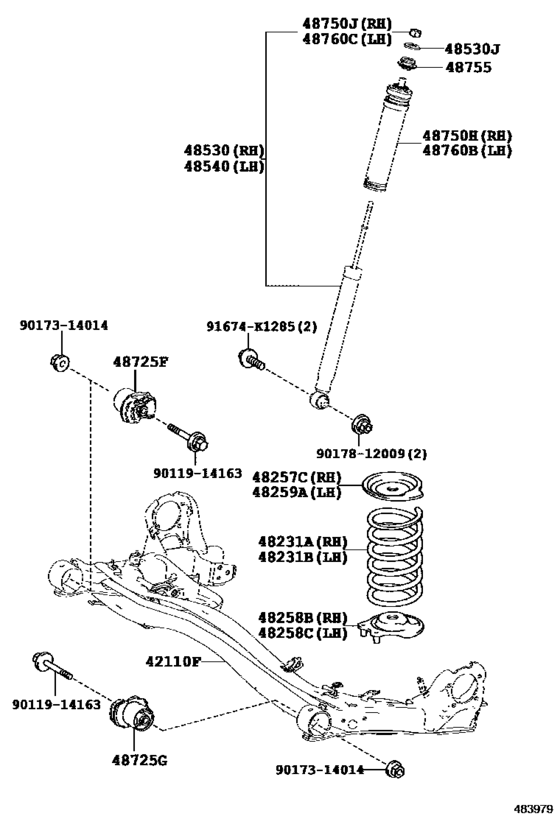

Rear Spring & Shock Absorber ([01.2014 - ] (1401- )CBU) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42101-28470 Beam Assy, Rear Axle[01.2014 -] ZRR8#,ZWR80 |
42101-28470 |
US $889 |
||
|
48231A
|
48231A
48231-28C31 Spring, Coil, Rear Rh[01.2014 -] ZRR80..CBU |
48231-28C31 |
US $99.16 |
||
|
48231B
|
48231B
48231-28C31 Spring, Coil, Rear Rh[01.2014 -] ZRR80..CBU |
48231-28C31 |
US $99.16 |
||
|
48257C
|
48257C
48257-28070 Insulator, Rear Coil Spring, Upper Rh[01.2014 -] ZRR8#,ZWR80..CBU |
48257-28070 |
from US $8.32 |
||
|
48258B
|
48258B
48258-28050 Insulator, Rear Coil Spring, Lower Rh[01.2014 -] ZRR8#,ZWR80..CBU |
48258-28050 |
from US $9.44 |
||
|
48258C
|
48258C
48258-28050 Insulator, Rear Coil Spring, Lower Rh[01.2014 -] ZRR8#,ZWR80..CBU |
48258-28050 |
from US $9.44 |
||
|
48259A
|
48259A
48257-28070 Insulator, Rear Coil Spring, Upper Rh[01.2014 -] ZRR8#,ZWR80..CBU |
48257-28070 |
from US $8.32 |
||
|
48530
|
48530
48531-80784
Absorber Assy, Shock, Rear
[01.2014 -] ZRR80..(G,GI,V,X,XI)..CBU マーク ４８５３１−２８７７０ |
48531-80784 |
— | ||
| replacement | |||||
|
48530
|
48530
48531-80785 Absorber Assy, Shock, Rear[01.2014 -] ZRR80..(G,GI,V,X,XI)..CBU マーク ４８５３１−２８７７０ |
48531-80785 |
US $137.64 |
||
|
48530J
|
48530J
90948-02192 Retainer, Cushion, No.1(For Rear Shock Absorber)[01.2014 -] ZRR8#,ZWR80 |
90948-02192 |
from US $4.48 |
||
|
48540
|
48540
48531-80784
Absorber Assy, Shock, Rear
[01.2014 -] ZRR80..(G,GI,V,X,XI)..CBU マーク ４８５３１−２８７７０ |
48531-80784 |
— | ||
| replacement | |||||
|
48540
|
48540
48531-80785 Absorber Assy, Shock, Rear[01.2014 -] ZRR80..(G,GI,V,X,XI)..CBU マーク ４８５３１−２８７７０ |
48531-80785 |
US $137.64 |
||
|
48725F
|
48725F
48725-28080 Bush, Rear Axle Carrier[01.2014 -] ZRR8#,ZWR80 |
48725-28080 |
from US $44.08 |
||
|
48725G
|
48725G
48725-28080 Bush, Rear Axle Carrier[01.2014 -] ZRR8#,ZWR80 |
48725-28080 |
from US $44.08 |
||
|
48750H
|
48750H
48750-28020 Support Assy, Rear Suspension, Rh[01.2014 - 11.2015] ZRR8#,ZWR80..CBU |
48750-28020 |
US $27.52 |
||
|
48750H
|
48750H
48750-28021 Support Assy, Rear Suspension, Rh[11.2015 -] ZRR8#,ZWR80..CBU |
48750-28021 |
US $28.12 |
||
|
48750J
|
48750J
90177-12002 Nut[01.2014 -] ZRR8#,ZWR80 |
90177-12002 |
US $1.44 |
||
|
48755
|
48755
48755-28020 Support, Rear Suspension[01.2014 - 11.2015] ZRR8#,ZWR80 |
48755-28020 |
US $13.12 |
||
|
48755
|
48755
90905-40019 Cushion, Rear Shock Absorber, No.1[11.2015 -] ZRR8#,ZWR80 |
90905-40019 |
from US $7.84 |
||
|
48760B
|
48760B
48750-28020 Support Assy, Rear Suspension, Rh[01.2014 - 11.2015] ZRR8#,ZWR80..CBU |
48750-28020 |
US $27.52 |
||
|
48760B
|
48760B
48750-28021 Support Assy, Rear Suspension, Rh[11.2015 -] ZRR8#,ZWR80..CBU |
48750-28021 |
US $28.12 |
||
|
48760C
|
48760C
90177-12002 Nut[01.2014 -] ZRR8#,ZWR80 |
90177-12002 |
US $1.44 |
||
|
91674K1285
|
91674K1285
91674-K1285 New Genuine Part |
91674-K1285 |
US $5.44 |
||
|
9011914163
|
9011914163
90119-14163 New Genuine Part |
90119-14163 |
US $7.84 |
||
|
9017314014
|
9017314014
90173-14014 New Genuine Part |
90173-14014 |
US $2.56 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
