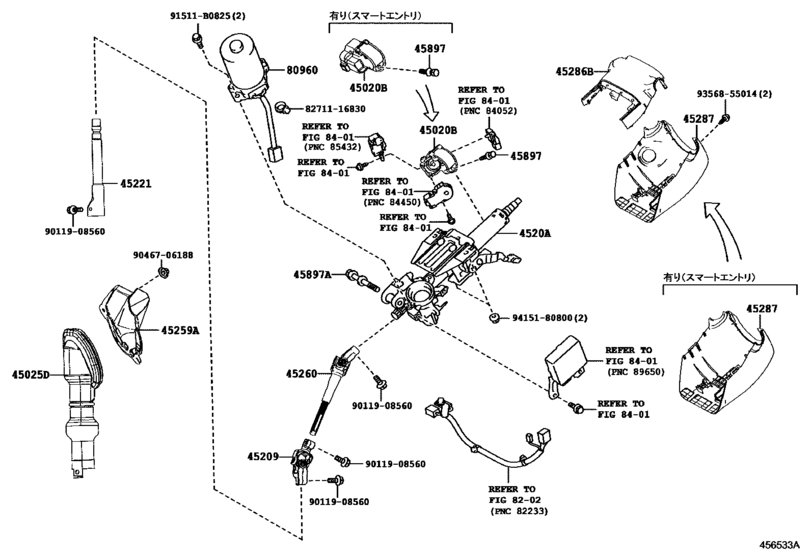

Steering Column & Shaft ([01.2014 - ] (1401- )ZRR80..G,GI,V,X,XI) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- GI
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4520A
|
4520A
4520A-28101 Column Sub-Assy, Electric Power Steering[01.2014 - 12.2015] ZRR80..G,GI,V; ZRR80..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）; ZRR80..(X,XI)..IV5 スマートエントリ−有り（ドア＆スロープ） |
4520A-28101 |
US $719.26 |
||
| replacement | |||||
|
4520A
|
4520A
4520A-28102 Column Sub-Assy, Electric Power Steering[01.2014 - 12.2015] ZRR80..G,GI,V; ZRR80..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）; ZRR80..(X,XI)..IV5 スマートエントリ−有り（ドア＆スロープ） |
4520A-28102 |
US $679.74 |
||
|
4520A
|
4520A
4520A-28102 Column Sub-Assy, Electric Power Steering[01.2016 -] ZRR80..G,GI,V; ZRR80..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）; ZRR80..(X,XI)..IV5 スマートエントリ−有り（ドア＆スロープ） |
4520A-28102 |
US $679.74 |
||
|
45020B
|
45020B
45020-30B20 Actuator Assy, Steering Lock[01.2014 -] ZRR8#..G,GI,SI,V,ZS; ZRR8#..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）; ZRR8#..(X,XI)..IV5 スマートエントリ−有り（ドア＆スロープ） |
45020-30B20 |
from US $205.92 |
||
|
45025D
|
45025D
45025-28110 Cover Sub-Assy, Steering Column Hole, No.1[01.2014 -] ZRR80,ZWR80 |
45025-28110 |
US $28.54 |
||
|
45209
|
45209
45209-28070 Yoke Sub-Assy, Steering Sliding[01.2014 -] ZRR80..G,GI,V,X,XI |
45209-28070 |
US $131.04 |
||
|
45221
|
45221
45221-28150 Shaft, Steering Intermediate[01.2014 -] ZRR8#,ZWR80 |
45221-28150 |
US $128.76 |
||
|
45259A
|
45259A
45259-28050 Sheet, Column Hole Cover Silencer[01.2014 -] ZRR8#,ZWR80 |
45259-28050 |
US $13.69 |
||
|
45260
|
45260
45260-28150 Shaft Assy, Steering Intermediate, No.2[01.2014 -] ZRR80..G,GI,V,X,XI |
45260-28150 |
US $145.44 |
||
|
45286B
|
45286B
45286-28380-C0 Cover, Steering Column, Upr[01.2014 - 01.2015] ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2#; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
45286-28380-C0 |
US $20.09 |
||
| replacement | |||||
|
45286B
|
45286B
45286-28381-C0 Cover, Steering Column, Upr[01.2014 - 01.2015] ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2#; ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
45286-28381-C0 |
US $17.65 |
||
|
45286B
|
45286B
45286-28381-C0 Cover, Steering Column, Upr[02.2015 -] ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2#; ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
45286-28381-C0 |
US $17.65 |
||
|
45287
|
45287
45024-28020-C0 Cover, Steering Column, Lwr[01.2016 -] ZRR8#..G;ZWR80..NOAH..(G,X) BLACK,TRIM0#,2#; ZWR80..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2#; ZRR8#..NOAH..X..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM0#,2#; ZRR8#..(ESQIR,VOXY)..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM2#; ZR |
45024-28020-C0 |
US $32.79 |
||
|
45287
|
45287
45287-28490-C0 Cover, Steering Column, Lwr[01.2014 - 01.2015] ZRR8#..G;ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2#; ZRR8#..VOXY..X..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM2#; ZRR8#..(ESQIR,NOAH)..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK, |
45287-28490-C0 |
US $36.84 |
||
| replacement | |||||
|
45287
|
45287
45024-28020-C0 Cover, Steering Column, Lwr[01.2014 - 01.2015] ZRR8#..G;ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2#; ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2#; ZRR8#..VOXY..X..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM2#; ZRR8#..(ESQIR,NOAH)..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK, |
45024-28020-C0 |
US $32.79 |
||
|
45287
|
45287
45287-28491-C0 Cover, Steering Column, Lwr[02.2015 - 01.2016] ZRR8#..G;ZWR80..NOAH BLACK,TRIM0#,2#; ZRR8#..GI,SI,V,ZS;ZWR80..ESQIR,VOXY BLACK,TRIM2#; ZRR8#..NOAH..X..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM0#,2#; ZRR8#..(ESQIR,VOXY)..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM2#; ZRR8#..NOAH..X..IV5 |
45287-28491-C0 |
US $36.84 |
||
| replacement | |||||
|
45287
|
45287
45024-28020-C0 Cover, Steering Column, Lwr[02.2015 - 01.2016] ZRR8#..G;ZWR80..NOAH BLACK,TRIM0#,2#; ZRR8#..GI,SI,V,ZS;ZWR80..ESQIR,VOXY BLACK,TRIM2#; ZRR8#..NOAH..X..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM0#,2#; ZRR8#..(ESQIR,VOXY)..(X,XI)..CBU スマートエントリ−有り（ドア＆バックドア）,BLACK,TRIM2#; ZRR8#..NOAH..X..IV5 |
45024-28020-C0 |
US $32.79 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[01.2014 -] ZRR8# |
45897-12020 |
from US $2.89 |
||
|
45897A
|
45897A
90119-10981 Bolt, Tilt Steering Pawl Set[01.2014 -] ZRR8#,ZWR80 |
90119-10981 |
from US $1.64 |
||
|
80960
|
80960
80960-28100 Motor Assy, Power Steering[01.2014 -] ZRR80..G,GI,V,X,XI |
80960-28100 |
US $262.08 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
8271116830
|
8271116830
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
US $1.60 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.56 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
