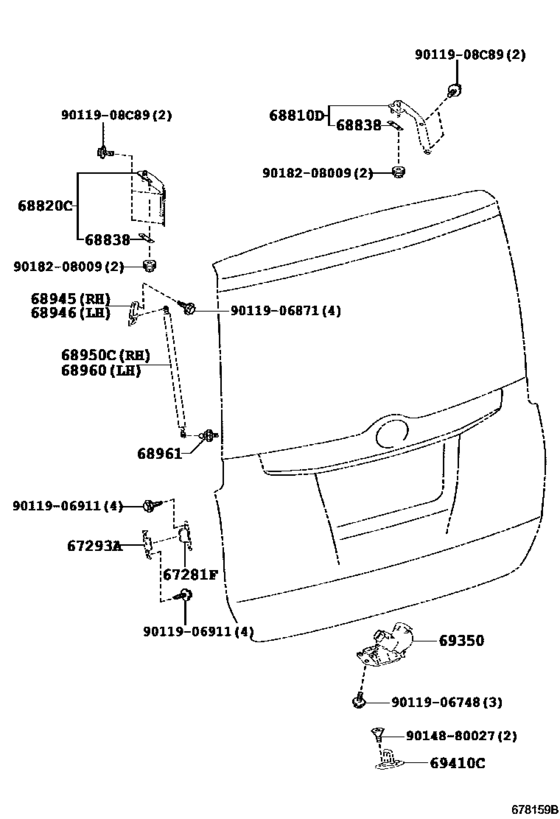

Back Door Lock & Hinge ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- NOAH
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
- Driver's Position
- RHD
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67281F
|
67281F
67281-28020 Stopper, Back Door, Lower[01.2014 -] ZRR80..NOAH |
67281-28020 |
US $19 |
||
|
67293A
|
67293A
67293-28040 Cushion, Back Door Stopper[01.2014 -] ZRR80..NOAH |
67293-28040 |
US $12.16 |
||
|
68810D
|
68810D
68810-28050 Hinge Assy, Back Door, Rh[01.2014 -] ZRR80..NOAH |
68810-28050 |
US $50.16 |
||
|
68820C
|
68820C
68820-28040 Hinge Assy, Back Door, Lh[01.2014 -] ZRR80..NOAH |
68820-28040 |
US $50.16 |
||
|
68838
|
68838
68838-28020 Pad, Back Door Hinge, No.1[01.2014 -] ZRR80..NOAH T=1.0 |
68838-28020 |
US $1.44 |
||
|
68945
|
68945
68945-28030 Bracket, Back Door Damper Stay, Upper Rh[01.2014 -] ZRR80..NOAH |
68945-28030 |
US $10.08 |
||
|
68946
|
68946
68946-28020 Bracket, Back Door Damper Stay, Upper Lh[01.2014 -] ZRR80..NOAH |
68946-28020 |
US $10.08 |
||
|
68950C
|
68950C
68950-0W600
Stay Assy, Back Door, Rh
[01.2014 -] ZRR80..NOAH |
68950-0W600 |
— | ||
|
68960
|
68960
68960-0W680
Stay Assy, Back Door, Lh
[01.2014 -] ZRR80..NOAH |
68960-0W680 |
— | ||
| replacements | |||||
|
68960
|
68960
689600WF10 Stay Assy, Back Door, Lh[01.2014 -] ZRR80..NOAH |
689600WF10 |
US $124.32 |
||
|
68960
|
68960
68946-28030 Bracket, Back Door Damper Stay, Upper Lh[01.2014 -] ZRR80..NOAH |
68946-28030 |
US $7.04 |
||
|
68961
|
68961
68961-20140 Bolt, Back Door Stay[01.2014 -] ZRR80..NOAH |
68961-20140 |
US $4.48 |
||
|
69350
|
69350
69350-28170 Lock Assy, Back Door[01.2014 - 01.2017] ZRR80..NOAH |
69350-28170 |
US $130.24 |
||
|
69350
|
69350
69350-58040 Lock Assy, Back Door[01.2017 -] ZRR80..NOAH |
69350-58040 |
US $130.24 |
||
|
69410C
|
69410C
69410-60030 Plate Assy, Front Door Lock Striker[01.2014 -] ZRR80..NOAH |
69410-60030 |
from US $16.11 |
||
|
9011908C89
|
9011908C89
90119-08C89 BOLT WWASHER |
90119-08C89 |
US $1.28 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.76 |
||
|
9011906871
|
9011906871
90119-06871 BOLT WWASHER |
90119-06871 |
US $0.96 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9018208009
|
9018208009
90182-08009 NUT WWASHER |
90182-08009 |
from US $1.13 |
||
