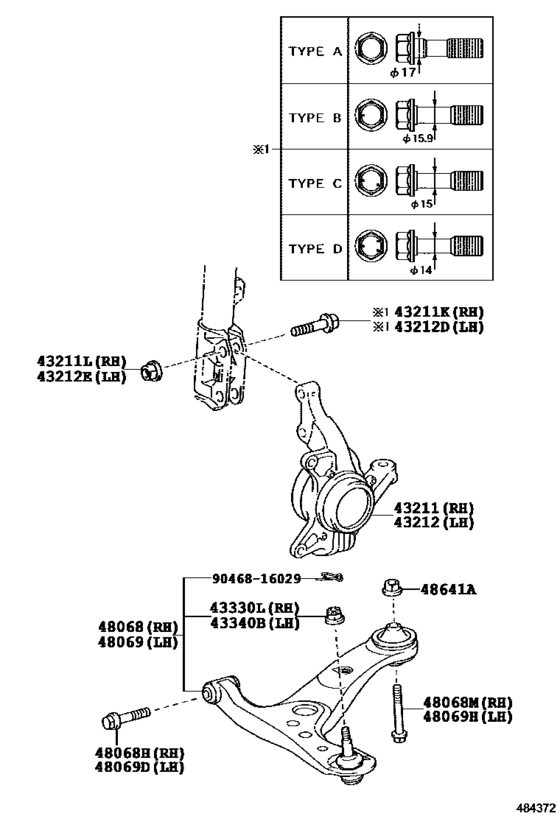

Front Axle Arm & Steering Knuckle ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- NOAH
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
- Driver's Position
- RHD
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-44040 Knuckle, Steering, Rh[01.2014 -] ZRR80..NOAH |
43211-44040 |
US $198.72 |
||
|
43211K
|
43211K
90105-17008 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=17,TYPE A:REFER ILLUST. |
90105-17008 |
from US $4.06 |
||
|
43211K
|
43211K
90105-17013 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=15.9,TYPE B:REFER ILLUST. |
90105-17013 |
from US $4.08 |
||
|
43211K
|
43211K
90105-17014 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=15,TYPE C:REFER ILLUST. |
90105-17014 |
from US $3.90 |
||
|
43211K
|
43211K
90105-17015 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=14,TYPE D:REFER ILLUST. |
90105-17015 |
from US $3.35 |
||
|
43211L
|
43211L
90178-17002 Nut (For Rear Axle Carrier Rh)[01.2014 -] ZRR80..NOAH |
90178-17002 |
from US $1.66 |
||
|
43212
|
43212
43212-44040 Knuckle, Steering, Lh[01.2014 -] ZRR80..NOAH |
43212-44040 |
US $198.72 |
||
|
43212D
|
43212D
90105-17008 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=17,TYPE A:REFER ILLUST. |
90105-17008 |
from US $4.06 |
||
|
43212D
|
43212D
90105-17013 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=15.9,TYPE B:REFER ILLUST. |
90105-17013 |
from US $4.08 |
||
|
43212D
|
43212D
90105-17014 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=15,TYPE C:REFER ILLUST. |
90105-17014 |
from US $3.90 |
||
|
43212D
|
43212D
90105-17015 Bolt (For Steering Knuckle Rh)[01.2014 -] ZRR80..NOAH OD=14,TYPE D:REFER ILLUST. |
90105-17015 |
from US $3.35 |
||
|
43212E
|
43212E
90178-17002 Nut (For Rear Axle Carrier Rh)[01.2014 -] ZRR80..NOAH |
90178-17002 |
from US $1.66 |
||
|
43330L
|
43330L
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[01.2014 -] ZRR80..NOAH |
90171-14011 |
from US $1.31 |
||
|
43340B
|
43340B
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[01.2014 -] ZRR80..NOAH |
90171-14011 |
from US $1.31 |
||
|
48068
|
48068
48068-29255 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[01.2014 -] ZRR80..X |
48068-29255 |
from US $267.84 |
||
|
48068H
|
48068H
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2014 -] ZRR80..NOAH |
90119-14086 |
from US $3.45 |
||
|
48068M
|
48068M
90119-14161 Bolt(For Front Suspension Lower Arm No.2 Rh)[01.2014 -] ZRR80..NOAH |
90119-14161 |
US $6.40 |
||
|
48069
|
48069
48069-29255 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[01.2014 -] ZRR80..X |
48069-29255 |
from US $267.84 |
||
|
48069D
|
48069D
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2014 -] ZRR80..NOAH |
90119-14086 |
from US $3.45 |
||
|
48069H
|
48069H
90119-14161 Bolt(For Front Suspension Lower Arm No.2 Rh)[01.2014 -] ZRR80..NOAH |
90119-14161 |
US $6.40 |
||
|
48641A
|
48641A
90179-14068 Nut(For Front Suspension Lower Arm)[01.2014 -] ZRR80..NOAH |
90179-14068 |
from US $1.21 |
||
|
9046816029
|
9046816029
90468-16029 CLIP |
90468-16029 |
from US $0.64 |
