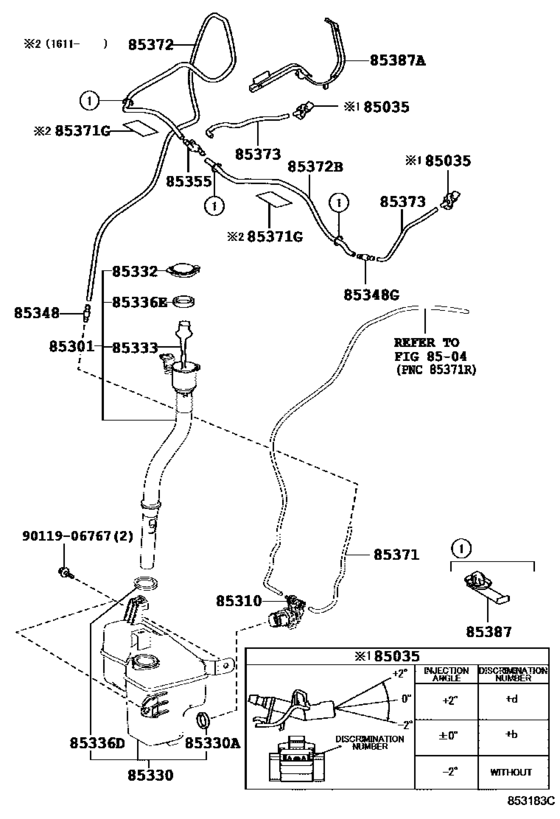

Windshield Washer ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- NOAH
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
- Driver's Position
- RHD
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-30220 Nozzle Sub-Assy, Washer[01.2014 -] ZRR80..NOAH ANGLE 0 |
85381-30220 |
from US $9.43 |
||
|
85035
|
85035
85381-30230 Nozzle Sub-Assy, Washer[01.2014 -] ZRR80..NOAH ANGLE -2 |
85381-30230 |
US $14.53 |
||
|
85035
|
85035
85381-30240 Nozzle Sub-Assy, Washer[01.2014 -] ZRR80..NOAH ANGLE +2 |
85381-30240 |
from US $7.69 |
||
|
85301
|
85301
85301-28110 Inlet Sub-Assy, Washer[01.2014 -] ZRR80..NOAH |
85301-28110 |
US $16.11 |
||
|
85310
|
85310
85330-12350
Motor And Pump Assy, Windshield Washer
[01.2014 -] ZRR80..NOAH |
85330-12350 |
— | ||
|
85330
|
85330
85315-28340 Jar Assy, Windshield Washer[01.2014 -] ZRR80..NOAH |
85315-28340 |
US $60.65 |
||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[01.2014 -] ZRR80..NOAH |
85336-60300 |
from US $1.92 |
||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[01.2014 -] ZRR80..NOAH |
85316-16070 |
from US $1.75 |
||
|
85333
|
85333
85312-47020 Filter, Windshield Washer JarWINDSHIELD WASHER JAR [01.2014 -] ZRR80..NOAH |
85312-47020 |
US $11.95 |
||
|
85336D
|
85336D
85336-30160 Bush, Windshield Washer Jar[01.2014 -] ZRR80..NOAH |
85336-30160 |
from US $3.32 |
||
|
85336E
|
85336E
85336-42320 Packing, Windshield Washer Jar[01.2014 -] ZRR80..NOAH |
85336-42320 |
US $1.27 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[01.2014 -] ZRR80..NOAH |
85349-89122 |
from US $1.25 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[01.2014 -] ZRR80..NOAH |
85349-89122 |
from US $1.25 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[01.2014 -] ZRR80..NOAH |
85321-28020 |
from US $10.65 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2014 -] ZRR80..NOAH *H,L=325 |
90099-33080 |
US $9.43 |
||
|
85371G
|
85371G
85389-28A60 Protector, Front Washer[11.2016 -] ZRR80..NOAH |
85389-28A60 |
US $7.04 |
||
|
85372
|
85372
90099-33803 Hose, Windshield Washer (From Joint To Joint), No.1[01.2014 - 03.2014] ZRR80..NOAH *H,L=1510 |
90099-33803 |
from US $8 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2014 -] ZRR80..NOAH *H,L=580 |
90099-33080 |
US $9.43 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2014 -] ZRR80..NOAH *H,L=220 |
90099-33080 |
US $9.43 |
||
|
85387
|
85387
82711-52090 Clamp[01.2014 -] ZRR80..NOAH |
82711-52090 |
from US $0.96 |
||
|
85387A
|
85387A
85387-28A60 Clamp, Washer, No.2[01.2014 -] ZRR80..NOAH |
85387-28A60 |
US $8 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
