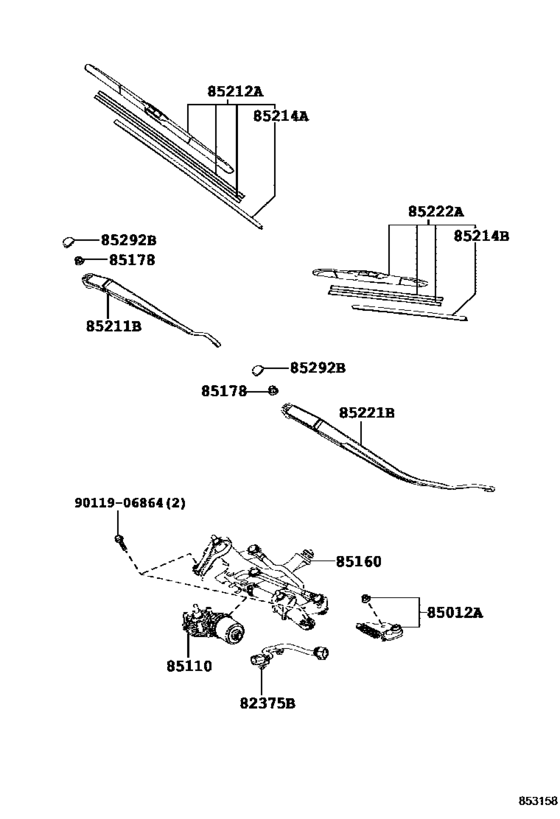

Windshield Wiper ([01.2014 - ] (1401- )) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- ZRR80
- grade
- X
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- NOAH
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 08S
- Vehicle Model
- NOAH
- Driver's Position
- RHD
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-28020 Wire, Wiper Motor[01.2014 -] ZRR80..NOAH |
82375-28020 |
US $18.24 |
||
|
85012A
|
85012A
85012-50010 Crank Sub-Assy, Front Wiper[01.2014 -] ZRR80..NOAH |
85012-50010 |
US $31.14 |
||
|
85110
|
85110
85110-28240 Motor Assy, Windshield Wiper[01.2014 - 06.2014] ZRR80..NOAH |
85110-28240 |
US $281.01 |
||
| replacement | |||||
|
85110
|
85110
85110-28241 Motor Assy, Windshield Wiper[01.2014 - 06.2014] ZRR80..NOAH |
85110-28241 |
US $292.60 |
||
|
85110
|
85110
85110-28241 Motor Assy, Windshield Wiper[07.2014 -] ZRR80..NOAH |
85110-28241 |
US $292.60 |
||
|
85160
|
85160
85150-28220 Link Assy, Windshield Wiper[01.2014 - 09.2014] ZRR80..NOAH |
85150-28220 |
US $91.73 |
||
| replacement | |||||
|
85160
|
85160
85150-28221 Link Assy, Windshield Wiper[01.2014 - 09.2014] ZRR80..NOAH |
85150-28221 |
US $100.64 |
||
|
85160
|
85160
85150-28221 Link Assy, Windshield Wiper[10.2014 -] ZRR80..NOAH |
85150-28221 |
US $100.64 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[01.2014 -] ZRR80..NOAH |
90182-10006 |
US $1.28 |
||
|
85211B
|
85211B
85211-28210
Arm, Front Wiper, Rh
[01.2014 - 11.2014] ZRR80 |
85211-28210 |
— | ||
| replacement | |||||
|
85211B
|
85211B
85211-28212 Arm, Front Wiper, Rh[01.2014 - 11.2014] ZRR80 |
85211-28212 |
US $44.99 |
||
|
85211B
|
85211B
85211-28211
Arm, Front Wiper, Rh
[12.2014 - 06.2015] ZRR80 |
85211-28211 |
— | ||
| replacement | |||||
|
85211B
|
85211B
85211-28212 Arm, Front Wiper, Rh[12.2014 - 06.2015] ZRR80 |
85211-28212 |
US $44.99 |
||
|
85211B
|
85211B
85211-28212 Arm, Front Wiper, Rh[07.2015 - 03.2017] ZRR80 |
85211-28212 |
US $44.99 |
||
|
85211B
|
85211B
85211-28213 Arm, Front Wiper, Rh[03.2017 - 06.2017] ZRR80 |
85211-28213 |
US $55.94 |
||
|
85212A
|
85212A
85212-28200
Blade, Fr Wiper, Rh
[07.2015 - 04.2017] ZRR80 |
85212-28200 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-28201 Blade, Fr Wiper, Rh[07.2015 - 04.2017] ZRR80 |
85212-28201 |
US $70.22 |
||
|
85212A
|
85212A
85212-28201 Blade, Fr Wiper, Rh[04.2017 - 06.2017] ZRR80 |
85212-28201 |
US $70.22 |
||
|
85212A
|
85212A
85212-52240 Blade, Fr Wiper, Rh[01.2014 - 06.2015] ZRR80 |
85212-52240 |
US $70.22 |
||
| replacement | |||||
|
85212A
|
85212A
85212-28200
Blade, Fr Wiper, Rh
[01.2014 - 06.2015] ZRR80 |
85212-28200 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-28201 Blade, Fr Wiper, Rh[01.2014 - 06.2015] ZRR80 |
85212-28201 |
US $70.22 |
||
|
85214A
|
85214A
85214-28080 Rubber, Wiper, Rh[01.2014 - 04.2017] ZRR80 |
85214-28080 |
from US $14.40 |
||
|
85214A
|
85214A
85214-28100 Rubber, Wiper, Rh[04.2017 - 06.2017] ZRR80 |
85214-28100 |
US $12.38 |
||
|
85214B
|
85214B
85214-28110 Rubber, Wiper, Lh[04.2017 - 06.2017] ZRR80 |
85214-28110 |
US $10.32 |
||
|
85214B
|
85214B
85214-68030 Rubber, Wiper, Lh[01.2014 - 04.2017] ZRR80 |
85214-68030 |
from US $7.29 |
||
|
85221B
|
85221B
85221-28170 Arm, Front Wiper, Lh[01.2014 - 03.2017] ZRR80 |
85221-28170 |
US $57.80 |
||
|
85221B
|
85221B
85221-28171 Arm, Front Wiper, Lh[03.2017 - 06.2017] ZRR80 |
85221-28171 |
US $71.74 |
||
|
85222A
|
85222A
85222-28200
Blade, Fr Wiper, Lh
[01.2014 - 04.2017] ZRR80 |
85222-28200 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-28201 Blade, Fr Wiper, Lh[01.2014 - 04.2017] ZRR80 |
85222-28201 |
US $22.50 |
||
|
85222A
|
85222A
85222-28201 Blade, Fr Wiper, Lh[04.2017 - 06.2017] ZRR80 |
85222-28201 |
US $22.50 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[01.2014 -] ZRR80..NOAH |
85292-13010 |
from US $4 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
