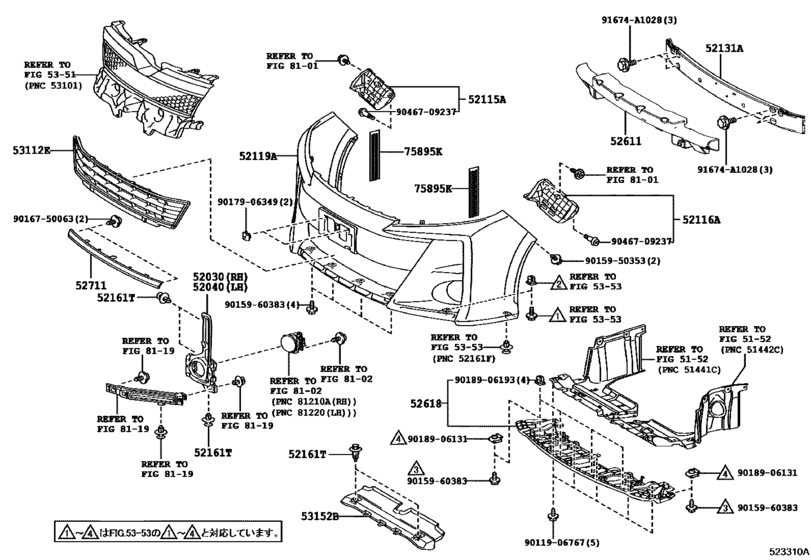

Front Bumper & Bumper Stay ([05.2016 - ] G'S (1605- )VOXY) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- ZS
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- VOXY
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- VOXY
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52030
|
52030
52030-28020 Cover Assy, Front Bumper Hole, Rh[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
52030-28020 |
US $69.92 |
||
|
52030
|
52030
52030-28050 Cover Assy, Front Bumper Hole, Rh[01.2014 -] ZRR8#,ZWR80..ZS |
52030-28050 |
US $121.36 |
||
|
52040
|
52040
52040-28020 Cover Assy, Front Bumper Hole, Lh[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
52040-28020 |
US $55.21 |
||
|
52040
|
52040
52040-28050 Cover Assy, Front Bumper Hole, Lh[01.2014 -] ZRR8#,ZWR80..ZS |
52040-28050 |
US $121.36 |
||
|
52115A
|
52115A
52115-28250
Support, Front Bumper Side, Rh
[01.2014 - 02.2014] ZRR8#..ZS |
52115-28250 |
— | ||
| replacement | |||||
|
52115A
|
52115A
52115-28251 Support, Front Bumper Side, Rh[01.2014 - 02.2014] ZRR8#..ZS |
52115-28251 |
US $57.61 |
||
|
52115A
|
52115A
52115-28251 Support, Front Bumper Side, Rh[02.2014 -] ZRR8#,ZWR80..ZS |
52115-28251 |
US $57.61 |
||
|
52116A
|
52116A
52116-28230
Support, Front Bumper Side, Lh
[01.2014 - 02.2014] ZRR8#..ZS |
52116-28230 |
— | ||
| replacement | |||||
|
52116A
|
52116A
52116-28231 Support, Front Bumper Side, Lh[01.2014 - 02.2014] ZRR8#..ZS |
52116-28231 |
US $57.61 |
||
|
52116A
|
52116A
52116-28231 Support, Front Bumper Side, Lh[02.2014 -] ZRR8#,ZWR80..ZS |
52116-28231 |
US $57.61 |
||
|
52119A
|
52119A
52119-28J00-A0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..ZS WHITE PEARL CS.,070 |
52119-28J00-A0 |
US $1,105.68 |
||
|
52119A
|
52119A
52119-28J00-B0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..ZS SILVER ME.,1F7 |
52119-28J00-B0 |
US $1,105.68 |
||
| replacement | |||||
|
52119A
|
52119A
521192A919 Cover, Fr Bumper[01.2014 -] ZRR8#,ZWR80..ZS SILVER ME.,1F7 |
521192A919 |
US $683.20 |
||
|
52119A
|
52119A
52119-28J00-B1 Cover, Front Bumper[12.2014 - 07.2016] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ）,ICE TITANIUM M.M.,1H4 |
52119-28J00-B1 |
US $1,105.68 |
||
|
52119A
|
52119A
52119-28J00-C0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..ZS BLACK,202 |
52119-28J00-C0 |
US $1,105.68 |
||
|
52119A
|
52119A
52119-28J00-C1 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
52119-28J00-C1 |
US $1,105.68 |
||
|
52119A
|
52119A
52119-28J00-D0 Cover, Front Bumper[01.2014 -] ZRR8#,ZWR80..ZS DEEP RED M.M.,3R9 |
52119-28J00-D0 |
US $1,105.68 |
||
|
52119A
|
52119A
52119-28K80-A0 Cover, Front Bumper[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ,WHITE PEARL CS.,070 |
52119-28K80-A0 |
US $938 |
||
|
52119A
|
52119A
52119-28K80-B0 Cover, Front Bumper[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ,SILVER ME.,1F7 |
52119-28K80-B0 |
US $835.74 |
||
|
52119A
|
52119A
52119-28K80-C0 Cover, Front Bumper[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ,BLACK,202 |
52119-28K80-C0 |
US $938 |
||
|
52119A
|
52119A
52119-28K80-C1 Cover, Front Bumper[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ,BLACKISH AGEHA GF.,221 |
52119-28K80-C1 |
US $835.74 |
||
|
52119A
|
52119A
52119-28K80-D0 Cover, Front Bumper[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ,DEEP RED M.M.,3R9 |
52119-28K80-D0 |
US $835.74 |
||
|
52131A
|
52131A
52131-28170 Reinforcement, Front Bumper[01.2014 -] ZRR8#,ZWR80 |
52131-28170 |
US $156.96 |
||
|
52161T
|
52161T
52161-16010 Clip[01.2014 -] ZRR8#,ZWR80 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161T
|
52161T
52161-0K040 Clip[01.2014 -] ZRR8#,ZWR80 |
52161-0K040 |
from US $1.50 |
||
|
52161T
|
52161T
52161-02020 Clip[01.2014 -] ZRR8#,ZWR80 |
52161-02020 |
US $5.27 |
||
|
52611
|
52611
52611-28110 Absorber, Front Bumper Energy[01.2014 -] ZRR8#,ZWR80 |
52611-28110 |
US $124.32 |
||
|
52618
|
52618
52618-28030 Absorber, Front Bumper, Lower[01.2014 -] ZRR8#,ZWR80 |
52618-28030 |
US $127.28 |
||
|
52711
|
52711
52711-28190 Moulding, Front Bumper[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
52711-28190 |
US $96.20 |
||
|
53112E
|
53112E
53112-28250 Grille, Radiator, Lower No.1[01.2014 -] ZRR8#,ZWR80..ZS |
53112-28250 |
US $142.08 |
||
|
53112E
|
53112E
53112-28300 Grille, Radiator, Lower No.1[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
53112-28300 |
US $113.52 |
||
|
53152B
|
53152B
53152-28060 Guide, Radiator Grille Air[01.2014 -] ZRR8#,ZWR80..SI,ZS |
53152-28060 |
US $61.10 |
||
|
75895K
|
75895K
75895-28010 Tape, Moulding, No.2[01.2014 -] ZRR8#,ZWR80 |
75895-28010 |
US $23.10 |
||
|
91674A1028
|
91674A1028
91674-A1028 BOLT FLANGE |
91674-A1028 |
from US $1.21 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.72 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9016750063
|
9016750063
90167-50063 SCREW PAN TAPPING |
90167-50063 |
from US $0.53 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.38 |
||
|
9018906131
|
9018906131
90189-06131 GROMMET SCREW |
90189-06131 |
from US $0.86 |
||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.80 |
||
|
9046709237
|
9046709237
90467-09237 Clip, Rear Bumper Side |
90467-09237 |
from US $0.90 |
||
